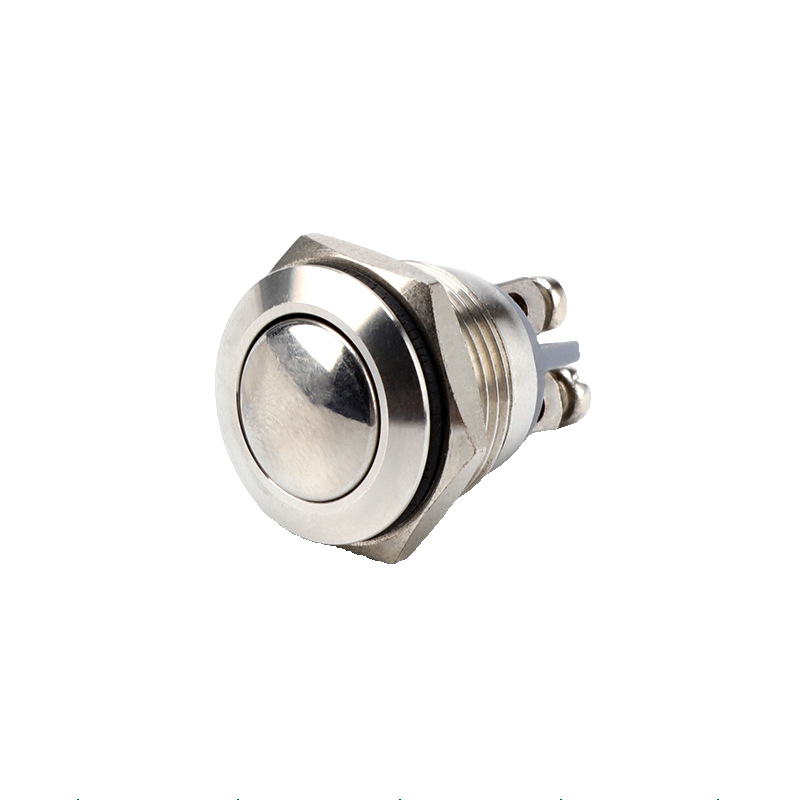

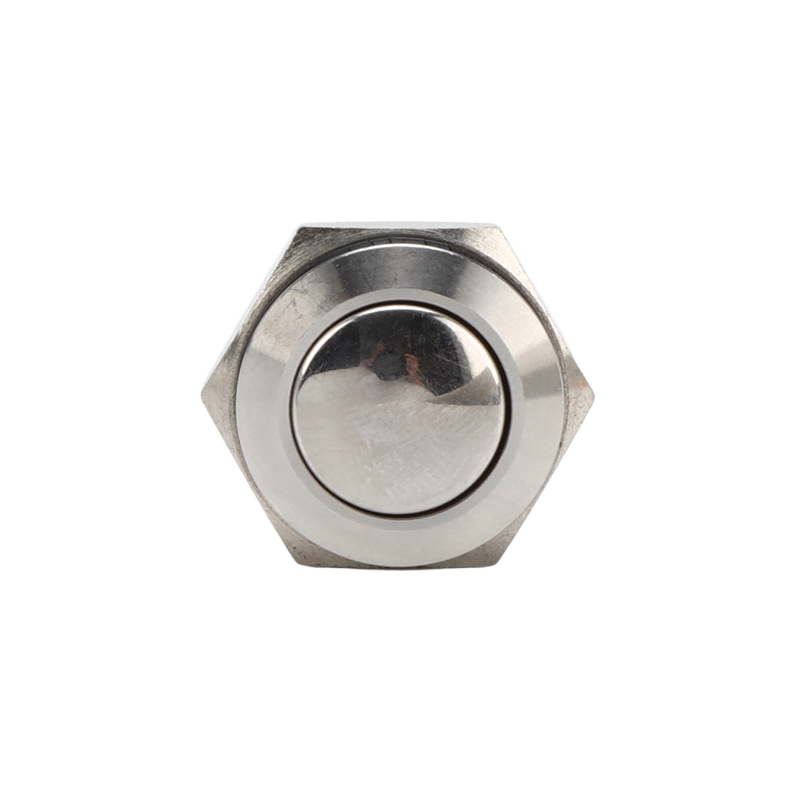

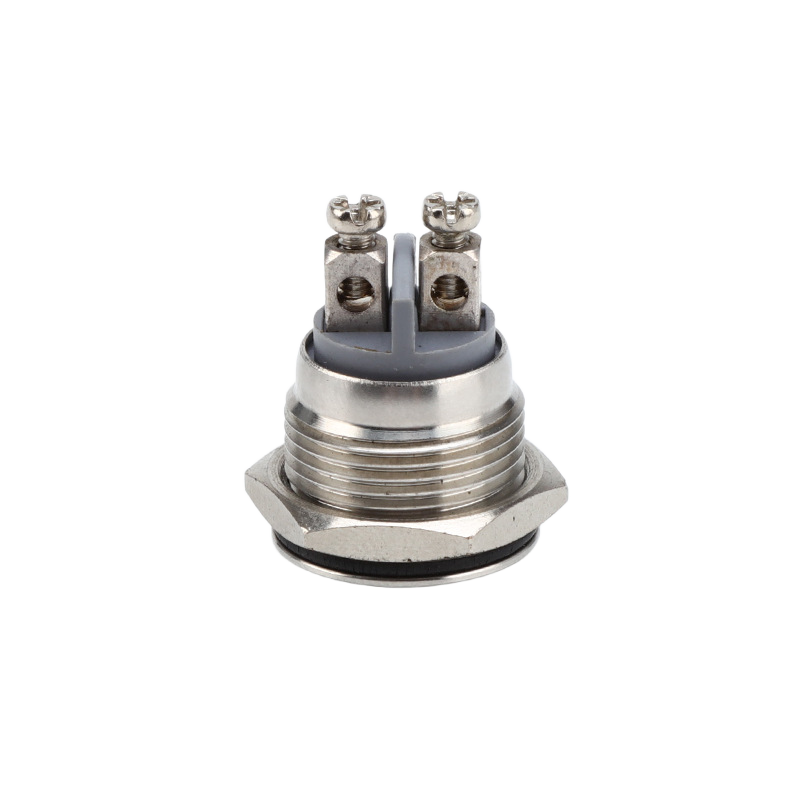

Key Features

• 16mm standard mounting hole size
• Ball knob design for comfortable operation
• Stainless steel housing for corrosion resistance
• Silver-plated contacts for excellent conductivity
• Waterproof protection grade IP65 / IP67
• 1NO (1 Normally Open) contact configuration
• Non-illuminated type
• Durable structure for long service life

Technical Specifications

Product Advantages

This 16mm ball knob metal push button switch is built with high-quality stainless steel for excellent durability and corrosion resistance. The silver-plated contacts ensure stable electrical conductivity and low contact resistance. With IP65/IP67 waterproof and dustproof protection, it performs reliably in harsh industrial environments. The ball knob head provides smooth and clear tactile feedback, making it ideal for control panels, equipment operation, and industrial automation systems.

Applications

• Industrial control panels
• Automation machinery
• Electronic equipment
• Medical devices
• Automotive controls
• New energy equipment
• Outdoor & damp environment devices

FAQ

1. What is the mounting hole size for this switch?
The standard mounting size is 16mm, suitable for most industrial control panels.

2. Is this switch waterproof?
Yes, it supports IP65 / IP67 waterproof and dustproof protection.

3. What contact configuration does it use?
It uses 1NO (1 Normally Open) contact type.

4. What material is the switch body made of?
The housing is made of stainless steel with good corrosion resistance.

The post 16mm Ball Knob Metal Switch with Silver-Plated Contacts Waterproof Stainless Steel 1NO Push Button appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• Three standard sizes: 16mm, 19mm, 22mm
• IP65 / IP67 waterproof & dustproof protection
• Screw terminal & pin terminal for flexible installation
• Momentary operation type
• Red, green, blue LED illuminated options
• High-quality metal housing for durability
• NO (Normally Open) contact configuration
• Gold/silver plated contacts for stable conductivity

Technical Specifications

Product Advantages

This 16/19/22mm waterproof metal push button switch is designed for reliable use in industrial environments. It provides IP65/IP67 waterproof and dustproof protection, suitable for humid, wet and outdoor equipment. The screw and pin terminal design makes installation fast and flexible. With gold/silver plated contacts and metal housing, it ensures long mechanical life and stable electrical performance. Ideal for control panels, automation machines, automotive and electronic equipment.

Applications

• Industrial control panels & cabinets
• Automation machinery & equipment
• Automotive & vehicle control systems
• Marine & outdoor electronic devices
• Household appliances & instrument panels
• Wet & harsh environment equipment

FAQ

1. What sizes does this push button support?
It supports 22mm and 25mm standard mounting sizes.

2. Is this switch waterproof?
Yes, it has IP67 high-level waterproof and dustproof protection.

3. Does it support maintained and momentary modes?
Yes, both maintained (latching) and momentary operation are optional.

4. What contact configuration does it use?
It uses 1NO + 1NC double contact structure.

5. Is it pre-wired for easy installation?
Yes, pre-wired design supports direct plug-and-play installation.

The post 16/19/22mm Waterproof Metal Push Button Switch Screw/Pin Terminal Momentary Red/Green/Blue Button appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

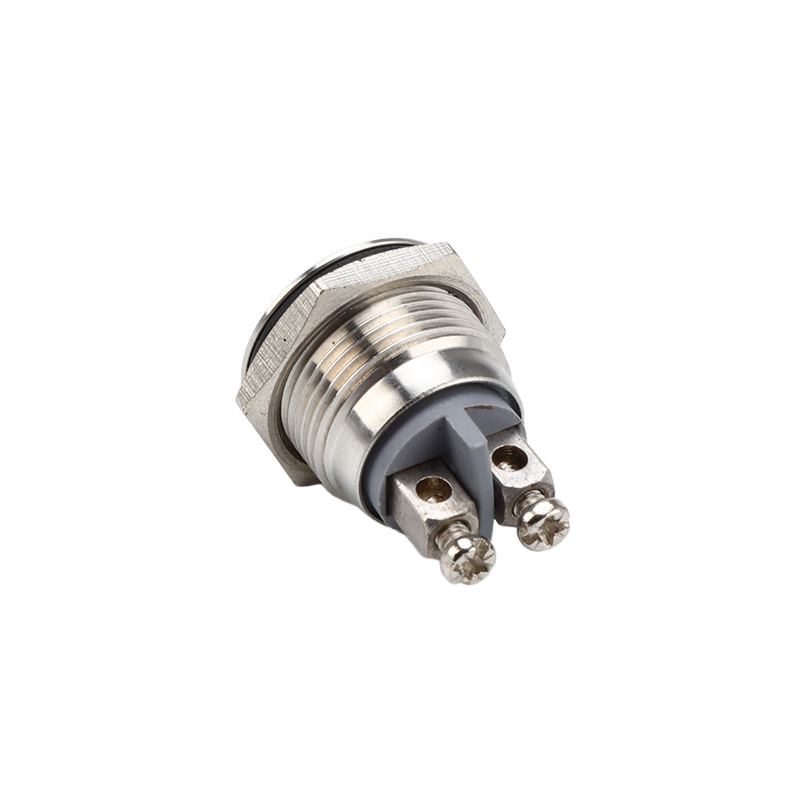

• Four sizes: 12mm, 16mm, 19mm, 22mm
• IP67 waterproof & dustproof protection
• Screw terminal for secure & easy wiring
• Three head types: High Round / Flat / Ball (Domed)
• Non-illuminated stable design
• Momentary (self-reset) operation
• NO (Normally Open) contact
• Silver-plated contacts for reliable conductivity
• Metal bezel & nickel plated brass housing
• Plug-in & screw connection optional

Technical Specifications

Product Advantages

This 12/16/19/22mm waterproof metal push button switch is designed for reliable industrial and outdoor use. IP67 waterproof rating ensures stable performance in humid, wet and dusty environments. Screw terminal provides firm wiring and easy installation. It offers three head styles (high round, flat, ball) to fit different panel designs. Non-illuminated structure reduces failure rate and extends service life. Momentary operation and silver-plated contacts ensure stable switching and long mechanical life.

Applications

• Industrial control panels & machinery
• Marine, boat & outdoor equipment
• Automotive & vehicle modification
• Waterproof power & signal control
• Equipment start/stop & operation systems
• Replacement for various panel switches

FAQ

1. What sizes are available?
12mm, 16mm, 19mm and 22mm standard mounting sizes.

2. Is this switch IP67 waterproof?
Yes, it has IP67 high-level waterproof and dustproof protection.

3. What connection type does it use?
It uses screw terminal for secure and easy wiring.

4. What head types are optional?
High round, flat and ball (domed) head are available.

5. Is this switch illuminated?
No, it is non-illuminated type for stable and long-life use.

The post 12/16/19/22mm Waterproof Metal Push Button Switch Screw Terminal High/Flat/Ball Head Non-Illuminated Momentary appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

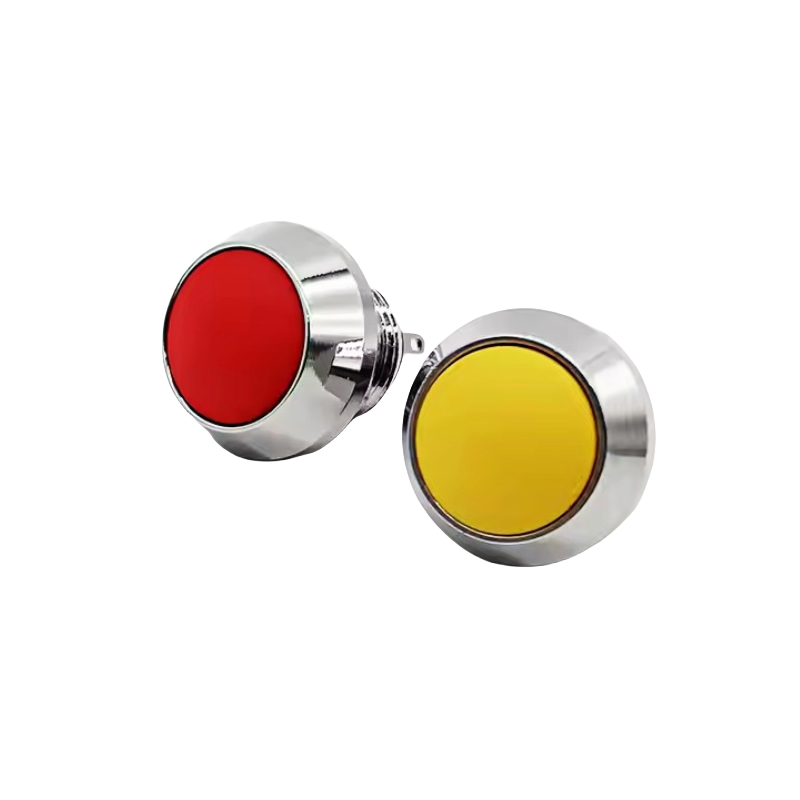

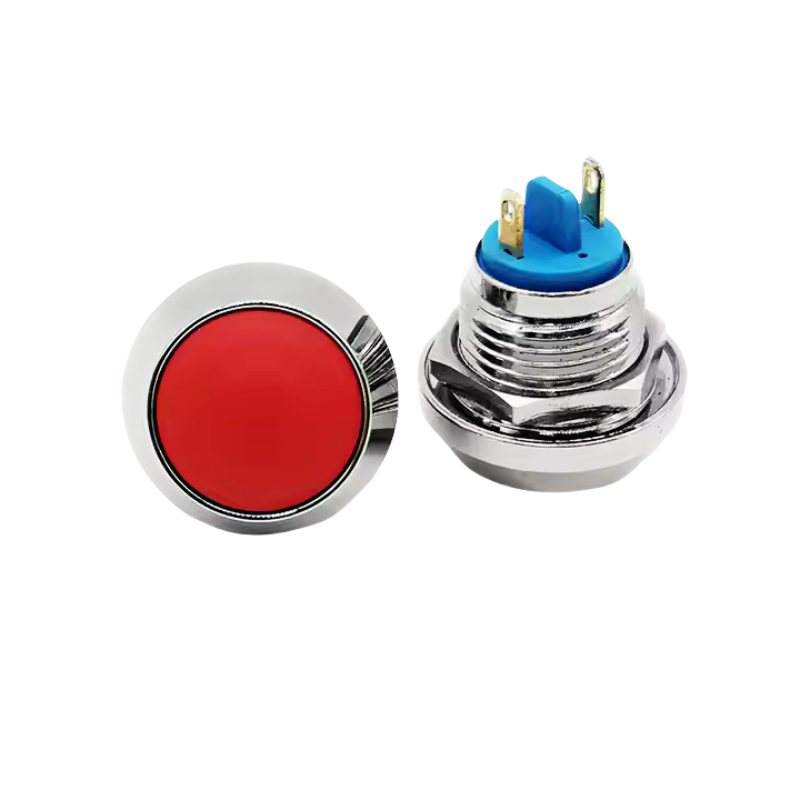

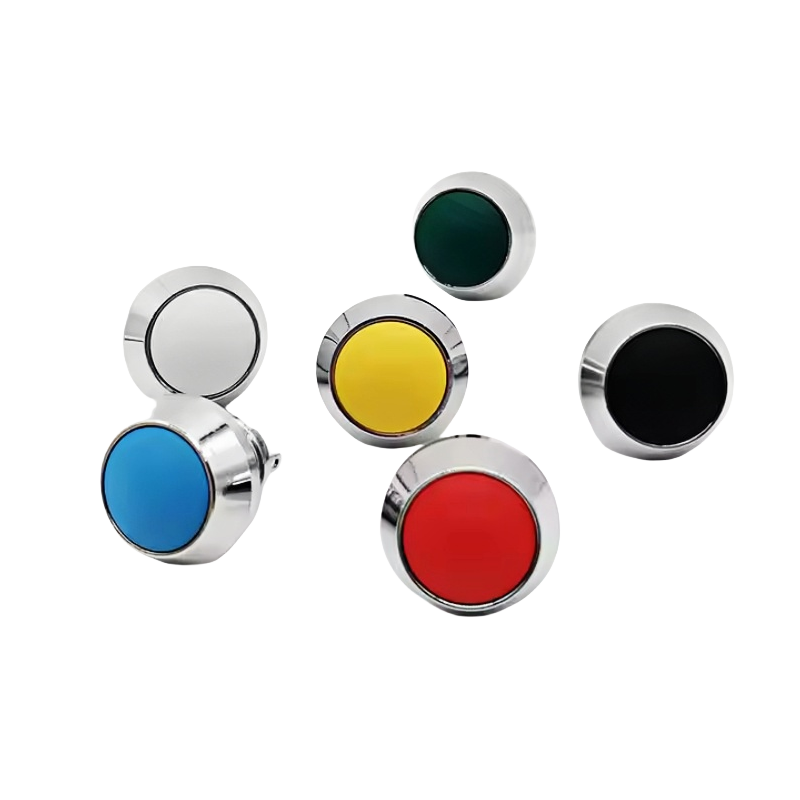

• 12mm standard mini mounting hole for compact panel installation
• Elegant ergonomic ball head design comfortable to press
• 1NO normally open contact for simple start control circuit
• Momentary self-reset function for one-touch start & trigger
• IP65 / IP66 professional waterproof and dustproof grade
• IK10 high impact resistance anti-vibration and durable

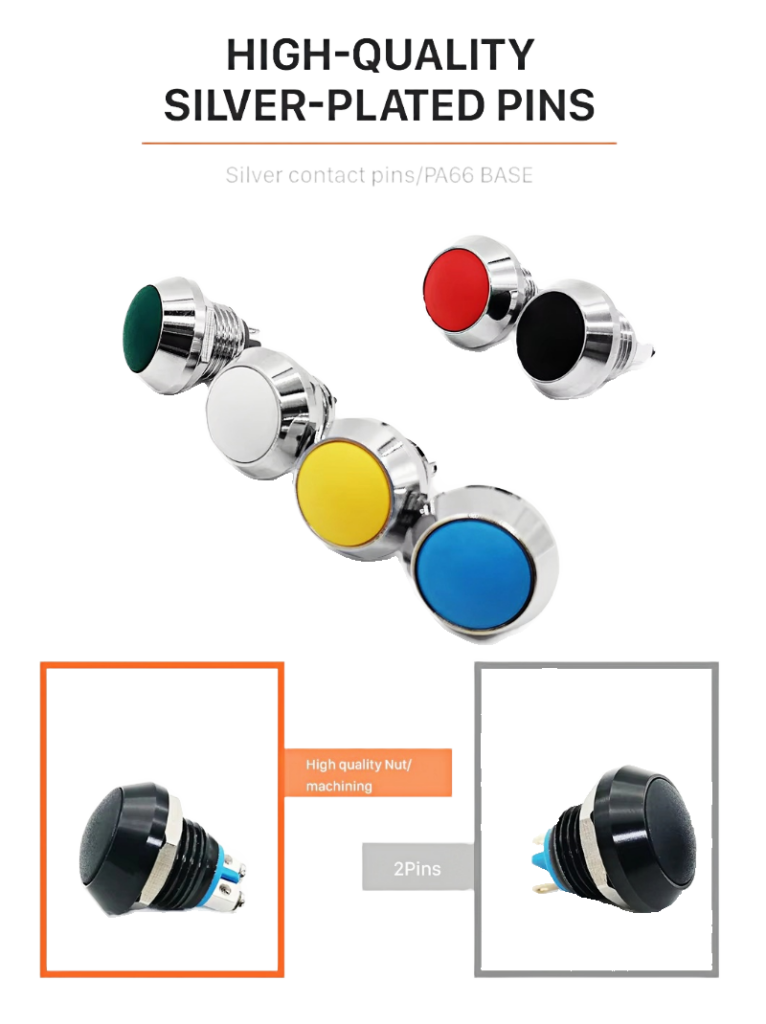

• High-quality silver-plated pins with PA66 flame retardant base
• Low contact resistance ≤50mΩ for stable conduction
• Insulation resistance ≥1000MΩ, dielectric strength 1000VAC min
• Wide working temperature: -30℃ ~ +80℃
• Pin optional: H65 / Silver Plated / Gold Plated
• Nickel brass mounting nut firm installation
• Silver contact material anti-oxidation long service life
• Plug-in connection easy wiring and replacement

Product Advantages

This 12mm ball head waterproof metal push button adopts smooth ball head appearance, ergonomic pressing feeling, beautiful and practical. Built with 1NO normally open contact, perfectly suitable for equipment one-touch start and signal trigger control. Momentary self-reset design meets most conventional on-off logic. IP65/IP66 waterproof and dustproof plus IK10 impact resistance adapt to workshop dust, humidity and equipment vibration environment. Equipped with silver-plated pins and PA66 flame retardant base, safe, stable and long service life, easy to install and wire.

Applications

• Industrial machinery one-touch start control button
• Automation equipment and control panel trigger switch
• Small instrument and intelligent device function button
• 12mm hole mini equipment replacement push button
• Electronic DIY project and student experimental circuit
• Waterproof indoor electrical and embedded control panel

FAQ

1. Mounting hole size?
Standard 12mm mini mounting hole diameter.

2. Head style?
Classic ball head / domed head design.

3. Contact configuration?
1NO normally open, ideal for start trigger control.

4. Operation mode?
Momentary self-reset, press to start, release to reset.

5. Waterproof grade?
IP65/IP66 waterproof dustproof, IK10 impact resistant.

The post 12mm Waterproof Metal Push Button Switches Momentary On-Off Start with Ball Head 1NO Switch Combination appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• Standard 22mm mounting hole for universal industrial panel installation
• Non-illuminated pure mechanical design, stable without light failure
• Metal head design with multiple head types optional
• Transparent high-strength PBT base, clear internal structure visible
• Momentary self-resetting operation type for emergency control
• Rich shell length options to fit different panel thickness
• Default IP40 protection grade, IP65 waterproof version customizable
• Fast flat jump contact structure, short stroke fast response
• Rated insulation voltage up to 690V for high voltage isolation
• Conventional thermal current 10A, boxed type rated 6A
• Complete AC-15 / DC-13 voltage and current load parameters
• Contact optional: Brass, Gold, Silver for different demands
• Mushroom & flat head mechanical life up to 1 million times
• Long electrical life: AC 500,000 / DC 200,000 times
• Spiral embedded terminal, wiring range 0.5mm² ~ 2.5mm²
• Working temperature: -5℃ ~ 40℃ for indoor industrial use
• Complies with IEC60947-5-1 and GB/T 14048.5 standards

                                                                                                    without LED                                                              with LED

Product Attributes

• Lamp: Non Illuminated
• Head Type: Domed, Flat, High Round, Key, Mushroom, Rotary, Square
• Position Mode: Two / Three Position Maintained & Momentary
• Contact Material: Brass , Gold , Silver
• Shell Length: 8mm,9mm,10mm,12mm,13mm,16mm,17mm,17.5mm,18mm

Product Advantages

This 22mm non-illuminated metal head momentary emergency stop switch adopts high-strength transparent PBT base with clear internal view and sturdy structure. Multiple head styles and shell lengths are optional to meet different panel installation needs. Momentary self-resetting design is suitable for instant emergency control. IP40 default protection and optional IP65 waterproof adapt to various environments. With 690V high insulation voltage and complete AC/DC load specifications, optional brass/gold/silver contacts match different conductivity requirements. Long mechanical and electrical service life, spiral embedded wiring is convenient and reliable, fully compliant with industrial safety standards.

Applications

• 22mm non-illuminated momentary metal head industrial emergency stop button
• High-frequency automation production line self-resetting safety switch
• CNC machine tools and mechanical equipment emergency control button
• Indoor workshop IP40 conventional environment safety protection
• IP65 customized version for humid factory and dust workshop

FAQ

1. What is the mounting size?
Standard 22mm mounting hole, fits most industrial control panels.

2. Is this illuminated type?
No, it is non-illuminated pure mechanical momentary emergency switch.

3. What head styles are available?
Domed, Flat, High Round, Key, Mushroom, Rotary, Square multiple options.

4. Can I choose shell length?
Yes, many shell lengths from 8mm to 18mm are optional.

5. What protection levels are available?
Standard IP40, IP65 waterproof version can be customized.

6. What contact materials can I pick?
Optional Brass, Gold, Silver contact for different usage needs.

7. What working scenarios is it suitable for?
Ideal for machine tools, automation lines, indoor workshops and optional waterproof industrial sites.

The post Non Illuminated 22mm Metal Head Momentary Emergency Stop Switch appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• Standard 22mm mounting hole for universal industrial panel installation
• Red non-illuminated momentary emergency stop design for safety control
• High-strength transparent PBT base, sturdy with visible internal structure
• Multiple head types optional: Domed, Flat, Flat With Chamfer, High Round, Key, Mushroom, Rotary, Square
• Various shell length sizes fit different panel thickness requirements
• Multiple position modes: 2-position / 3-position maintained & momentary
• Default IP40 protection grade, customizable IP65 waterproof version
• Rated insulation voltage up to 690V for high voltage safety isolation
• Conventional thermal current 10A, boxed type rated 6A
• Complete AC-15 & DC-13 voltage and current load specifications
• Contact material optional: Brass, Gold, Silver
• Flat & mushroom head mechanical life up to 1 million times
• Electrical life: AC 500,000 times; DC 200,000 times
• Spiral embedded terminal supports 0.5mm² ~ 2.5mm² wiring
• Working temperature range: -5℃ ~ 40℃
• Complies with IEC60947-5-1 and GB/T 14048.5 industrial standards
• Pure mechanical non-illuminated design, stable and failure-free

Product Attributes

• Lamp: Non Illuminated
• Head Color: Red
• Head Type: Domed , Flat , Flat With Chamfer , High Round , Key , Mushroom, Rotary , Square
• Position: Three Position Left Maintained And Right Momentary , Three Position Maintained , Three Position Momentary, Two Position Maintained , Two Position Momentary
• Contact Material: Brass , Gold , Silver
• Length of Shell: 8mm,9mm,10mm,12mm,13mm,16mm,17mm,17.5mm,18mm

Product Advantages

This 22mm red non-illuminated momentary emergency stop switch adopts high-strength transparent PBT base with solid structure and clear internal view. Red classic emergency color design with multiple head types and shell lengths for free combination. Supports various two-position and three-position operation modes to meet complex circuit demands. Standard IP40 protection and customizable IP65 waterproof version adapt to dusty and humid workshops. 690V high insulation voltage and complete AC/DC load parameters match most industrial power systems. Optional multi-contact material and ultra-long mechanical life ensure stable performance for high-frequency long-term use.

Applications

• 22mm red non-illuminated momentary emergency stop button for control panel
• Industrial automation production line high-frequency safety protection switch
• CNC machine tool and mechanical equipment instant reset emergency button
• Indoor workshop IP40 conventional environment safety control device
• IP65 waterproof customized version for humid and dusty industrial sites

FAQ

1. What is the mounting size?
Standard 22mm mounting hole, compatible with all conventional 22mm control panels.

2. Is it illuminated type?
No, it is non-illuminated pure mechanical momentary emergency switch.

3. Are there multiple head options?
Yes, Domed, Flat, Mushroom, Rotary and many other head types optional.

4. Can I choose shell length?
Multiple shell lengths from 8mm to 18mm are available for different panel thickness.

5. What protection levels are available?
Standard IP40, IP65 waterproof version can be customized for wet environments.

6. What contact materials can I choose?
Optional Brass, Gold, Silver to meet different conductivity needs.

7. What application scenarios is it suitable for?
Widely used in machine tools, automation lines, electrical cabinets, indoor workshops and optional waterproof industrial occasions.

The post Non Illuminated 22mm Red Momentary Emergency Stop Switch appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• Standard 22mm mounting hole for industrial machine panel universal installation
• Green non-illuminated momentary emergency stop design for machine safety
• Red and green two head color optional for different identification needs
• High-strength transparent PBT base, stable structure with visible internal details
• Multiple head types: Domed, Flat, High Round, Key, Mushroom, Rotary, Square
• Various shell length options fit different panel thickness requirements
• Multiple position modes: 2-position / 3-position maintained & momentary
• Default IP40 protection grade, customizable IP65 waterproof version
• Rated insulation voltage up to 690V for high voltage safety isolation
• Conventional thermal current 10A, boxed type rated 6A
• Complete AC-15 & DC-13 voltage and current load specifications
• Contact material optional: Brass, Gold, Silver
• Flat & mushroom head mechanical life up to 1 million times
• Electrical life: AC 500,000 times; DC 200,000 times
• Spiral embedded terminal, wiring range 0.5mm² ~ 2.5mm²
• Working temperature: -5℃ ~ 40℃ suitable for industrial machine environment
• Complies with IEC60947-5-1 and GB/T 14048.5 industrial safety standards
• Pure mechanical non-illuminated design, no light failure risk

Product Attributes

• Lamp: Non Illuminated
• Head Color: Green , Red
• Head Type: Domed , Flat , High Round , Key , Mushroom, Rotary , Square
• Position Mode: Three Position Left Maintained And Right Momentary , Three Position Maintained , Three Position Momentary, Two Position Maintained , Two Position Momentary
• Contact Material: Brass , Gold , Silver
• Shell Length: 8mm,9mm,10mm,12mm,13mm,16mm,17mm,17.5mm,18mm

Product Advantages

This 22mm green non-illuminated momentary emergency stop switch adopts high-strength transparent PBT base with sturdy structure and clear internal layout. It supports green and red dual head color options, plus multiple head styles and shell lengths to match various industrial machine panels. Multiple two-position and three-position operation modes meet diverse circuit control requirements. Standard IP40 protection with customizable IP65 waterproof version adapts to dusty and humid factory environments. With 690V high insulation voltage and complete AC/DC load parameters, optional brass/gold/silver contacts ensure stable conduction. Long mechanical and electrical service life, cost-effective and durable for long-term industrial machine use.

Applications

• 22mm green non-illuminated momentary emergency stop for industrial machine
• Automation machinery and production line safety control button
• CNC machine tool mechanical equipment emergency reset switch
• Indoor workshop IP40 conventional environment safety protection
• IP65 waterproof version for humid factory and dust workshop sites

FAQ

1. What is the mounting size?
Standard 22mm mounting hole, suitable for all kinds of industrial machine control panels.

2. Is there color option?
Yes, green and red two head colors are optional.

3. Is this illuminated type?
No, it is non-illuminated pure mechanical momentary emergency switch.

4. What head styles can I choose?
Domed, Flat, High Round, Key, Mushroom, Rotary, Square multiple types.

5. What protection levels are available?
Default IP40, IP65 waterproof version can be customized for wet conditions.

6. What contact materials are optional?
Brass, Gold, Silver three contact materials for different conductivity demands.

7. What is the main application?
Specially designed for industrial machine tools, automation equipment and workshop safety emergency stop control.

The post Non Illuminated 22mm Green Momentary Emergency Stop Switch appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.
