• Three standard sizes: 16mm, 19mm, 22mm
• IP65 / IP67 waterproof & dustproof protection
• Screw terminal & pin terminal for flexible installation
• Momentary operation type
• Red, green, blue LED illuminated options
• High-quality metal housing for durability
• NO (Normally Open) contact configuration
• Gold/silver plated contacts for stable conductivity

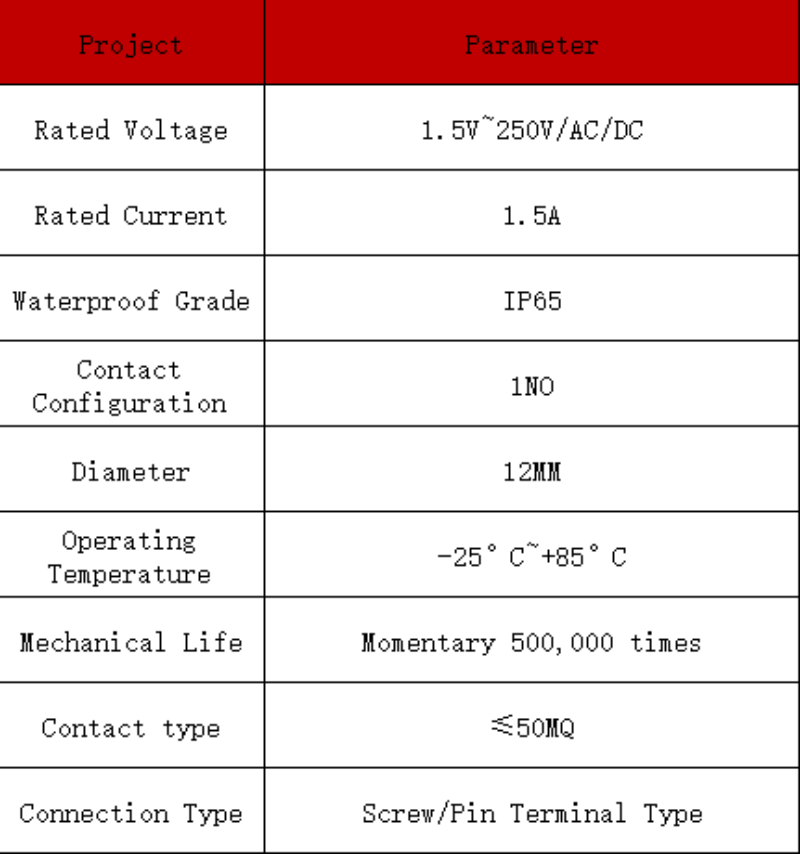

Technical Specifications

Product Advantages

This 16/19/22mm waterproof metal push button switch is designed for reliable use in industrial environments. It provides IP65/IP67 waterproof and dustproof protection, suitable for humid, wet and outdoor equipment. The screw and pin terminal design makes installation fast and flexible. With gold/silver plated contacts and metal housing, it ensures long mechanical life and stable electrical performance. Ideal for control panels, automation machines, automotive and electronic equipment.

Applications

• Industrial control panels & cabinets
• Automation machinery & equipment
• Automotive & vehicle control systems
• Marine & outdoor electronic devices
• Household appliances & instrument panels
• Wet & harsh environment equipment

FAQ

1. What sizes does this push button support?
It supports 22mm and 25mm standard mounting sizes.

2. Is this switch waterproof?
Yes, it has IP67 high-level waterproof and dustproof protection.

3. Does it support maintained and momentary modes?
Yes, both maintained (latching) and momentary operation are optional.

4. What contact configuration does it use?
It uses 1NO + 1NC double contact structure.

5. Is it pre-wired for easy installation?
Yes, pre-wired design supports direct plug-and-play installation.

The post 16/19/22mm Waterproof Metal Push Button Switch Screw/Pin Terminal Momentary Red/Green/Blue Button appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• 12mm standard mounting hole size
• Mushroom head design for easy & safe operation
• Mini compact size for limited space
• Momentary (self-reset) operation type
• Illuminated dot LED for clear status indication
• Multiple colors: Red, Yellow, Blue, Green
• Gold-plated contacts & pins for high conductivity
• Metal bezel & nickel plated brass housing
• Welding connection for stable installation
• Perfect for power start & stop control

Technical Specifications

Product Advantages

This 12mm mushroom head mini metal push button switch is specially designed for compact power start/stop systems. The mushroom head provides larger contact area for safer and more comfortable operation. Mini size saves installation space for small devices. Momentary self-reset mode ensures precise control. Gold-plated contacts and pins deliver excellent conductivity and long service life. LED dot illumination with multi-color options offers clear working status indication.

Applications

• Power start & stop control systems
• Mini & compact electronic equipment
• Automotive & vehicle interior buttons
• Small control panels & instrument panels
• DIY electronics & modification projects
• Industrial automation & small machinery

FAQ

1. What is the mounting size?
Standard 12mm mounting hole size.

2. What head type does it use?
It uses mushroom head for easy and safe operation.

3. Is this momentary or latching?
It is momentary (self-reset) type.

4. What LED colors are available?
Red, yellow, blue and green are optional.

5. Is it suitable for start/stop control?
Yes, it is ideal for power start and stop applications.

The post 12mm Mushroom Head Mini Metal Push Button Switch Momentary Power Start/Stop Red Yellow Blue Green appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• 22mm standard mounting hole size
• Black oxide metal housing for anti-corrosion & stylish look
• 10A high current for heavy-duty power control
• 1NO1NC double contact configuration
• IP67 waterproof & dustproof protection
• Illuminated & non-illuminated versions optional
• Multiple LED colors: Red, Green, Blue, White, Yellow
• Pre-wired design for plug-and-play installation
• Flat head style for stable panel mounting

Technical Specifications

Product Advantages

This 22mm black waterproof metal push button switch is designed for high-power control scenarios. It supports 10A large current and 1NO1NC dual-contact structure to meet complex circuit control needs. IP67 waterproof grade ensures stable performance in humid and harsh environments. The black oxide metal shell is anti-corrosion and durable. Pre-wired design allows fast installation without soldering. Gold-plated contacts provide excellent conductivity and long service life.

Applications

• Industrial power start & stop systems
• Automotive & vehicle modification control
• Marine & outdoor electronic equipment
• Control panels & machinery operation
• High-current power distribution devices
• Medical & intelligent instrument panels

FAQ

1. What is the mounting size of this switch?
Standard 22mm mounting hole size for industrial control panels.

2. What is the rated current?
It supports 10A high current for heavy-duty power control.

3. Is this switch waterproof?
Yes, it has IP67 high-level waterproof and dustproof protection.

4. What contact configuration does it use?
It uses 1NO + 1NC double contact structure.

5. Is it pre-wired for easy installation?
Yes, pre-wired design supports direct plug-and-play installation.

The post 22mm Black Waterproof Metal Push Button Switch 10A High Current 1NO1NC Power Start with Pre-wired appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• Two sizes: 12mm, 16mm
• Waterproof & explosion-proof construction
• Ring LED + power symbol illumination
• Momentary (self-reset) operation type
• Flat & high round head styles optional
• Multiple LED colors: Red, Green, Blue, White, Yellow
• Gold-plated contacts & pins for high conductivity
• Metal bezel & sturdy housing
• Welding connection for stable installation
• Suitable for hazardous & harsh environments

Technical Specifications

Product Advantages

This 12/16mm waterproof explosion-proof metal push button switch is specially designed for hazardous and harsh working environments. It provides reliable explosion-proof and waterproof performance to ensure safe operation in special conditions. The ring LED with power symbol offers clear and intuitive status indication. Gold-plated contacts and pins deliver excellent conductivity and long service life. It supports flat and high round head styles for flexible installation needs.

Applications

• Hazardous & explosive environment equipment
• Industrial control & safety systems
• Petroleum, chemical & mining devices
• Marine, offshore & harsh environment control
• Power start/stop & safety operation panels
• Special equipment & explosion-proof cabinets

FAQ

1. What sizes are available?
It supports 12mm and 16mm standard mounting sizes.

2. Is this switch explosion-proof & waterproof?
Yes, it features both explosion-proof and waterproof construction.

3. Does it have LED power symbol?
Yes, it has ring LED with power symbol indication.

4. What operation type does it use?
It uses momentary (self-reset) operation type.

5. Is this switch suitable for hazardous environments?
Yes, it is specially designed for hazardous and explosive environments.

The post 12 16mm Waterproof Metal Push Button Switch Ring-Type Momentary Explosion-Proof with LED and Power Symbol appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• Two standard mounting sizes: 19mm and 22mm for diverse panel installation demands
• 2-position and 3-position optional rotary modes for flexible circuit switching
• Flat head design with key locking function for reliable access security
• Metal bezel and chromium plated brass shell, sturdy and wear-resistant
• Gold contact and gold pin, excellent conductivity and anti-oxidation performance
• Dual contact configurations: 1NO+1NC and 2NO+2NC for multiple circuits
• Welding connection type for stable and firm wiring connection
• Non-illuminated structure, simple design and low failure rate
• Professional locking security design to prevent unauthorized operation
• Industrial grade durability for long-term continuous use
• Compact panel mount structure, easy to install and maintain

Technical Specifications

Product Attributes

• Mounting Size: 19mm / 22mm
• Operation Position: 2 Position / 3 Position
• Installation: Panel Mount
• Bezel: Metal
• Shell: Chromium Plated Brass
• Contact: Gold
• Pin: Gold
• Head Style: Flat
• Connection: Welding
• Contact Form: 1NO+1NC / 2NO+2NC
• Lamp: Non-Illuminated

Product Advantages

This key operated metal rotary switch is available in 19mm and 22mm two mainstream mounting sizes, compatible with most industrial control panels. It supports 2-position and 3-position switching, and provides two classic contact combinations to meet different circuit requirements. The whole switch adopts metal bezel and chromium plated brass shell, which is solid, anti-rust and durable. Gold contacts and pins effectively avoid oxidation and ensure stable electrical transmission. Adopting welding connection, the wiring is firm and not easy to loose. The flat key head with locking function can effectively restrict unauthorized operation and improve equipment safety. Non-illuminated design simplifies the structure and reduces failure points, which is an ideal security switching component for industrial equipment.

Applications

• Industrial control panel key-locked power and circuit switching control
• Automation equipment permission management and anti-misoperation switch
• Electrical cabinet and distribution box locking type rotary selector switch
• Mechanical equipment operating panel safety access control component
• Public equipment and special machinery security locking switch

FAQ

1. What mounting sizes does this rotary switch have?
It has two standard sizes: 19mm and 22mm for panel installation.

2. How many position modes are optional?
It supports 2-position and 3-position rotary selection modes.

3. What are the materials of shell, contact and pin?
The shell is made of chromium plated brass, while both contact and pin adopt gold material.

4. What contact configurations can I choose?
Two options: 1NO+1NC and 2NO+2NC for different circuit designs.

5. What is the connection way and head type?
It uses welding connection, and the operation head is flat style.

6. Does this switch have an indicator lamp?
No, it is non-illuminated type without built-in indicator lamp.

7. What are the main application scenarios?
It is widely used for industrial panels, mechanical equipment and electrical cabinets that need locking and security control.

The post 19mm 22mm Key Operated Metal Rotary Switch 2&3 Position Panel Mount Locking Security Switch appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• Standard 16mm mounting diameter for standard panel hole installation
• Classic red mushroom head design, eye-catching for emergency operation
• IP67 high waterproof and dustproof grade for harsh wet and dusty environments
• Non-illuminated mechanical type, simple structure and stable performance
• Dual operation type: Momentary self-resetting and Maintained latching optional
• Standard 1NO+1NC contact configuration for most safety control circuits
• High-quality gold contact material for good conductivity and oxidation resistance
• Silver PIN terminal, reliable plug-in connection and long service life
• Rated 5A current, wide voltage range 1.5V~250V AC/DC universal
• Full plastic bezel, head and shell, lightweight, cost-effective and corrosion-resistant
• Plug-in wiring method, easy installation, replacement and maintenance
• Professional IP67 sealed structure prevents dust and water intrusion

Technical Specifications

Product Attributes

• Bezel: Plastic
• Shell Material: Plastic
• Head Material: Plastic
• Head Type: Mushroom
• Head Color: Red
• Lamp: Non-Illuminated
• Contact Material: Gold
• PIN Material: Silver
• Operation of Contact: 1NO+1NC
• Operation type: Momentary, Maintained
• Mounting diameter: 16mm
• Connection: Plug in
• Rated Current & Voltage: 5A, 1.5V~250V AC/DC

Product Advantages

This 16mm IP67 non-illuminated mushroom head emergency stop switch adopts full plastic lightweight structure and IP67 sealed waterproof design. It supports momentary and maintained dual working modes, with standard 1NO1NC contact matching most industrial and civil safety circuits. Gold contact brings excellent conductivity and anti-oxidation ability, silver pin ensures stable plug-in connection. Wide 1.5V~250V AC/DC voltage and 5A current rating adapt to most power systems. Cost-effective, dustproof and waterproof, perfectly suitable for marine, medical, new energy and access control equipment emergency safety cutoff.

Applications

• 16mm panel IP67 plastic mushroom head waterproof emergency stop button
• Marine and boat wet environment dustproof non-illuminated safety switch
• Medical facility and hospital equipment mechanical emergency stop control
• New energy equipment and automation system 1NO1NC protection button
• Access control cabinet and intelligent equipment IP67 emergency shutdown switch

FAQ

1. What is the mounting size?
Standard 16mm mounting diameter, fits 16mm reserved panel mounting holes.

2. What is the waterproof level?
IP67 professional dustproof and waterproof rating, suitable for humid, dusty indoor and light outdoor environments.

3. Does it support two working modes?
Yes, both momentary self-resetting and maintained latching types are available.

4. What is the contact specification?
Adopts standard 1NO+1NC contact configuration for universal safety circuits.

5. What are the electrical parameters?
Rated current 5A, wide voltage 1.5V~250V compatible with AC and DC.

6. What material are the contacts and pins?
Contact is gold material, PIN terminal is silver material, anti-oxidation and stable conduction.

7. What application scenarios is it suitable for?
Widely used in marine, medical equipment, new energy devices and access control system safety emergency stop.

The post Plastic Material Emergency Stop Switch Button 16mm Mushroom Head IP67 Waterproof Emergency Stop 1NO1NC appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• Standard 22mm mounting diameter for industrial panel standard installation
• Metal bezel + stainless steel shell, high pressure resistance and wear resistance
• Red aluminum oxide mushroom head, obvious emergency visual recognition
• Non-illuminated mechanical design, stable performance without lighting failure
• Standard 1NO+1NC contact, customizable to 2NO+2NC function
• 10A high current rating, suitable for high power equipment control
• Premium gold contact material, excellent conductivity and oxidation resistance
• Integrated metal structure, sturdy and durable with long mechanical life
• Professional E-stop safety design for instant emergency power cutoff
• Easy installation and replacement, suitable for mass industrial matching

Technical Specifications

Product Attributes

• Bezel: Metal
• Shell Material: Stainless Steel
• Head Material: Alu Oxide
• Head Type: Mushroom
• Head Color: Red
• Lamp: Non-Illuminated
• Contact Material: Gold
• Operation of Contact: 1NO+1NC , 2NO+2NC
• Mounting diameter: 22mm
• Rated Current: 10A

Product Advantages

This 22mm metal mushroom head emergency stop button adopts full metal structure with stainless steel shell and aluminum oxide mushroom head, featuring pressure resistance, wear resistance and long mechanical service life. Non-illuminated pure mechanical design avoids lighting failure risk. It is equipped with standard 1NO1NC contact and supports customized 2NO2NC mode. 10A high current load capacity matches high-power mechanical equipment, gold contact ensures stable conduction and anti-oxidation performance. Rugged metal structure is reliable for long-term frequent use in industrial environments.

Applications

• 22mm industrial panel metal mushroom head 10A high current emergency stop button
• Mechanical engineering equipment heavy load safety E-stop switch
• Electrical and electronic devices standard 1NO1NC emergency protection button
• Production line, packaging machinery and automation equipment cutoff switch
• Power distribution cabinet and industrial control system metal emergency button

FAQ

1. What is the mounting size?
Standard 22mm mounting diameter, compatible with conventional 22mm panel mounting holes.

2. Is this a high current model?
Yes, rated 10A high current, suitable for high-power industrial equipment circuits.

3. What contact options are available?
Standard 1NO+1NC, also can be customized to 2NO+2NC combination.

4. What material is the button made of?
Metal bezel, stainless steel shell, aluminum oxide red mushroom head.

5. Does it have LED light?
No, it is non-illuminated mechanical emergency stop type.

6. Why choose gold contact?
Gold contact features better electrical conductivity, anti-oxidation and longer service life for frequent operation.

7. What industries is it suitable for?
Widely used in mechanical equipment, electrical and electronic devices, production lines and industrial automation systems.

The post 22mm Metal Mushroom Head Emergency Stop Button Switch Emergency Button 10A High Current appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• Standard 22mm mounting size, flat head design, latching operation mode for stable status keeping
• Made of high-quality SUS304 stainless steel, durable, corrosion-resistant and easy to clean
• IP68 waterproof & dustproof grade, IK69 level available, adapt to harsh wet and dusty environments
• Dot LED indicator, ring lamp optional, multiple LED colors and dual/tri-color lamp support
• Complete prewired design, 24AWG/26AWG wire, 150mm/300mm standard length, customized length acceptable
• Wide voltage range: 3-24V AC/DC, rich LED voltage options covering low voltage to mains voltage
• Low power consumption, working current below 20mA, energy-saving for long-term operation
• Moderate operating force 4-8N, comfortable touch experience, sensitive response
• Excellent electrical performance: max contact resistance 50mΩ, min insulation resistance 1000MΩ
• Withstand 2000VAC (50/60HZ) dielectric strength, guarantee circuit safety
• Diversified head styles: concave, flat, round, square and other shapes for selection
• Multiple shell sizes and surface treatments: aluminum oxide, multi-color anodized finish
• Rich contact configurations: NO, NC, 1NO1NC, 2NO2NC, 3NO3NC and prolonged pulse type
• Gold and silver dual contact materials, good conductivity and anti-oxidation
• Dual temperature ranges: -20℃~55℃ and -40℃~+75℃ for different ambient conditions
• Long service life: 1 million mechanical & electrical cycles, total lifespan up to 40000 hours
• Compliant with CE EN 60947-5-1:2017 standard, reliable quality for global use
• Support full customization on appearance, wiring, lamp and contact parameters

Technical Specifications

Product Attributes

• Mounting Size: 22mm Flat Type
• Operation Mode: Latching
• Body Material: SUS304 Stainless Steel
• IP Rating: IP68, Support IK69 Upgrade
• Temperature Range: -40℃ ~ +75℃
• Operating Force: 4-8N
• Rated Spec: 3-24V, ≤20mA
• Contact: Gold / Silver, Multiple Combinations
• Electrical Performance: 50mΩ Max / 1000MΩ Min / 2000VAC
• Lamp: Dot & Ring LED, Multi-color & Multi-voltage
• Head & Shell: Multiple Shapes, Sizes & Surface Treatments
• Wiring: Welding / Prewired (Custom Wire Length)
• Service Life: 1 Million Cycles, 40000 Hours
• Certification: CE EN 60947-5-1:2017

Product Advantages

This 22mm flat piezo touch switch adopts premium SUS304 stainless steel, paired with IP68 high waterproof and dustproof performance, and optional IK69 anti-impact grade, which can work stably in various harsh environments. The latching design keeps the switch state steadily, and the 4-8N moderate operating force brings sensitive and comfortable touch experience. It is equipped with prewired harness with multiple wire gauges and lengths for easy installation, and also supports welding connection. The product has complete electrical parameters, gold and silver contacts ensure stable conduction and long service life, with 1 million mechanical & electrical cycles and 40000-hour total lifespan. It supports abundant customization including head style, shell size, anodized color, LED color and voltage, and contact modes. Complying with CE international standard, it has strong compatibility. The low power consumption design is suitable for long-term operation, and it can be combined with single-chip microcomputer to realize tapping trigger, music rhythm and lighting control functions, which is an ideal component for smart hardware and DIY development.

Applications

• Smart hardware development and electronic DIY project control components
• Impact sensor modules and programmable trigger sensing devices
• Music rhythm linkage and lighting system control switches
• Industrial control panels, outdoor equipment and waterproof touch buttons
• Automation equipment, medical devices and sanitary equipment touch switches
• Low-voltage electronic equipment and customized embedded control modules

FAQ

1. What is the installation size and operation mode of this piezo switch?
The standard mounting size is 22mm flat head, and it adopts latching operation mode.

2. What material and protection level does it have?
Main body is made of SUS304 stainless steel; standard IP68 grade, IK69 high protection level is optional.

3. What are the temperature range and operating force?
Two temperature options: -20°~55℃ and -40℃~+75℃; operating force is 4 to 8N.

4. What are the core electrical parameters?
Rated voltage 3-24V, working current below 20mA; max contact resistance 50mΩ, min insulation resistance 1000MΩ, withstand 2000VAC.

5. What contact materials and configurations are available?
Contact materials: gold and silver; multiple configurations such as NO, NC, 1NO1NC, 2NO2NC and prolonged pulse.

6. About the wiring and LED configuration?
Support welding and prewired (24AWG/26AWG, 150/300mm customizable); dot/ring LED with multi-color and multi-voltage options.

7. What is the service life and applicable standard?
Mechanical and electrical life reach 1 million times, total lifespan 40000 hours; comply with CE EN 60947-5-1:2017.

8. What main scenarios is this product suitable for?
Widely used for smart hardware, DIY projects, impact sensors, lighting, music control and industrial waterproof equipment.

The post Dot LED Stainless Steel Latching 22mm Flat Piezo Switch IP68 Touch Switch with Prewired appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• Standard 30mm mounting size, alu anodized shell, sturdy and anti-corrosion for long-term use
• Latching operation mode, keep stable circuit state after triggering without repeated operation
• IP68 full waterproof & dustproof grade, IK69 anti-impact level optional for harsh environments
• Rated current 2A, wide voltage range 3-24V, compatible with most low-voltage circuits
• Dual wiring options: prewired (24AWG/26AWG) and traditional welding connection
• Standard wire length 150mm/300mm, customized wire length is available on demand
• Moderate operating force 4-8N, sensitive touch response and comfortable operation feel
• Gold and silver contact materials, excellent conductivity and oxidation resistance
• Outstanding electrical performance: max contact resistance 50mΩ, min insulation resistance 1000MΩ
• Withstand 2000VAC (50/60HZ) dielectric strength, ensure circuit operation safety
• Dual temperature ranges: -20℃~55℃ and -40℃~+75℃ for different working conditions
• Rich head styles: concave, flat, round, square and other multi-style options
• Ring LED design, available in single color, dual color and tri-color lamp solutions
• Complete LED voltage specifications covering AC and DC low voltage to mains voltage
• Diversified contact configurations: NO, NC, 1NO1NC, 2NO2NC, 3NO3NC and pulse type
• Multiple shell lengths and anodized color options to meet personalized appearance demands
• Long service life: 1 million mechanical & electrical cycles, total lifespan up to 40000 hours
• Low power consumption and compact structure, ideal for DIY and embedded projects
• Compliant with CE EN 60947-5-1:2017 international electrical safety standard

Technical Specifications

Product Attributes

• Mounting Dimension: 30mm
• Operation Mode: Latching
• Shell: Aluminum Anodized & SUS304
• IP Rating: IP68, Optional IK69
• Temperature Range: -40℃ ~ +75℃
• Operating Force: 4-8N
• Rated Spec: 3-24V, 2A / Working Current ≤20mA
• Contact: Gold / Silver, Multiple Combinations
• Electrical Performance: 50mΩ Max / 1000MΩ Min / 2000VAC
• Lamp: Ring LED, Multi-color & Multi-voltage
• Head & Shell: Multiple Shapes, Sizes & Anodized Colors
• Wiring: Welding / Prewired (Custom Wire Length)
• Service Life: 1 Million Cycles, 40000 Hours
• Certification: CE EN 60947-5-1:2017

Product Advantages

This 30mm anodized aluminum piezo touch switch adopts high-quality anodized aluminum and SUS304 materials, featuring strong corrosion resistance and wear resistance. With IP68 waterproof and dustproof performance plus optional IK69 anti-impact capability, it can operate stably in damp, dusty and impact-prone harsh environments. The latching structure locks the switch state effectively. It is rated at 2A and compatible with 3-24V circuits, covering most low-voltage control systems. Equipped with prewired harness and reserved welding terminals, the wiring is flexible for different installation demands. Gold and silver contacts ensure stable conduction and long service life. The product has two temperature options and complete electrical indicators, with 1 million mechanical and electrical cycles and 40000-hour total lifespan. It supports rich customization on appearance, lights and contacts, and complies with CE international standards. With fast response and low power consumption, it can cooperate with single-chip microcomputers to realize impact sensing, music rhythm and lighting linkage functions, which is an excellent choice for smart hardware development, electronic DIY and industrial control equipment.

Applications

• Smart hardware development and electronic DIY circuit control modules
• Impact sensor and programmable tapping trigger sensing devices
• Music rhythm linkage, stage lighting and intelligent lighting control systems
• Industrial control panels, outdoor machinery and waterproof touch operation buttons
• Sanitary equipment, medical devices and public access control switches
• Low-voltage embedded equipment and customized electronic control components

FAQ

1. What is the installation size and operation type of this piezo switch?
The standard mounting hole is 30mm, and it adopts latching operation mode.

2. What protection levels does it support?
Standard IP68 waterproof and dustproof grade, and IK69 anti-impact level is available for upgrade.

3. What are the electrical specifications?
Rated voltage 3-24V, rated current 2A, working current below 20mA.

4. What temperature ranges and operating force does it have?
Two temperature ranges: -20℃~55℃ and -40℃~+75℃; operating force is 4 to 8N.

5. What contact materials and electrical performance parameters?
Contacts are gold and silver; max contact resistance 50mΩ, min insulation resistance 1000MΩ, withstand 2000VAC.

6. What wiring methods and wire specifications?
Support welding and prewired connection; wire gauge 24AWG/26AWG, standard length 150mm/300mm, customizable.

7. About the lamp and customizable items?
It uses ring LED with abundant colors and voltage options; head shape, shell size, contact mode and anodized color can be customized.

8. What is the service life and executive standard?
Mechanical and electrical life reach 1 million times, total lifespan 40000 hours; comply with CE EN 60947-5-1:2017.

9. What are the main application scenarios?
Mainly used for smart hardware, DIY projects, sensors, lighting control and various industrial waterproof equipment.

The post IP68 Touch Switch with Prewired Rating 2A Alu Anodized Latching 30mm Piezo Switch appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• Standard 22mm mounting size with square head design, elegant and easy to identify on control panels
• Momentary (self-reset) operation mode, ideal for jog control and temporary signal triggering
• High-quality SUS304 stainless steel head and body, anti-corrosion, sturdy and easy to clean
• IP68 full waterproof & dustproof grade, IK69 anti-impact level available for harsh environments
• Compliant with RoHS and CE EN 60947-5-1:2017 standards, meets global environmental & electrical norms
• Rated 2A current and 3-24V wide voltage range, compatible with most low-voltage circuits
• Dual wiring solutions: prewired (24AWG/26AWG) and traditional welding connection
• Standard wire length 150mm/300mm, customized wire length is supported for diverse installation
• Moderate 4-8N operating force, sensitive touch response and comfortable operation experience
• Dual working temperature ranges: -20℃~55℃ and -40℃~+75℃ for various ambient conditions
• Gold and silver optional contact materials, excellent conductivity and anti-oxidation performance
• Outstanding electrical performance: max contact resistance 50mΩ, min insulation resistance 1000MΩ
• Withstand 2000VAC (50/60HZ) dielectric strength to guarantee circuit safety
• Rich head styles: concave, flat, round, square and other shapes for selection
• Ring lamp design, available in single color, dual color and tri-color LED indicators
• Complete LED voltage specifications covering AC and DC from low voltage to mains voltage
• Diversified contact configurations: NO, NC, 1NO1NC, 2NO2NC, 3NO3NC & prolonged pulse type
• Multiple shell lengths and surface treatments (anodized, aluminum oxide) for personalized demands
• Long service life: 1 million mechanical cycles, 1 million electrical cycles, total 40000 hours lifespan
• Low power consumption and compact structure, perfect for microcontroller linked DIY projects

Technical Specifications

Product Attributes

• Mounting Dimension: 22mm Square Head
• Operation Mode: Momentary (Self-reset)
• Main Material: SUS304 Stainless Steel
• IP Rating: IP68, Optional IK69 Anti-impact
• Certification: RoHS, CE EN 60947-5-1:2017
• Temperature Range: -40℃ ~ +75℃
• Operating Force: 4-8N
• Electrical Spec: 3-24V, 2A / Working Current ≤20mA
• Contact: Gold / Silver, Multiple Combinations
• Electrical Performance: 50mΩ Max / 1000MΩ Min / 2000VAC
• Lamp: Ring LED, Multi-color & Multi-voltage Optional
• Shell: Multiple Lengths & Surface Finishes
• Wiring: Welding / Prewired (Custom Wire Length)
• Service Life: 1 Million Cycles, Total 40000 Hours

Product Advantages

This 22mm square head momentary piezo switch is made of premium SUS304 stainless steel, featuring excellent corrosion resistance and structural rigidity. It is equipped with IP68 waterproof/dustproof and optional IK69 anti-impact performance, working reliably in wet, dusty and collision-prone industrial and outdoor environments. Adopting momentary self-reset design, it is perfectly suitable for instantaneous signal triggering and jog control. With 2A rated current and 3-24V wide voltage compatibility, it adapts to most low-voltage control circuits. Dual wiring methods including prewired harness and welding terminals greatly improve installation flexibility. Gold and silver contacts ensure stable electrical conduction and long service life. The product supports a full set of customization on head shape, LED light, contact mode and shell size, and complies with RoHS and CE standards for global sales and projects. It has fast response, low power consumption and long service life, and can be matched with single-chip microcomputers to realize tapping trigger, music rhythm and lighting linkage functions, which is an ideal component for smart hardware development, electronic DIY and various industrial control devices.

Applications

• Smart hardware development and electronic DIY instantaneous control modules
• Impact sensor and programmable tapping trigger sensing equipment
• Stage lighting, music rhythm linkage and intelligent lighting control systems
• Industrial control panels, outdoor machinery and waterproof momentary operation buttons
• Sanitary equipment, medical devices and public access control touch switches
• Low-voltage embedded electronic equipment and customized circuit components

FAQ

1. What is the installation size and operation mode?
The mounting hole is 22mm with square head, and it adopts momentary (self-reset) operation mode.

2. What protection grades and certifications does it have?
It reaches IP68 waterproof & dustproof grade, IK69 anti-impact is optional; certified by RoHS and CE EN 60947-5-1:2017.

3. What are the core electrical parameters?
Rated voltage 3-24V, rated current 2A, working current below 20mA.

4. What temperature range and operating force?
Two options: -20℃~55℃ and -40℃~+75℃; operating force is 4 to 8N.

5. What about contact material and electrical performance?
Contacts are gold and silver; max contact resistance 50mΩ, min insulation resistance 1000MΩ, withstand 2000VAC.

6. What wiring methods are available?
Support welding and prewired (24AWG/26AWG), standard wire length 150mm/300mm, customizable.

7. Can I customize lights, head styles and contacts?
Yes. It supports various head shapes, multi-color/multi-voltage ring LED, and diverse contact configurations.

8. What is the service life?
Mechanical and electrical life are both 1 million times, total service life up to 40000 hours.

9. What are the main application scenarios?
Mainly used for smart hardware, DIY projects, sensors, lighting control and industrial waterproof equipment.

The post Square Head Rating 2A Stainless Steel Momentary 22mm Piezo Switch IP68 Rohs Touch Switch with Prewired appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.
