• Standard 22mm mounting size for universal industrial panel installation
• Plastic bezel and full plastic shell, lightweight and cost-effective
• Red rotary head type, clear emergency identification
• Non-illuminated design for conventional control application
• Dual operation mode: Maintained Latching / Momentary Self-resetting optional
• High 10A rated current for heavy load emergency shutdown
• Multiple contact combinations: 1NO+1NC, 2NO, NO, NC
• Silver contact material, stable conduction and long service life
• Simple rotary reset structure, easy operation and installation
• Ideal for industrial equipment emergency power off and safety control

Technical Specifications

Product Attributes

• Bezel: Plastic
• Shell Material: Plastic
• Head Type: Rotary
• Head Color: Red
• Lamp: Non-Illuminated
• Contact Material: Silver
• Contact Operation: 1NO+1NC , 2NO , NO , NC

Product Advantages

This 22mm plastic E-stop button adopts lightweight plastic shell and red rotary head design. It supports both maintained latching and momentary working modes, with high 10A current rating for industrial heavy load emergency shutdown. Multiple contact combinations meet various circuit design requirements. Silver contact ensures stable electrical performance, non-illuminated structure is simple and practical, easy to install and operate, perfect for all kinds of industrial equipment safety emergency stop control.

Applications

• 22mm panel plastic rotary E-stop emergency button
• Industrial equipment 10A high load emergency shutdown switch
• Mechanical cabinet non-illuminated red emergency stop button
• Automation panel maintained momentary dual mode safety switch
• Cost-effective plastic emergency control push button

FAQ

1. Mounting size?
Standard 22mm mounting hole.

2. Operation mode?
Support maintained latching and momentary self-resetting two options.

3. Rated current?
10A high current rating.

4. Illumination?
Non-illuminated version.

5. Contact options?
1NO+1NC, 2NO, NO, NC multiple combinations available.

The post 22mm E-Stop Button Plastic 10A Maintained/Momentary Options appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• Standard 22mm mounting hole for industrial panel standard installation
• Integrated waterproof structure adapts to dusty and humid workshop environment
• Red rotary head design, obvious identification for emergency operation
• Non-illuminated simple practical design for general safety control
• Dual operation mode: Maintained latching / Momentary self-resetting optional
• Fixed 1NO1NC contact combination to meet most industrial circuit needs
• Plastic bezel and plastic shell material, lightweight and cost-effective
• Silver contact material, stable conductivity and long service life
• Compliant with EN60947 and IEC60947-5-1 international safety standards
• High voltage withstand performance: AC-15 380V/220V, DC-13 220V/110V
• Rotary reset operation, simple and quick to restore normal work
• Professional emergency shutdown function for mechanical safety protection

Technical Specifications

Product Attributes

• Bezel: Plastic
• Shell Material: Plastic
• Head Material: Plastic
• Head Type: Rotary
• Head Color: Red
• Lamp: Non-Illuminated
• Contact Material: Silver
• Contact Operation: 1NO + 1NC

Product Advantages

This 22mm waterproof 1NO1NC emergency stop switch adopts full plastic structure with red rotary reset head. Built-in waterproof design can adapt to humid and dusty industrial workshops. It supports maintained latching and momentary two working modes, fixed 1NO1NC contact configuration, perfectly matching conventional safety control circuits. Comply with EN60947 and IEC60947-5-1 industrial safety standards, with stable AC and DC voltage load capacity. Simple rotary reset operation, cost-effective and durable, is the preferred safety component for standard industrial machinery and automation equipment.

Applications

• 22mm panel waterproof plastic emergency stop button for dusty humid workshop
• Industrial production machinery 1NO1NC non-illuminated safety switch
• Automation equipment control panel maintained & momentary E-stop button
• Packaging machinery, conveyor equipment emergency shutdown push button
• Electrical cabinet and mechanical equipment standard safety protection switch

FAQ

1. What is the mounting size?
Standard 22mm mounting hole size, suitable for conventional industrial panel installation.

2. Does it support dual operation modes?
Yes, both maintained latching and momentary self-resetting types are available.

3. What is the contact configuration?
Fixed 1NO1NC contact combination, suitable for most safety control circuits.

4. Is this emergency button waterproof?
Yes, it adopts waterproof construction, suitable for humid and dusty workshop environments.

5. Does it follow international industrial standards?
Yes, it complies with EN60947 and IEC60947-5-1 safety standards.

6. Is it illuminated type?
No, this model is non-illuminated version with pure mechanical control.

The post 22mm Emergency Stop Switch Waterproof 1NO1NC Maintained/Momentary Push Button appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• Multi-mode design: available in 2-position and 3-position configurations to meet diverse gear selection demands
• Dual operation types: supports both maintained (latching) and momentary (reset) working modes
• Standard 1NO1NC (1 Normally Open + 1 Normally Closed) contact structure for flexible circuit control
• High-quality silver contacts, low contact resistance, stable current transmission and anti-oxidation
• 16mm standard installation size, universal for mainstream industrial control panels
• Integrated plastic bezel and plastic shell, lightweight, insulation and impact resistance
• Black rotary head, classic industrial appearance, compatible with most equipment styles
• Non-illuminated design, simple structure, low failure rate and long service life
• Easy panel mounting and wiring, no complex assembly steps
• Compact overall structure, saves installation space for control cabinets and machinery
• Versatile performance, suitable for indoor industrial environments and global market applications

Full Technical Specifications

Product Attributes

• Installation Dimension: 16mm Standard Panel Mount
• Position: Optional 2-Position / 3-Position
• Operation: Maintained & Momentary Dual Modes
• Contact Type: 1NO1NC (1 Open + 1 Close)
• Contact Material: Silver
• Bezel & Shell: Plastic
• Rotary Head: Black, Non-Illuminated
• Core Strength: Multi-mode, Universal Size, Stable Conductivity

Product Advantages

This 16mm rotary selector switch is a multi-functional industrial control component. It provides two position choices (2-position and 3-position) and two operation modes (maintained and momentary), which can adapt to different circuit control logic. Adopting classic 1NO1NC contact combination and high-purity silver contacts, the switch ensures excellent electrical conductivity and long-term anti-oxidation performance. The plastic bezel and shell feature good insulation and shock resistance, suitable for conventional industrial working environments. The 16mm standard size is highly universal and compatible with most industrial control panels. The black non-illuminated rotary head has a simple and durable structure, without easily damaged lamp components, effectively reducing failure rate. The product is easy to install and wire, with compact layout, which is an economical and practical choice for equipment gear switching and circuit selection. It meets the usage requirements of industrial fields around the world.

Application Scenarios

This multi-functional rotary switch is widely exported to Europe, North America, Southeast Asia and other global regions, mainly used for gear selection and circuit switching of industrial equipment.

• Industrial machinery and production line equipment mode selector switches
• Electrical control cabinets and power distribution panel gear control components
• Automation equipment and robotic circuit selection units
• General electromechanical devices and engineering machinery control panels
• Testing instruments and laboratory equipment function adjustment switches
• Commercial electrical equipment and low-voltage control system accessories

FAQ

1. What position and operation modes does this rotary switch support?
It has 2-position and 3-position optional configurations, and supports both maintained (latching) and momentary (reset) operation modes.

2. What is the contact type and material?
The contact structure is 1NO1NC (1 Normally Open + 1 Normally Closed), and the contact material is silver for stable conduction.

3. What is the installation size and main materials?
The standard installation size is 16mm; both the bezel and outer shell are made of plastic.

4. What is the style of the rotary head?
It adopts black rotary head design, and there is no built-in indicator lamp (non-illuminated).

5. What are the advantages of silver contacts?
Silver contacts have low contact resistance, good electrical conductivity and strong anti-oxidation ability for long-term use.

6. Is this switch suitable for panel installation?
Yes, 16mm is a common industrial panel opening size, easy for installation and fixation.

7. What is the difference between maintained and momentary modes?
Maintained mode keeps the position after rotation; momentary mode will automatically reset when releasing the handle.

8. Does this product have indicator lights?
No, it is a non-illuminated rotary switch without LED or signal lamps.

9. What main equipment is it applied to?
Widely used in industrial machinery, control cabinets, automation devices and various electromechanical equipment worldwide.

The post 16mm Rotary Selector Switch 2-Position/3-Position Maintained/Momentary with 1NO1NC Contacts appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• Universal 22-30mm mounting size, compatible with two mainstream panel hole sizes for wide applicability
• 2P (2-position) and 3P (3-position) optional configurations to meet different gear selection requirements
• Dual operation modes: maintained (latching) and momentary (reset) for flexible circuit control logic
• Standard 1NO1NC (1 Normally Open + 1 Normally Closed) contact structure for signal switching
• High-purity silver contacts, low contact resistance, excellent conductivity and anti-oxidation performance
• Crimp type connection terminal, fast wiring, firm connection and suitable for mass assembly
• Full plastic structure including bezel, rotary head and shell, good insulation and impact resistance
• Uniform black appearance, classic industrial style matching most control panels and equipment
• Non-illuminated design, simple structure, fewer vulnerable parts and low failure rate
• Rated thermal current 10A, supports AC-15 and DC-13 load categories for diverse voltage systems
• Compliant with EN60947 and IEC60947-5-1 international standards, safe and reliable for global use
• Compact body, easy installation and maintenance, cost-effective for industrial projects

Full Technical Specifications

Product Attributes

• Mounting Dimension: 22mm & 30mm Dual Universal Size
• Position: 2P / 3P Optional
• Operation: Maintained + Momentary Dual Modes
• Contact: 1NO1NC, Silver Material
• Wiring: Crimp Connection
• Main Material: Plastic (Bezel / Head / Shell)
• Color: Black
• Lamp: Non-Illuminated
• Rated Current: 10A
• Load Type: AC-15, DC-13
• Compliance: EN60947, IEC60947-5-1

Product Advantages

This 22-30mm universal rotary switch is a versatile industrial control component. It adapts to two common panel opening sizes of 22mm and 30mm, greatly improving equipment compatibility. With selectable 2-position and 3-position gears, as well as maintained and momentary dual working modes, it can meet complex circuit control demands. The 1NO1NC silver contact ensures stable current transmission and long service life. The crimp terminal design simplifies wiring work and is suitable for batch production and on-site installation. The all-plastic structure has good insulation and anti-collision performance, and the black non-illuminated rotary head has a simple structure with low failure risk. The product reaches 10A rated current and supports AC-15 and DC-13 typical load categories, covering most AC and DC low-voltage control circuits. It strictly follows EN60947 and IEC60947-5-1 international electrical standards, with reliable quality for export to global markets. It is an economical and practical choice for industrial control and mechanical equipment.

Application Scenarios

This universal rotary switch is widely sold in Europe, North America, Southeast Asia and other global regions, focusing on industrial low-voltage control fields.

• Indoor electrical control cabinets and power distribution box gear switching components
• Industrial automation equipment and production line mode selector switches
• Engineering machinery and mobile mechanical control panel accessories
• Low-voltage AC/DC control systems and signal conversion modules
• Testing instruments and laboratory equipment function adjustment knobs
• Commercial electromechanical devices and general industrial electrical appliances

FAQ

1. What mounting sizes and position options does this switch have?
It supports 22mm and 30mm two panel sizes, with 2P (2-position) and 3P (3-position) optional gears.

2. What operation modes and contact structure are equipped?
It has maintained (latching) and momentary (reset) dual modes, adopting standard 1NO1NC contact configuration.

3. What is the contact material and wiring type?
The contact is made of silver; the terminal adopts crimping connection for fast and firm wiring.

4. What are the material and appearance features?
The bezel, rotary head and shell are all made of plastic; overall color is black, and there is no indicator lamp.

5. What are the electrical parameters and load categories?
Rated thermal current is 10A; AC-15 for 380VAC/220VAC, DC-13 for 220VDC/110VDC.

6. Which international standards does the product comply with?
It is manufactured in accordance with EN60947 and IEC60947-5-1 international electrical standards.

7. What is the difference between maintained and momentary modes?
Maintained mode locks the position after rotation; momentary mode automatically resets when the hand is released.

8. What are the advantages of 22-30mm universal size?
It is compatible with two mainstream panel holes, reducing model types and improving application scope.

9. What main equipment is this switch suitable for?
Widely used in industrial control cabinets, automation machinery, engineering equipment and low-voltage systems worldwide.

The post 22-30mm Rotary Switch Black 2P/3P Maintained/Momentary 1NO1NC appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

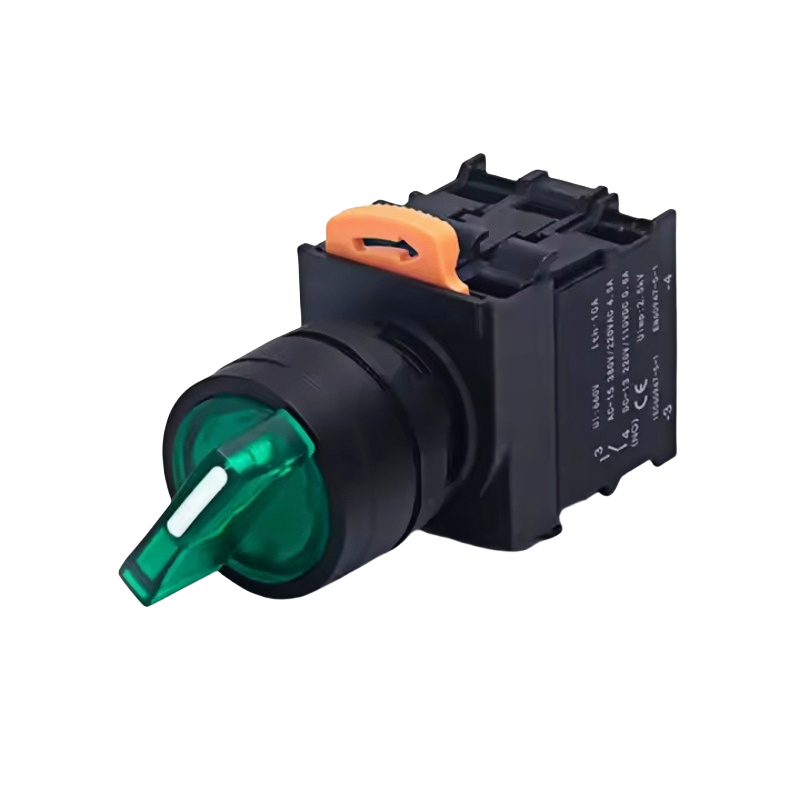

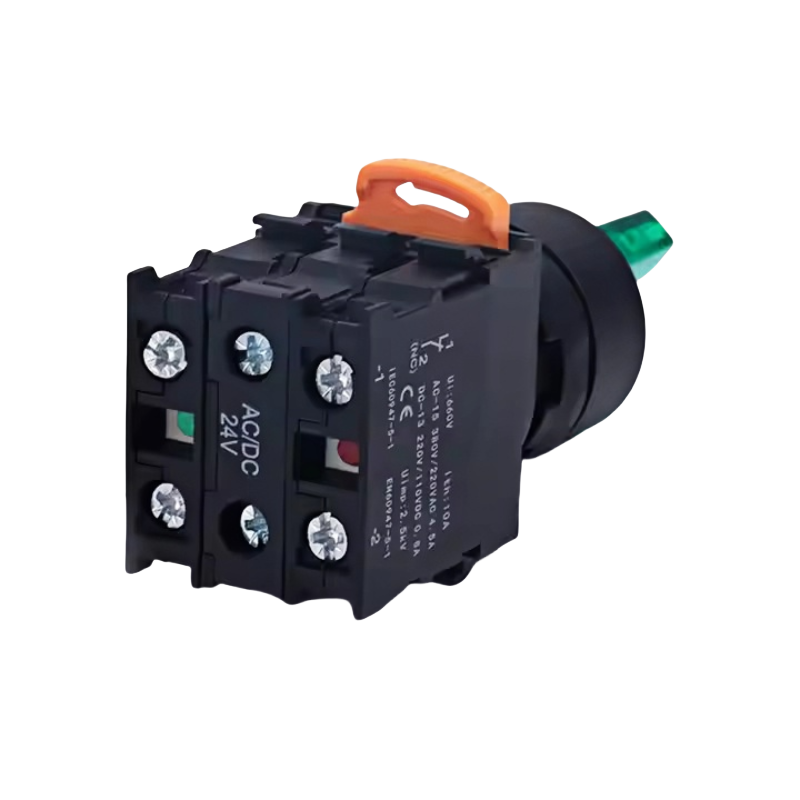

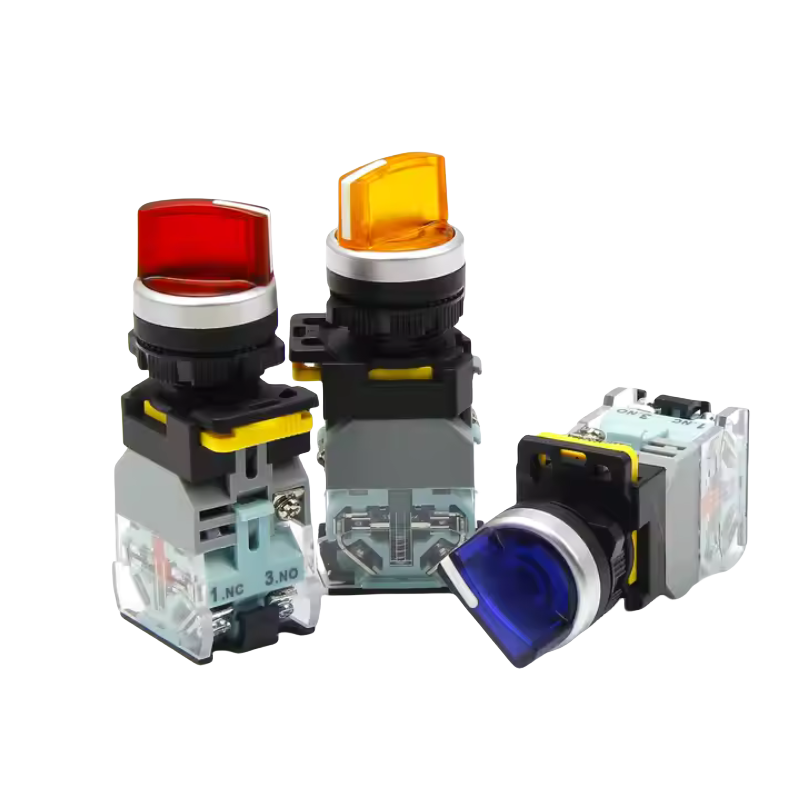

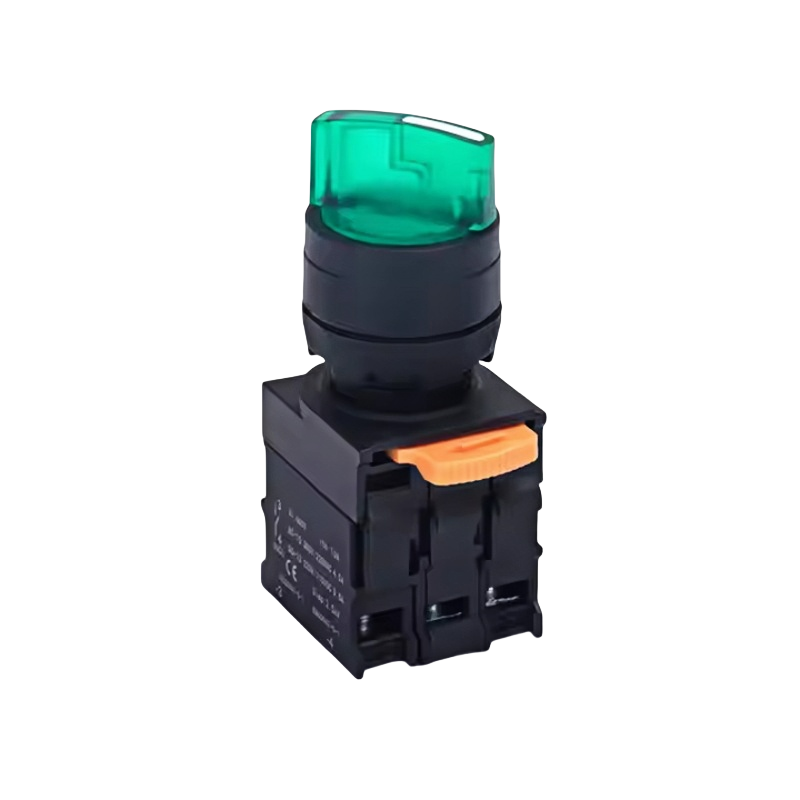

• Standard 22mm mounting size, compatible with mainstream industrial control panels for easy installation
• Dual position options: 2P (2-position) and 3P (3-position) to meet diverse gear control demands
• Two operation modes: maintained (latching) and momentary (reset) for flexible circuit logic design
• Integrated waterproof structure, suitable for humid, outdoor and wet industrial working environments

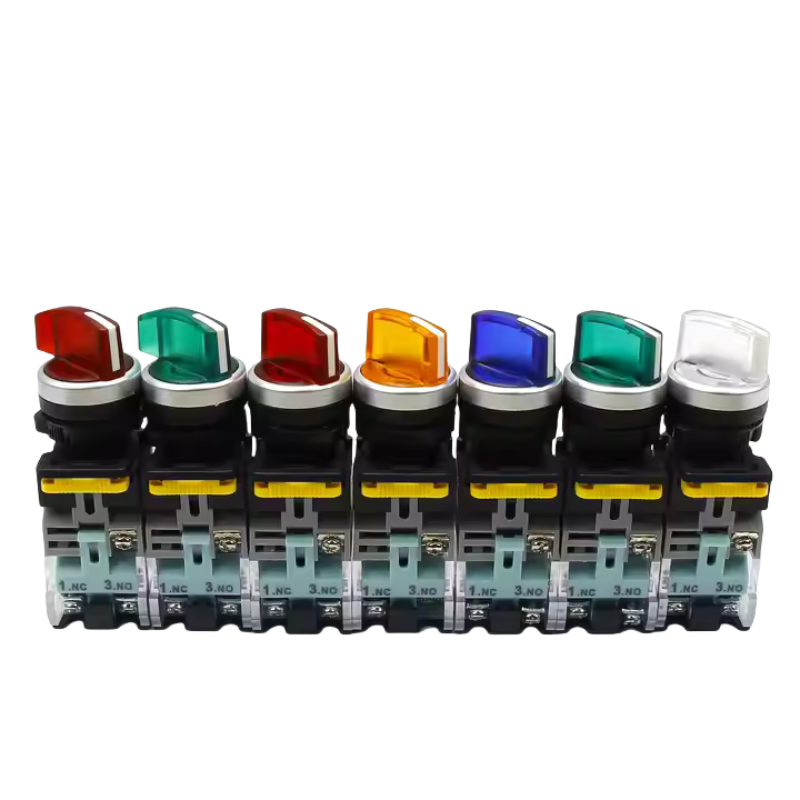

• Illuminated design with 5 optional LED colors: Blue, Green, Red, White, Yellow for clear status indication
• Standard 1NO1NC (1 Normally Open + 1 Normally Closed) contact configuration for signal switching
• High-quality silver contacts, low contact resistance, excellent conductivity and anti-oxidation ability
• Crimp type connection terminal, fast wiring, firm connection, ideal for mass assembly
• Plastic bezel and plastic shell, lightweight, good insulation and impact resistance
• Rotary head design with comfortable operation feel and precise gear positioning
• Visual LED reminder, real-time display of switch working status, improve operation safety
• Compact overall structure, space-saving for control cabinets and field equipment
• Durable construction, long service life and low failure rate for long-term frequent use
• Universal design, widely applied to various industrial equipment around the world

Full Technical Specifications

Product Attributes

• Mounting Dimension: 22mm Standard Panel Mount
• Position: 2P / 3P Optional
• Operation: Maintained + Momentary Dual Modes
• Protection: Waterproof Performance
• Contact: 1NO1NC, Silver Material
• Wiring: Crimp Connection
• Main Material: Plastic (Bezel & Shell)
• Head: Rotary Type
• Light Feature: Illuminated LED
• LED Colors: Blue, Green, Red, White, Yellow
• Core Strength: Waterproof, Visual Status, Multi-mode Selection

Product Advantages

This 22mm illuminated waterproof rotary switch is a professional control component for humid and outdoor environments. The standard 22mm size matches most industrial panels, bringing great convenience for installation. It supports 2-position and 3-position gears, as well as maintained and momentary two working modes, which can adapt to complex circuit control requirements. The built-in waterproof structure effectively resists moisture and water splash, expanding the application range to outdoor and wet workshops. Equipped with multi-color LED indicator lights, the switch working status is clearly visible at a glance, which helps operators judge the equipment state quickly. Adopting silver contacts and 1NO1NC classic structure, it ensures stable current transmission. The crimp terminal simplifies wiring work and is suitable for batch production and on-site wiring. The all-plastic body has good insulation and shock resistance. With reliable quality and diverse configurations, this switch meets the usage standards of global markets and is a cost-effective choice for industrial equipment in special environments.

Application Scenarios

This waterproof illuminated rotary switch is exported to Europe, North America, Southeast Asia and other regions, specially designed for equipment in humid and outdoor conditions.

• Outdoor engineering machinery and field operation equipment control panels
• Wet workshop machines and food processing equipment gear switches
• Outdoor power distribution boxes and waterproof low-voltage control systems
• Marine auxiliary equipment and waterfront electromechanical control components
• Industrial automation devices with high humidity working conditions
• Commercial outdoor electrical appliances and waterproof function selector knobs

FAQ

1. What mounting size and position options does this switch have?
The standard mounting size is 22mm, and it is available in 2-position (2P) and 3-position (3P) versions.

2. What operation modes are supported?
It supports two operation modes: maintained (latching) and momentary (reset).

3. Does this switch have waterproof performance?
Yes, it is designed with waterproof structure, suitable for humid and outdoor working environments.

4. What is the contact structure and material?
It adopts 1NO1NC contact configuration, and the contact material is silver for stable conduction.

5. What type of terminal does it use for wiring?
The terminal is crimping type, which realizes fast and firm wiring connection.

6. Is this switch equipped with indicator lights? What colors are available?
It is an illuminated rotary switch; optional LED colors include Blue, Green, Red, White and Yellow.

7. What are the materials of bezel and shell?
Both the bezel and outer shell are made of plastic with good insulation performance.

8. What is the difference between maintained and momentary modes?
Maintained mode keeps the gear position after rotation; momentary mode will automatically reset when released.

9. What kinds of equipment is this switch suitable for?
It is widely used for outdoor machinery, humid environment equipment and industrial control systems worldwide.

The post 22mm Rotary Switch Illuminated 2P/3P Waterproof Maintained/Momentary appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• Standard 16mm mounting hole for small and medium equipment panel installation
• Classic red mushroom head design, easy to recognize and press in emergency
• IP65 professional dustproof and waterproof rating for harsh workshop environment
• Rotary reset structure, simple and quick to restore working state
• Dual operation mode: Maintained latching / Momentary self-resetting optional
• Two contact combinations: 1NO+1NC , 2NO+2NC for circuit matching
• Full plastic bezel and shell material, lightweight and cost-effective
• Non-illuminated design, suitable for conventional mechanical safety control
• Silver contact material, stable conduction, anti-aging and long service life
• Compact structure, easy to install, integrate and replace
• Professional emergency shutdown function to protect personnel and machine safety

Technical Specifications

Product Attributes

• Bezel: Plastic
• Shell Material: Plastic
• Head Material: Plastic
• Head Type: Mushroom
• Head Color: Red
• Lamp: Non-Illuminated
• Contact Material: Silver
• Contact Operation: 1NO+1NC , 2NO+2NC

Product Advantages

This 16mm IP65 mushroom head emergency stop switch adopts integrated plastic structure and obvious red mushroom head appearance. It supports rotary reset, maintained and momentary dual working modes, with two contact options of 1NO1NC and 2NO2NC to meet different circuit design needs. IP65 dustproof and waterproof performance adapts to dusty, humid factory workshops. Silver contact ensures stable electrical performance, non-illuminated design is simple and practical, compact and easy to install, cost-effective for various small and medium industrial equipment safety emergency stop control.

Applications

• 16mm panel IP65 mushroom head emergency stop button for dusty humid workshop
• Small and medium automation machinery non-illuminated safety E-stop switch
• Packaging equipment, conveyor line and processing machine emergency shutdown button
• Electrical control cabinet mechanical equipment rotary reset safety button
• Light industrial machinery DIY equipment 1NO1NC 2NO2NC emergency switch

FAQ

1. What is the mounting hole size?
Standard 16mm mounting hole, suitable for 16mm reserved panel installation.

2. What protection level does it have?
IP65 dustproof and waterproof grade, can be used in humid and dusty workshop environment.

3. What operation modes are available?
Supports maintained latching and momentary self-resetting two types, with rotary reset way.

4. What contact combinations are optional?
1NO+1NC and 2NO+2NC two contact configurations for different circuit requirements.

5. Is this button illuminated?
No, it is non-illuminated version, belongs to pure mechanical emergency stop control.

6. What material is the shell and head?
Adopt full plastic material, light weight, cost-effective and durable for conventional industrial use.

The post 16mm Mushroom Head Emergency Stop Switch with 1NO1NC Contacts IP65 Rated Maintained/Momentary Rotary Reset appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• Two standard mounting sizes: 19mm and 22mm for diverse panel installation demands
• 2-position and 3-position optional rotary modes for flexible circuit switching
• Flat head design with key locking function for reliable access security
• Metal bezel and chromium plated brass shell, sturdy and wear-resistant
• Gold contact and gold pin, excellent conductivity and anti-oxidation performance
• Dual contact configurations: 1NO+1NC and 2NO+2NC for multiple circuits
• Welding connection type for stable and firm wiring connection
• Non-illuminated structure, simple design and low failure rate
• Professional locking security design to prevent unauthorized operation
• Industrial grade durability for long-term continuous use
• Compact panel mount structure, easy to install and maintain

Technical Specifications

Product Attributes

• Mounting Size: 19mm / 22mm
• Operation Position: 2 Position / 3 Position
• Installation: Panel Mount
• Bezel: Metal
• Shell: Chromium Plated Brass
• Contact: Gold
• Pin: Gold
• Head Style: Flat
• Connection: Welding
• Contact Form: 1NO+1NC / 2NO+2NC
• Lamp: Non-Illuminated

Product Advantages

This key operated metal rotary switch is available in 19mm and 22mm two mainstream mounting sizes, compatible with most industrial control panels. It supports 2-position and 3-position switching, and provides two classic contact combinations to meet different circuit requirements. The whole switch adopts metal bezel and chromium plated brass shell, which is solid, anti-rust and durable. Gold contacts and pins effectively avoid oxidation and ensure stable electrical transmission. Adopting welding connection, the wiring is firm and not easy to loose. The flat key head with locking function can effectively restrict unauthorized operation and improve equipment safety. Non-illuminated design simplifies the structure and reduces failure points, which is an ideal security switching component for industrial equipment.

Applications

• Industrial control panel key-locked power and circuit switching control
• Automation equipment permission management and anti-misoperation switch
• Electrical cabinet and distribution box locking type rotary selector switch
• Mechanical equipment operating panel safety access control component
• Public equipment and special machinery security locking switch

FAQ

1. What mounting sizes does this rotary switch have?
It has two standard sizes: 19mm and 22mm for panel installation.

2. How many position modes are optional?
It supports 2-position and 3-position rotary selection modes.

3. What are the materials of shell, contact and pin?
The shell is made of chromium plated brass, while both contact and pin adopt gold material.

4. What contact configurations can I choose?
Two options: 1NO+1NC and 2NO+2NC for different circuit designs.

5. What is the connection way and head type?
It uses welding connection, and the operation head is flat style.

6. Does this switch have an indicator lamp?
No, it is non-illuminated type without built-in indicator lamp.

7. What are the main application scenarios?
It is widely used for industrial panels, mechanical equipment and electrical cabinets that need locking and security control.

The post 19mm 22mm Key Operated Metal Rotary Switch 2&3 Position Panel Mount Locking Security Switch appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• Standard 19mm mounting size, widely compatible with mainstream industrial control panels and equipment housings
• 3-position selection design, flexible for multi-gear circuit switching and mode adjustment
• 12V built-in LED lamp, clear status display, ideal for low-light and dim industrial environments
• Excellent waterproof performance, adapts to humid, splash and outdoor working conditions
• Two optional contact combinations: 1NO+1NC and 2NO+2NC for diverse circuit demands
• Silver contacts plus gold-plated pins, ultra-low resistance, outstanding conductivity and anti-oxidation
• High-grade materials: stainless steel + chromium plated brass shell, sturdy and corrosion-resistant
• Welding terminal design, firm connection, suitable for PCB soldering and fixed wiring
• Full metal construction, high mechanical strength, anti-collision and long service life
• Integrated sealing structure, stable performance after long-term use in harsh environments
• Compact metal body, exquisite workmanship, matching various industrial equipment styles
• Universal industrial design, compliant with global usage requirements for export sales

Full Technical Specifications

Product Attributes

• Mounting Dimension: 19mm Standard Panel Hole
• Gear: 3-Position Multi-gear Selection
• Lighting: 12V LED Illuminated Indicator
• Protection Grade: Waterproof
• Contact Type: 1NO+1NC / 2NO+2NC Dual Options
• Contact: Silver Material
• Pin: Gold Plated
• Bezel: Stainless Steel
• Shell: Chromium Plated Brass
• Terminal: Welding / Solder Connection
• Core Strength: Metal Body, Waterproof, Low-light Visible, Anti-corrosion

Product Advantages

This 19mm all-metal waterproof rotary switch is engineered for harsh industrial environments. The 19mm standard size ensures great compatibility with most control panels. The 3-position design meets multi-mode switching needs for complex circuits. The 12V LED indicator delivers clear status feedback, which is a huge advantage for workshops, vehicles and other low-light scenarios. Equipped with two mainstream contact configurations, it can adapt to different control circuit designs. Silver contacts and gold-plated pins greatly reduce contact resistance and prevent oxidation, ensuring long-term stable conduction. The combination of stainless steel and chromium plated brass makes the whole switch anti-rust, anti-corrosion and impact resistant. The welding terminal provides reliable connection for PCB and fixed wiring. With integrated waterproof sealing, it works steadily in humid and splash environments. This durable metal switch is a premium choice for industrial, automotive and outdoor electrical systems worldwide.

Application Scenarios

This metal waterproof rotary switch is widely exported to Europe, North America, Southeast Asia and other global regions, focusing on metal equipment, outdoor facilities and low-light working scenes.

• Industrial machinery and equipment in dim workshops, 3-gear mode selector switches
• Automotive electrical systems and vehicle interior multi-function control knobs
• Outdoor electromechanical devices and field operation waterproof control components
• Marine equipment and waterfront low-voltage circuit switching parts
• Testing instruments and measuring devices used in low-light laboratories
• Custom industrial control modules and special environmental electrical equipment

FAQ

1. What is the mounting size and gear position of this rotary switch?
The standard mounting diameter is 19mm, and it is a 3-position rotary switch for multi-gear selection.

2. What is the voltage of the built-in indicator light?
The LED indicator works at 12V, which can clearly display the switch status in low-light areas.

3. Does this switch have waterproof function?
Yes, it adopts sealed structure with excellent waterproof performance for humid and splash environments.

4. What contact types are available?
It provides two optional contact combinations: 1NO+1NC and 2NO+2NC.

5. What are the materials of contacts and pins?
The contacts are made of silver; the pins adopt gold-plated process for better conductivity and anti-oxidation.

6. What materials are used for bezel and outer shell?
The bezel is stainless steel, and the shell is made of chromium plated brass, sturdy and anti-corrosion.

7. What kind of connection terminal does it use?
It is a welding (solder) terminal, suitable for PCB soldering and fixed wiring.

8. What are the core advantages of the all-metal structure?
Full metal construction features high strength, impact resistance, rust and corrosion resistance for long service life.

9. What equipment is this switch mainly used for?
Widely applied to industrial machinery, automotive devices, outdoor equipment and low-light instruments worldwide.

The post 19mm Waterproof Metal Rotary Switch 3-Position 12V LED Stainless Steel appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• Standard 16mm mounting size, compatible with mainstream industrial control panels and equipment cabinets
• IP65 high-level waterproof & dustproof rating, works stably in humid, dusty and splash environments
• Full metal construction with precision CNC manufacturing, burr-free, anti-collision and pressure-resistant
• 1NO1NC standard contact combination, stable signal and power switching for low-current circuits
• Built-in ring illuminated LED, clear status indication for easy operation observation
• Screw terminal design, simple wiring, firm connection, convenient for on-site assembly and maintenance
• Rated 3A 250VAC, suitable for most industrial low-voltage AC control systems
• Free matching accessories: waterproof sealing ring and mounting nut, save procurement cost
• Long service life design, durable for long-term frequent rotation operation
• Pure mechanical structure without smart modules, low failure rate and high reliability
• Exquisite appearance and tight sealing structure, enhance overall waterproof performance
• Universal industrial design, compliant with global usage demands for export sales

Full Technical Specifications

Product Attributes

• Installation Dimension: 16mm Standard Panel Mount
• Protection Grade: IP65 (Full Waterproof & Dustproof)
• Electrical Rating: 3A Max, 250VAC Max
• Contact Type: 1NO1NC (1 Normally Open + 1 Normally Closed)
• Light Style: Ring Illuminated LED
• Terminal: Screw Terminal for Easy Wiring
• Body Material: Metal
• Structure: Pure Mechanical (Non-smart)
• Craft: Precision CNC Machining
• Attached Parts: Waterproof Ring & Mounting Nut (Free)
• Core Strength: IP65 Protection, Durable Metal Body, Complete Accessories

Product Advantages

This 16mm industrial rotary switch is a high-performance control component specially designed for harsh working environments. It reaches IP65 protection level, which can effectively resist water splash and dust invasion. The whole body is made of metal and processed by precision CNC technology, featuring smooth surface, strong impact resistance and compression resistance. Equipped with ring LED indicator, the working state is clearly visible at a glance. Adopting 1NO1NC classic contact structure and 3A 250VAC electrical specification, it fully meets the demand of industrial low-voltage AC circuits. The screw terminal is convenient for wiring and later maintenance. Each product is equipped with a free waterproof sealing ring and mounting nut, which perfectly fits the thread structure and further strengthens the waterproof effect while simplifying installation. As a pure mechanical switch, it has a simple internal structure, low failure rate and long service life. With reliable quality and complete supporting parts, it is widely recognized in global industrial markets.

Application Scenarios

This IP65 waterproof rotary switch is sold to Europe, North America, Southeast Asia and other global regions, mainly used for industrial control equipment in humid and dusty environments.

• Indoor and outdoor industrial control cabinets and power distribution panel switches
• Workshop machinery and production line equipment mode control knobs
• Humid workshop, food processing and washing equipment control components
• Outdoor engineering machinery and field operation electrical control parts
• Low-voltage electrical systems and general industrial electrical devices
• Laboratory instruments and industrial testing equipment function selectors

FAQ

1. What is the installation size and IP protection level?
The standard mounting size is 16mm, and the protection grade is IP65, with excellent waterproof and dustproof performance.

2. What are the maximum current and voltage parameters?
Max current: 3A, Max voltage: 250VAC, suitable for industrial low-voltage AC circuits.

3. What is the contact type and terminal style?
It adopts 1NO1NC contact combination and is equipped with screw terminals for wiring.

4. Does this switch have an indicator light? What type is it?
Yes, it has a ring illuminated LED to display the working status clearly.

5. What material and manufacturing technology are used?
The main body is made of metal and manufactured by precision CNC cutting process, anti-collision and durable.

6. Are there free supporting accessories?
Yes, each product is equipped with a complimentary waterproof sealing ring and mounting nut.

7. What is the function of the matching sealing ring and nut?
The nut fits the switch thread for fast installation; the sealing ring enhances the overall waterproof effect.

8. Does this product have smart functions?
No, it is a pure mechanical industrial switch without any smart modules.

9. What working environments and equipment is it suitable for?
It is suitable for humid and dusty industrial sites, widely used in industrial control cabinets and various mechanical equipment worldwide.

The post 16mm, 19mm, 22mm high-quality waterproof rotary switch – industrial-grade control switch appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• 19mm standard mounting hole, compatible with most industrial control panels and equipment housings for universal installation
• IP67 high waterproof & dustproof grade, fully adapts to wet, dusty and outdoor harsh working environments
• 3-position main design with momentary self-reset function, also supports 2-position maintained & momentary modes
• 6-pin terminal layout, equipped with 2NO2NC (2 Normally Open + 2 Normally Closed) contact structure for dual-circuit control
• Dual connection options: solder terminal and plug-in terminal, flexible for different wiring demands
• Stainless steel enclosure, anti-rust, anti-corrosion and high mechanical strength for long service life
• Silver contacts and silver pins, ultra-low contact resistance ≤50mΩ, stable current transmission
• Excellent electrical performance: min 1000MΩ insulation resistance, withstand 2000VAC dielectric strength
• Wide operating temperature: -20℃ ~ +55℃, works stably in cold and normal temperature environments
• Rotary head design with precise gear positioning, comfortable operation and clear switching feedback
• Pure mechanical structure without smart modules, low failure rate and easy daily maintenance
• Compact integrated structure, saves installation space for dense control cabinets and machinery
• Strict industrial standards, reliable quality for export to global industrial markets

Full Technical Specifications

Product Attributes

• Mounting Size: 19mm Standard Panel Hole
• IP Grade: IP67 Full Waterproof & Dustproof
• Core Mode: 3 Position Momentary (Self Reset)
• Optional Mode: 2 Position Maintained / Momentary
• Pins: 6 Pins
• Contact: 2NO2NC Dual Circuit Structure
• Terminal: Solder & Plug-in Dual Wiring
• Housing: Stainless Steel
• Contact & Pin: Silver Material
• Contact Resistance: ≤50 mΩ
• Insulation Resistance: ≥1000 MΩ
• Withstand Voltage: 2000 VAC
• Temp Range: -20℃ ~ +55℃
• Structure: Pure Mechanical (Non-smart)
• Core Strength: IP67 Protection, Dual Wiring, Multi-mode Selection

Product Advantages

This 19mm IP67 waterproof rotary switch is a high-performance industrial control component designed for harsh environments. With IP67 top-level waterproof and dustproof capability, it can work reliably in rainy, splash and heavy dust scenes. The main 3-position momentary self-reset function meets the demand for temporary signal triggering, and it also supports 2-position maintained and momentary modes for diversified circuit design. The 6-pin and 2NO2NC structure realizes synchronous control of two independent circuits, greatly improving equipment integration. It provides solder and plug-in dual wiring solutions, adapting to manual wiring and PCB assembly in different scenarios. Made of stainless steel shell and silver contacts/pins, the product features anti-corrosion, low resistance and stable conduction. Excellent electrical indicators and wide temperature adaptability ensure stable operation all year round. As a pure mechanical switch, it has simple structure and low failure rate. Fast delivery cycle also supports bulk procurement for industrial projects. It is a cost-effective choice for global industrial automation and mechanical equipment.

Application Scenarios

This IP67 self-reset rotary switch is widely exported to Europe, North America, Southeast Asia and other global regions, specially used for equipment in wet and dusty industrial environments.

• • Industrial automation production lines and temporary trigger control components
  • Outdoor engineering machinery and field operation equipment selector knobs
  • Wet workshop equipment, food machinery and washing industry control switches
  • Dust-prone workshop machinery and metallurgical equipment circuit controllers
  • Low-voltage dual-circuit control cabinets and power distribution auxiliary parts
  • Marine equipment and waterfront electromechanical device mode selectors

FAQ

1. What is the mounting size and IP protection level?
The standard mounting hole is 19mm, and the protection grade reaches IP67 with excellent waterproof and dustproof performance.

2. What are the main operation mode and position?
The main design is 3-position with momentary self-reset function; it also supports 2-position maintained and 2-position momentary modes.

3. How many pins and what contact configuration does it have?
It is equipped with 6 pins and adopts 2NO2NC (2 Normally Open + 2 Normally Closed) dual-circuit contact structure.

4. What wiring types are available?
It supports two connection ways: solder terminal and plug-in terminal for flexible use.

5. What are the materials of shell, contacts and pins?
The enclosure is stainless steel; both contacts and pins are made of silver for good conductivity.

6. What are the key electrical parameters?
Max contact resistance 50mΩ, min insulation resistance 1000MΩ, dielectric strength up to 2000VAC.

7. What is the working temperature range?
It can operate stably within -20℃ to +55℃.

8. Does this switch have smart functions?
No, it is a pure mechanical rotary switch without any smart modules.

9. What kind of equipment and environments is it suitable for?
It is widely used in industrial machinery, automation equipment and other devices working in wet, dusty harsh environments worldwide.

The post 19mm Momentary Waterproof 6 Pin Rotating Select Switch 2NO2NC 3 Position Self Reset Selector Switch Rotary Switches appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.
