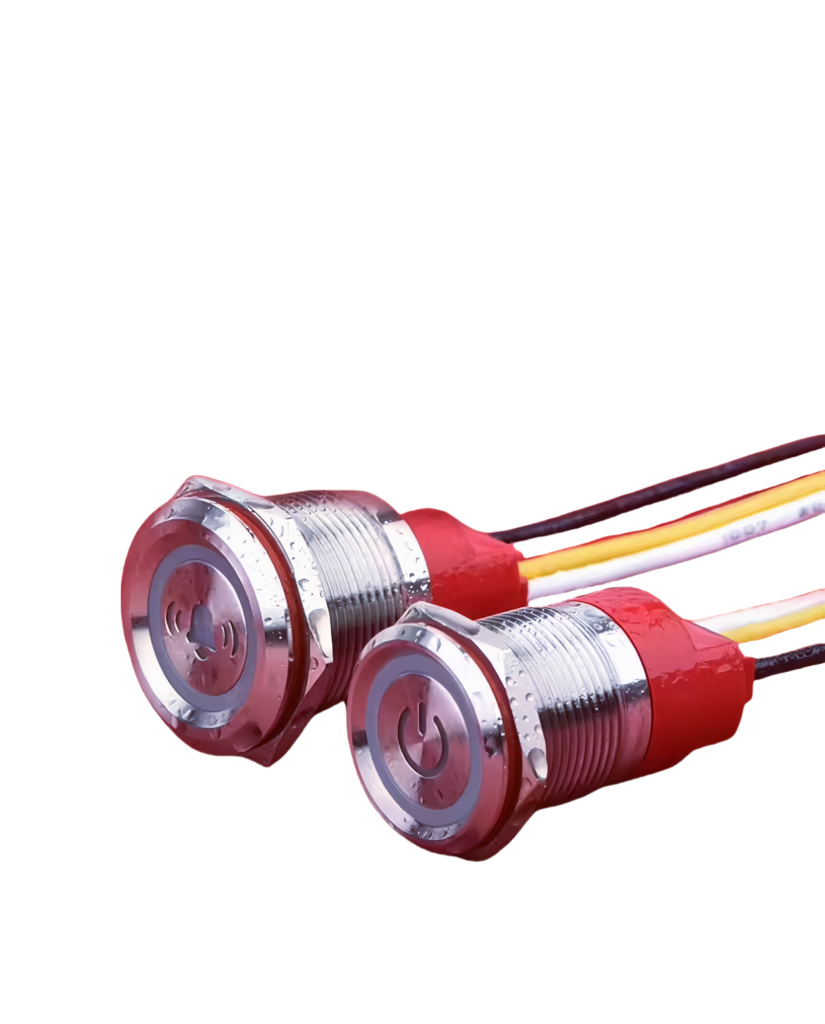

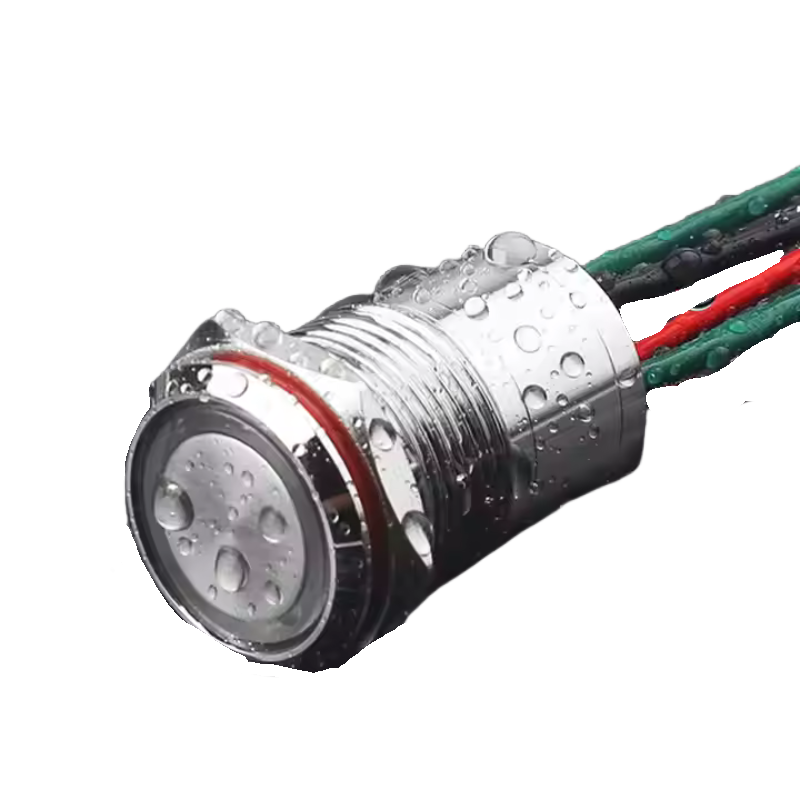

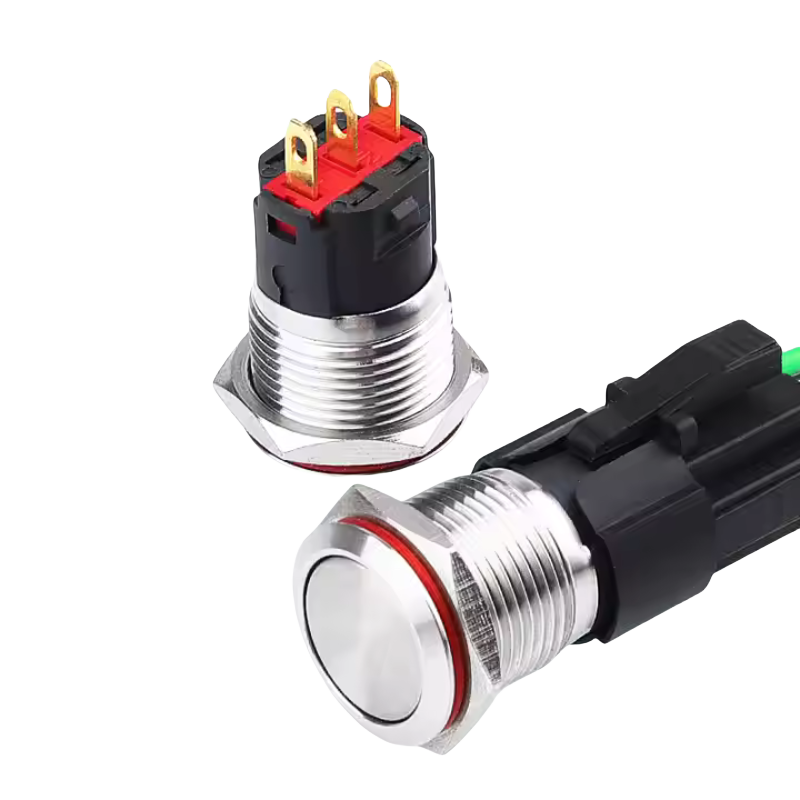

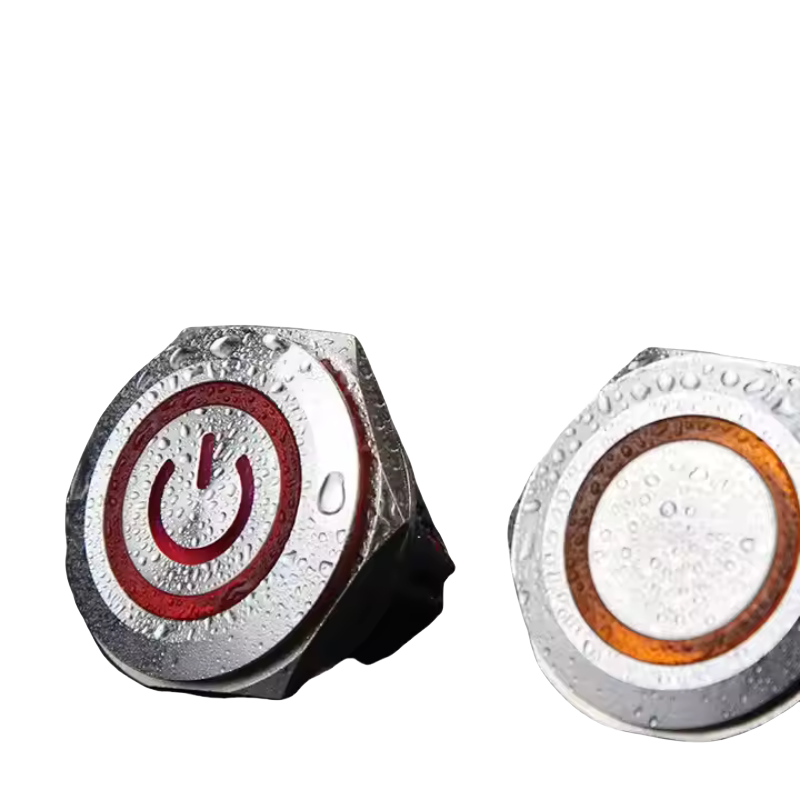

• 16mm standard mounting hole size
• 15A high current for heavy-duty power control
• IP68 highest waterproof & dustproof protection
• Self-locking (latching) & momentary operation optional
• Ring LED with power symbol for clear indication
• Flat head for standard panel installation
• Silver-plated contacts & pins for stable conductivity
• Plug-in & welding connection optional
• 1NO+1NC contact configuration
• Durable metal structure for long service life

Product Advantages

This 16mm 15A IP68 waterproof metal push button switch is designed for extreme and harsh working environments. IP68 highest waterproof rating ensures stable performance in submerged, wet and dusty conditions. 15A high current supports heavy-duty power control applications. Self-locking and momentary modes meet different operation needs. Ring LED with power symbol provides intuitive and clear status indication. Silver-plated contacts ensure excellent conductivity and long mechanical life.

Applications

• Industrial control & heavy-duty equipment
• Outdoor & waterproof electrical systems
• Marine, boat & submerged environment devices
• Automotive & vehicle modification
• Power start/stop & safety control panels
• IP68 required harsh environment equipment

FAQ

1. What is the mounting size?
Standard 16mm mounting hole size.

2. What is the rated current?
15A high current for heavy-duty power control.

3. Is this switch IP68 waterproof?
Yes, it has IP68 highest waterproof and dustproof protection.

4. Does it support self-locking and momentary?
Yes, both self-locking (latching) and momentary are optional.

5. Does it have LED power symbol?
Yes, it uses ring LED with power symbol indication.

The post 16mm 15A IP68 Waterproof Metal Push Button Switch Self-locking Instantaneous Loop Power Supply Mark appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

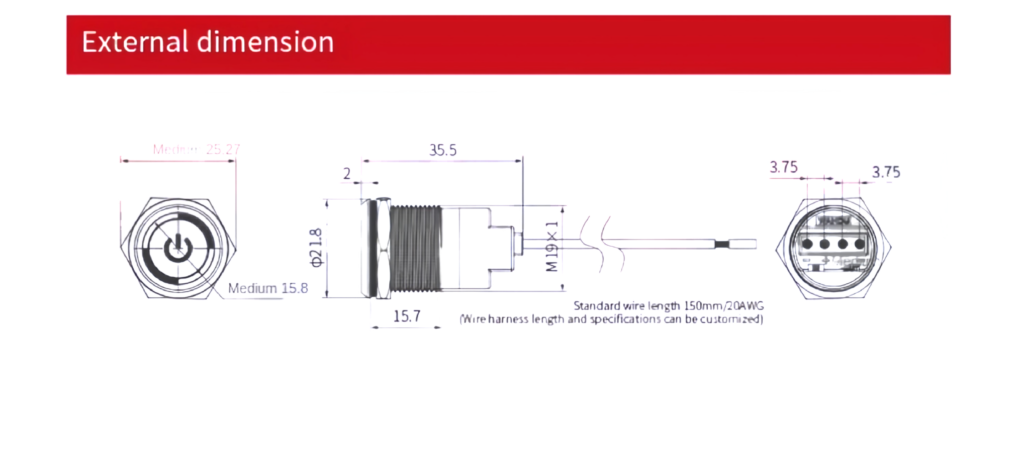

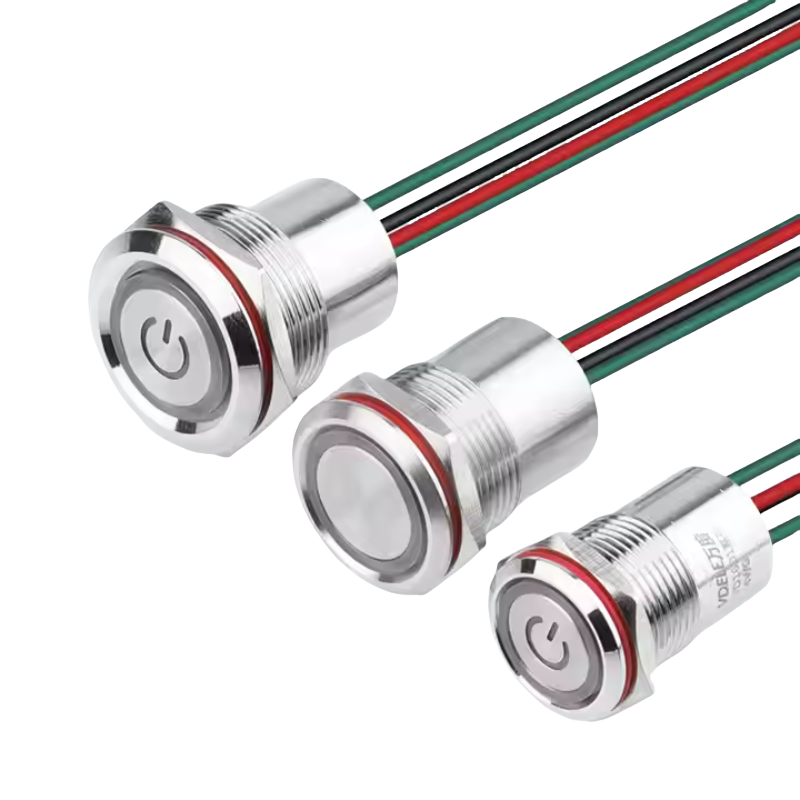

• 19mm standard mounting hole size
• Touch dimmer control for lighting systems
• Momentary & latching (latch) operation optional
• Red & green dual LED status indication
• IP67 waterproof & dustproof protection

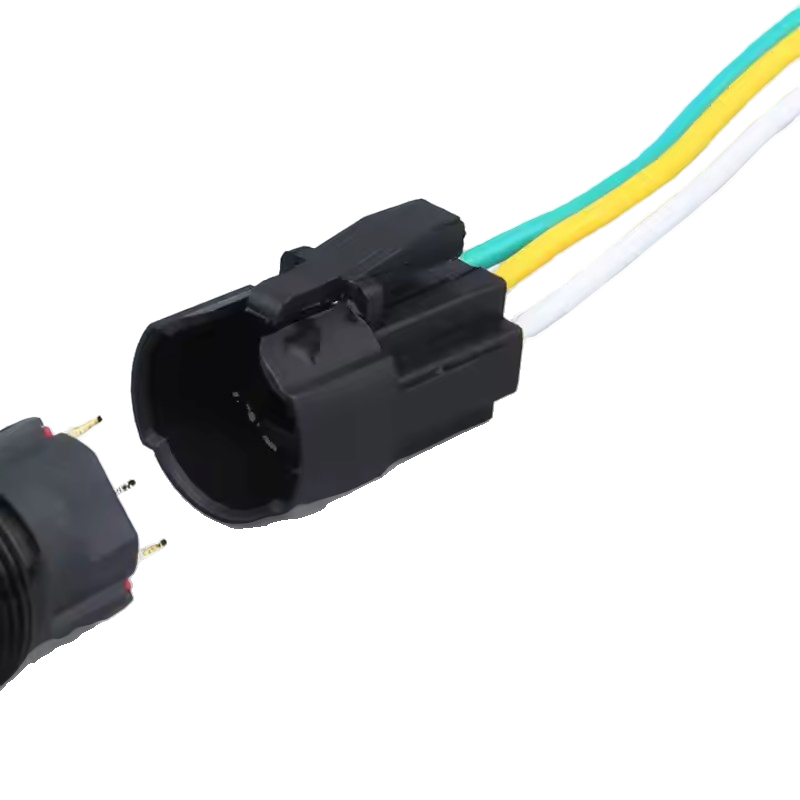

• 150mm standard wiring harness (customizable)
• 1NO+1NC contact configuration
• Silver-plated contacts for stable conductivity
• Metal round head for durable use
• Plug-in connection for quick installation

Product Advantages

This 19mm touch dimmer metal push button switch is designed for lighting and dimmer control systems. It supports touch dimming and dual operation modes: momentary and latching. Red and green LED provides clear status indication. IP67 waterproof rating ensures stable performance in humid, outdoor and harsh environments. The 150mm wiring harness supports quick and easy installation with customizable length options. It is widely used in automotive, marine, home appliance and industrial light control.

Applications

• Lighting dimmer & brightness control
• Automotive & vehicle interior light control
• Marine, boat & outdoor lighting systems
• Home appliance & smart light control panels
• Industrial equipment light & indicator control
• DIY light modification & custom projects

FAQ

1. What is the mounting size?
Standard 19mm mounting hole size.

2. Does it support touch dimmer function?
Yes, it is a touch dimmer switch for lighting control.

3. What LED colors does it have?
Red and green dual LED for status indication.

4. Is it IP67 waterproof?
Yes, it has IP67 waterproof and dustproof protection.

5. How long is the wiring harness?
Standard 150mm, length can be customized.

The post 19mm Touch Dimmer Switch Metal Push Button Switch Momentary/Latch Sensor Switch for Light Red and Green with 150mm Harness appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

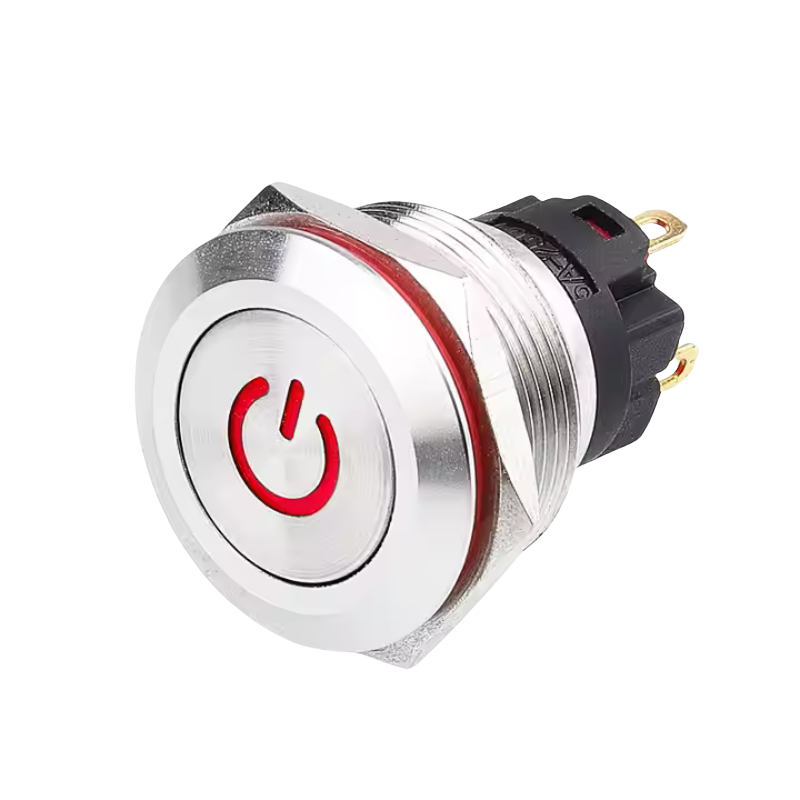

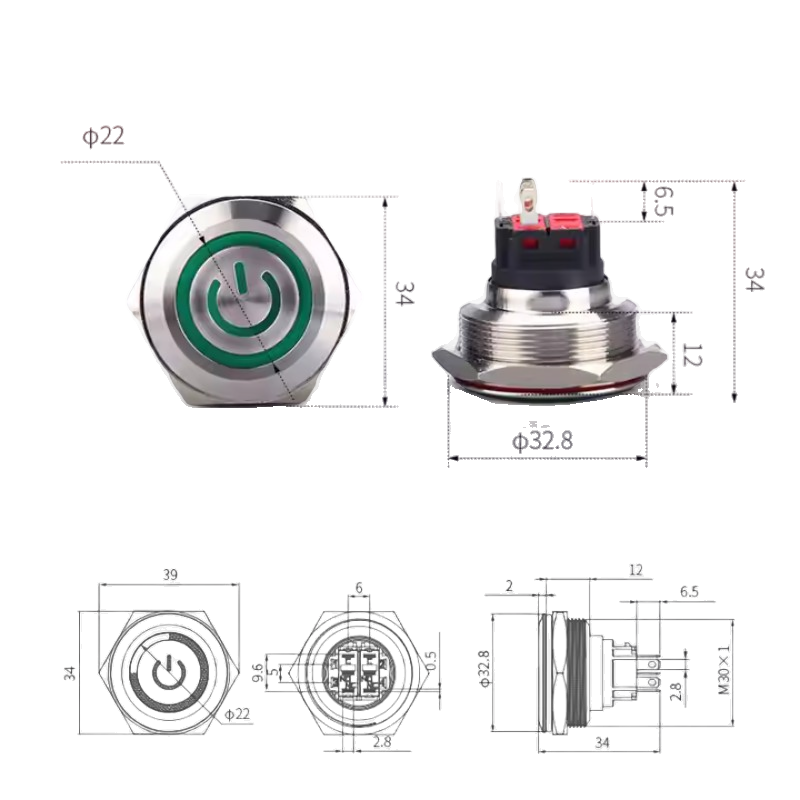

• 22mm standard mounting hole size
• Rated current: 5A, stable performance
• IP67 waterproof & dustproof protection
• Latching (self-locking) & momentary (self-reset) optional
• LED illuminated with multi-color options
• Ring / power symbol / dot LED types
• Flat head & high round head available
• 1NO+1NC contact configuration
• Stainless steel / aluminum oxide / copper plated
• Plug-in connection for quick installation

Product Advantages

This 22mm metal push button switch provides reliable control for industrial and electrical equipment. 5A rated current ensures safe and stable operation. IP67 waterproof rating adapts to humid, outdoor and harsh environments. It supports both latching and momentary modes to meet different control needs. Rich LED colors and multiple head styles offer flexible choices. Silver-plated contacts and sturdy metal housing guarantee long service life.

Applications

• Industrial control panels & automation equipment
• Waterproof power start/stop systems
• Automotive, marine & outdoor devices
• Instrument & electrical control panels
• Home appliances & machinery operation
• Various 5A power control applications

FAQ

1. What is the mounting size?
Standard 22mm mounting hole size.

2. What is the rated current?
5A for safe and stable control.

3. Is this switch IP67 waterproof?
Yes, it has IP67 waterproof and dustproof protection.

4. Does it support latching and momentary modes?
Yes, both latching and momentary are optional.

5. What LED types are available?
Ring, power symbol and dot LED are optional.

The post 22MM Metal Push Button Switch Waterproof 5A Current Led Switch Ip67 Self-locking/self-healing appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

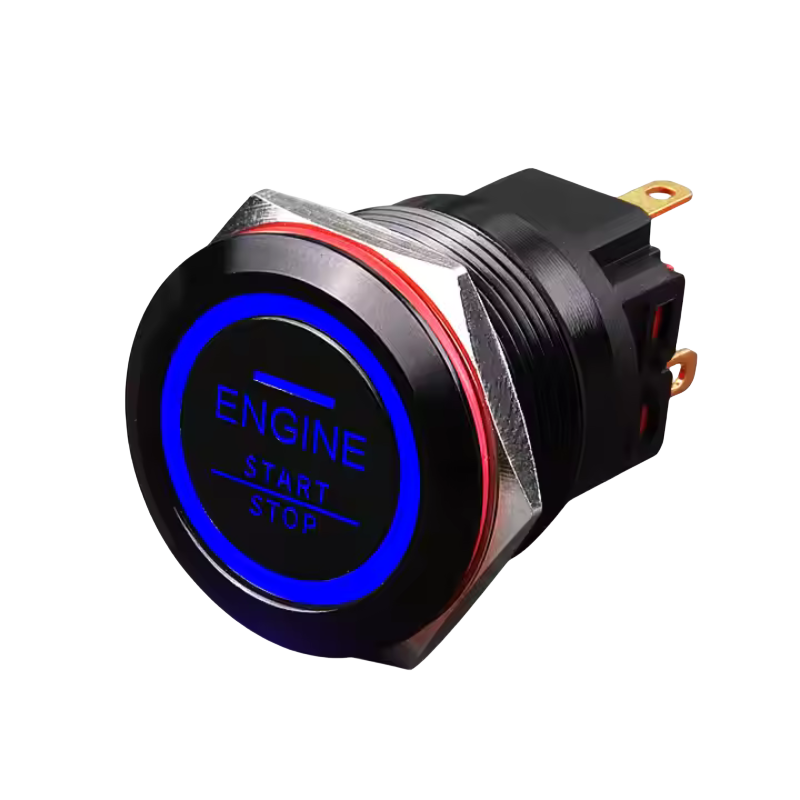

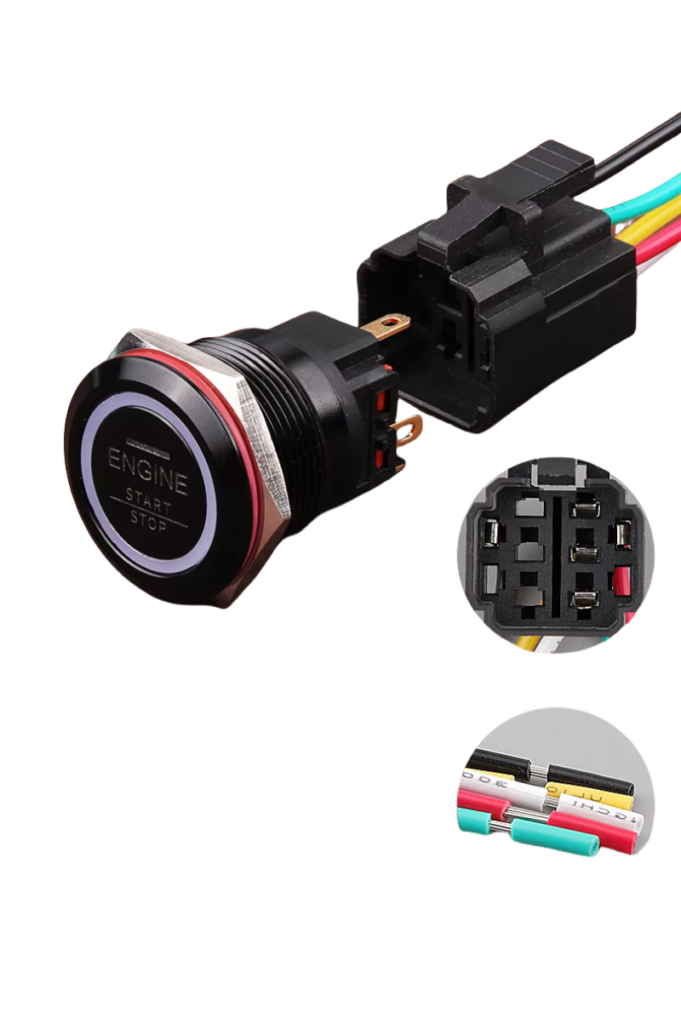

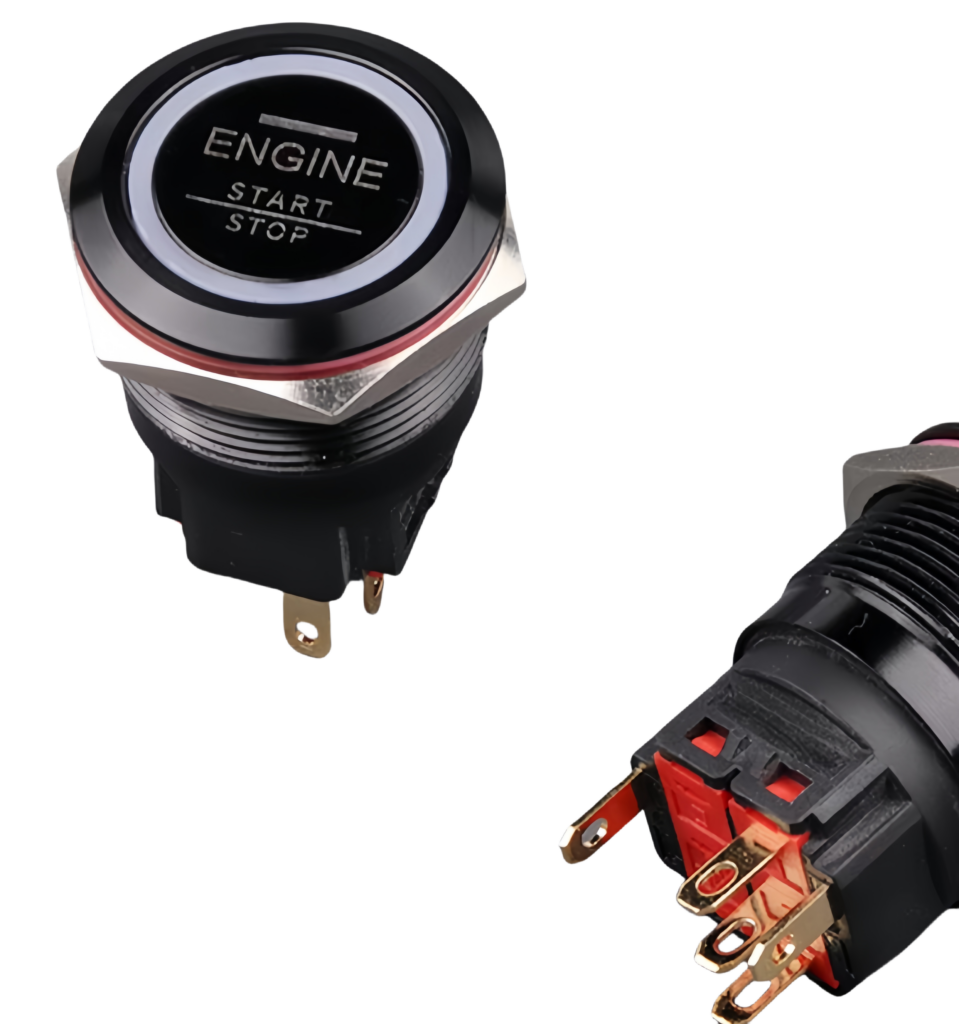

• 22mm standard mounting hole size
• Black oxidized metal finish, stylish & durable
• 5A high current for stable power control
• IP67 waterproof & dustproof protection
• Self-locking & momentary operation optional
• LED ring illuminated for clear status indication
• Engine start / one-click start marking
• 1NO + 1NC contact configuration
• Silver-plated contacts & pins for reliability
• Plug-in connection for quick installation

Product Advantages

This 22mm 5A black metal push button switch is specially designed for engine start and equipment power control. Black metal appearance provides stylish look and corrosion resistance. IP67 waterproof rating ensures stable performance in wet and harsh environments. 5A current supports reliable power control. Start marking and LED indication make operation intuitive. It supports both self-locking and momentary modes with 1NO1NC contacts for versatile control systems.

Applications

• Engine start & stop control systems
• Automotive, motorcycle, boat modification
• Industrial machinery & equipment panels
• Black style control & instrument panels
• One-click start & power control devices
• Waterproof outdoor & heavy-duty equipment

FAQ

1. What is the mounting size?
Standard 22mm mounting hole size.

2. What is the rated current?
5A for stable power control.

3. Is this switch IP67 waterproof?
Yes, it has IP67 waterproof and dustproof protection.

4. Does it support self-locking and momentary?
Yes, both self-locking and momentary are optional.

5. Is it with start mark and LED?
Yes, it has engine start marking and ring LED illumination.

The post 22mm 5A Black Metal Push Button Switch LED Self-locking/momentary One-click Start Mark Push Button Switch 1NO1NC appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

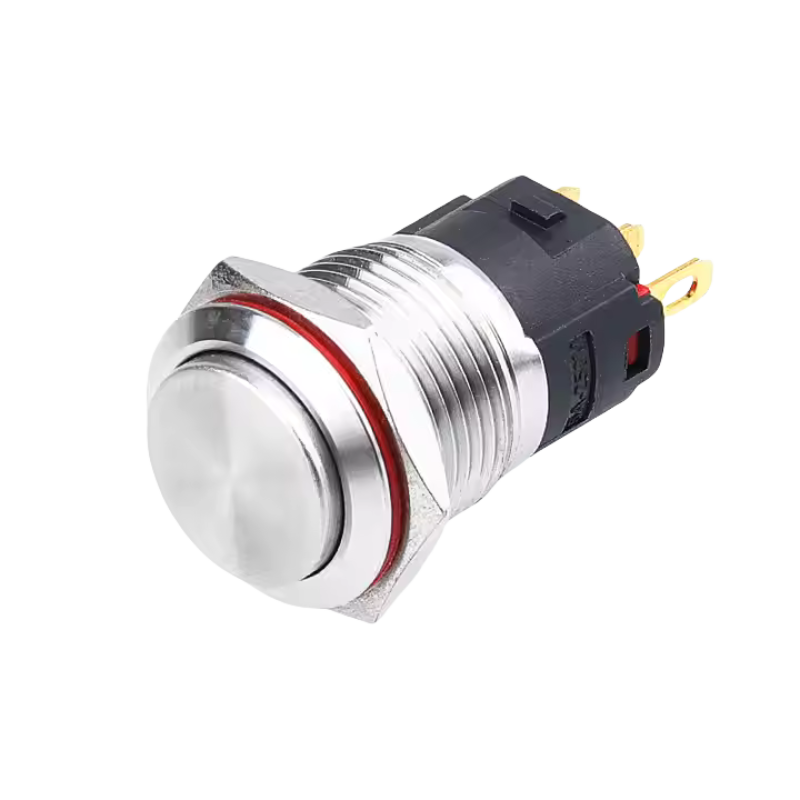

• 16mm standard mounting hole size
• Non-illuminated (without light) design
• IP67 waterproof & dustproof protection
• Latching (self-locking) & momentary operation optional
• Stainless steel metal housing for durability
• 1NO + 1NC contact configuration
• Silver-plated contacts for stable conductivity
• Flat head for standard panel installation
• Plug-in connection for quick wiring
• Ideal for doorbell, car horn & equipment control

Product Advantages

This 16mm non-illuminated metal push button switch is specially designed for doorbell, car horn and general equipment control. IP67 waterproof rating ensures stable performance in outdoor, wet and harsh environments. Stainless steel construction provides high durability and corrosion resistance. It supports both latching and momentary modes to meet different operation needs. Non-light design is suitable for minimalist and non-illuminated applications. Silver-plated contacts and plug-in connection ensure reliable performance and easy installation.

Applications

• Doorbell switch & access control systems
• Car horn, boat horn & vehicle control
• Industrial control & machinery operation
• Outdoor & waterproof equipment panels
• Low-voltage electrical & automation devices
• Non-illuminated minimalist control systems

FAQ

1. What is the mounting size?
Standard 16mm mounting hole size.

2. Does this switch have LED light?
No, it is non-illuminated (without light) design.

3. Is it IP67 waterproof?
Yes, it has IP67 waterproof and dustproof protection.

4. Does it support latching and momentary modes?
Yes, both latching and momentary are optional.

5. What is this switch used for?
Ideal for doorbell, car horn, industrial control and equipment operation.

The post 16mm Self-locking Instant Metal Push Button Switch Without Light, Waterproof IP67-level Doorbell and Car Horn appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

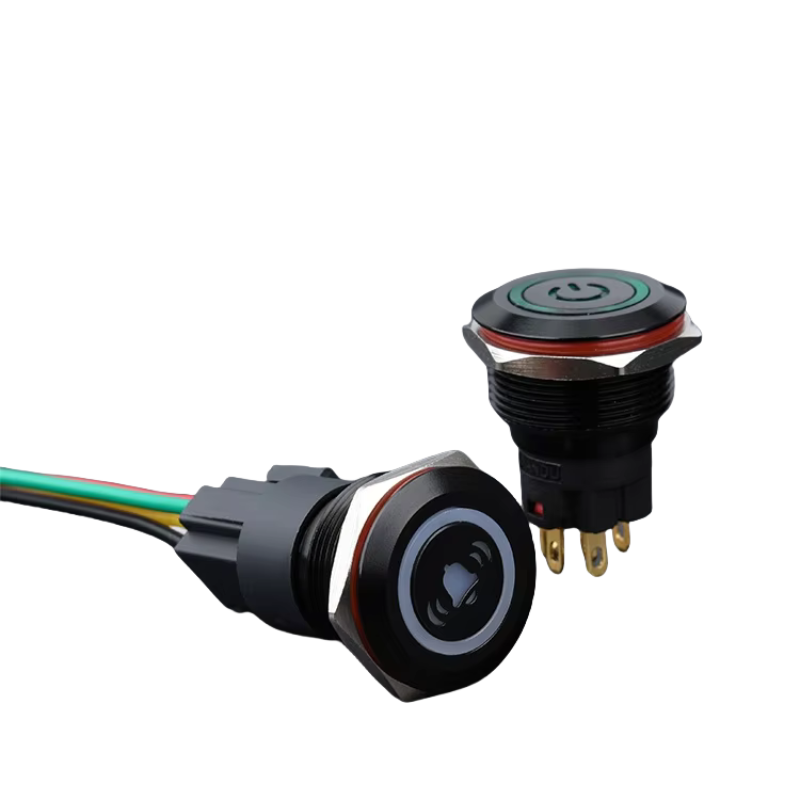

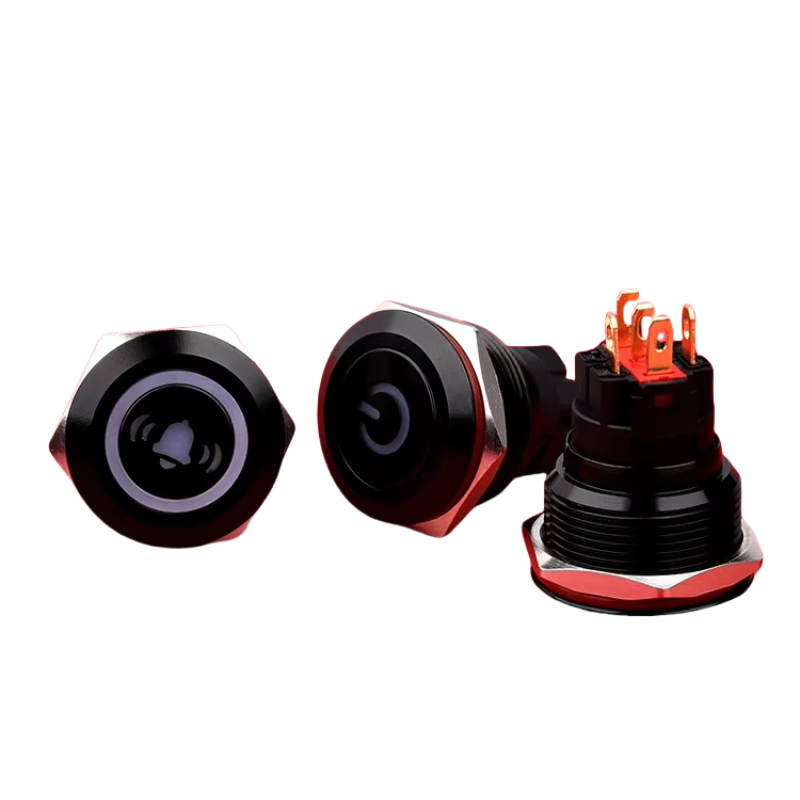

• 22mm standard mounting hole size
• Custom LED pattern & logo available
• Black aluminum oxide finish, stylish & durable
• IP67 waterproof & IK10 impact resistance
• Latching (self-locking) & momentary optional
• 1NO + 1NC contact configuration
• Silver contacts & silver-plated pins
• Quick connect & plug-in for easy wiring
• Wide temperature: -30°C ~ +85°C
• Ideal for doorbell, light, electronic equipment

Product Advantages

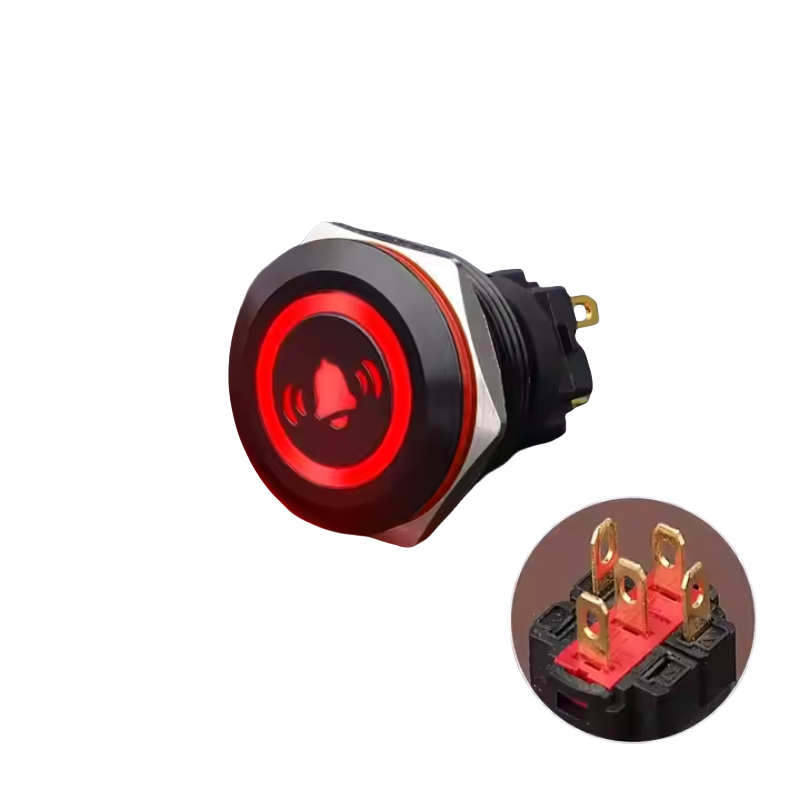

This 22mm custom pattern LED metal push button is designed for personalized control panels and equipment. Black aluminum oxide surface provides premium look and strong corrosion resistance. IP67 waterproof rating ensures stable performance in wet, outdoor and harsh environments. Custom LED pattern supports brand logo and function identification. It supports both latching and momentary modes to meet different control needs. High-quality silver contacts and long mechanical life ensure reliable use.

Applications

• Custom doorbell & access control systems
• Car & marine light control switches
• Custom electronic equipment & instrument panels
• Black style industrial & automation devices
• DIY modified lighting & control systems
• IP67 waterproof required equipment

FAQ

1. What is the mounting size?
Standard 22mm mounting hole size.

2. Can I customize the LED pattern?
Yes, custom pattern, logo and symbol are supported.

3. Is this switch IP67 waterproof?
Yes, it has IP67 waterproof and IK10 protection.

4. Does it support latching and momentary?
Yes, both latching and momentary are optional.

5. What is the surface material?
Black aluminum oxide for premium look and durability.

The post 22mm Custom Pattern LED Self-Locking Momentary Metal Push Button Switch Black Aluminium Oxide IP67 Doorbell Light Electronic appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

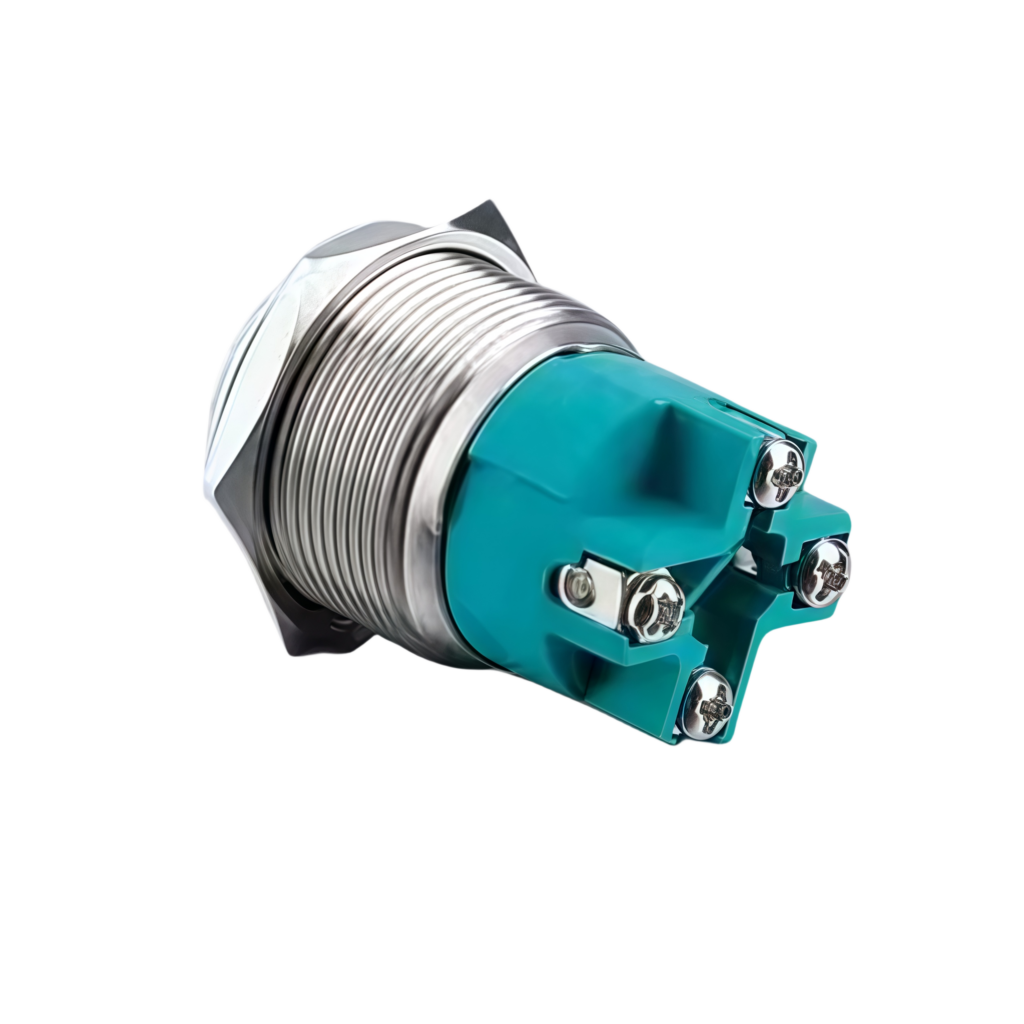

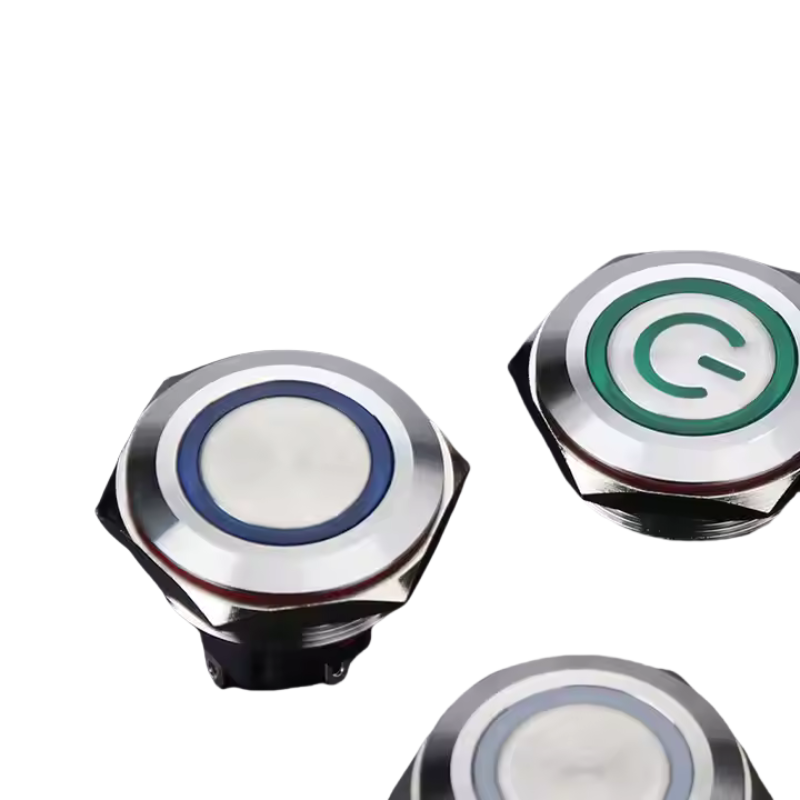

• 30mm large standard mounting size
• Bright ring LED for clear status indication
• IP67 waterproof & dustproof protection
• Latching (self-locking) & momentary optional
• 1NO + 1NC standard contact configuration
• Rated: 5A / 24V for safe control
• Stainless steel metal housing for durability
• Flat head for stable operation
• Silver-plated contacts & pins for reliability
• Plug-in connection for quick installation

Product Advantages

This 30mm large metal push button switch is designed for heavy-duty control panels and large equipment. The big size provides easier operation and better visibility. IP67 waterproof rating ensures stable performance in wet, outdoor and harsh environments. Ring LED offers clear working status indication. It supports both latching and momentary modes to meet different control needs. Stainless steel construction and silver-plated contacts ensure long service life and high reliability.

Applications

• Large industrial control panels & electrical cabinets
• Heavy machinery & equipment operation
• Waterproof & outdoor control systems
• Automation & large instrument devices
• 30mm mounting hole equipment & modification
• Marine, vehicle & engineering machinery

FAQ

1. What is the mounting size?
Large standard 30mm mounting hole size.

2. Is this switch IP67 waterproof?
Yes, it has IP67 waterproof and dustproof protection.

3. Does it support latching and momentary modes?
Yes, both latching and momentary are optional.

4. What contact type does it use?
Standard 1NO + 1NC contact configuration.

5. What is the LED type?
Bright ring LED for clear status indication.

The post 30mm 1NO1NC Electronic Metal Push Button Switch LED Self-Locking/Momentary Ring IP67 Level 5A Max Current 24V Max Voltage appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• Full customized metal push button solution
• Multiple head styles: Flat Head / Raised Head / Ball Head
• Multi mounting size: 8/10/12/16/19/22mm
• IP65 waterproof and dustproof grade
• Dual function: Momentary self-reset / Latching self-locking
• Rated up to 10A 250VAC heavy duty
• Body material: Brass nickel plated
• Multiple pin options: 2/3/4/6 pin terminals
• LED color and voltage customizable (12V blue optional)
• Contact configuration: 1NO1NC / 2NO2NC optional

Product Advantages

This customized metal push button switch supports full personalized customization in size, head shape, LED color, voltage and pin definition. Available in flat, raised and ball head designs to match different panel aesthetics and installation needs. Multiple mounting diameters from 8mm to 22mm cover most standard panel holes. IP65 waterproof structure adapts to indoor and light outdoor environments. Both momentary self-reset and latching locking functions are optional, suitable for industrial equipment, home appliances and custom electronic projects.

Applications

• Custom industrial control panels
• Mechanical equipment and automation devices
• Home appliance and electronic product modification
• DIY electronic projects and custom cabinets
• Instrument panel and smart device control
• IP65 indoor and light outdoor equipment

FAQ

1. What head types are available?
Flat head, raised head and ball head for selection.

2. What mounting sizes do you support?
8mm, 10mm, 12mm, 16mm, 19mm, 22mm full range.

3. Does it support momentary and latching?
Yes, self-reset momentary and self-locking latching optional.

4. Is this switch customizable?
Yes, size, head shape, LED, voltage and pins all customizable.

5. What is the protection level?
IP65 waterproof and dustproof for daily industrial use.

The post Customized Metal Push Button Switch Flat Head Raised Head Ball Head Self Reset Button Switches appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

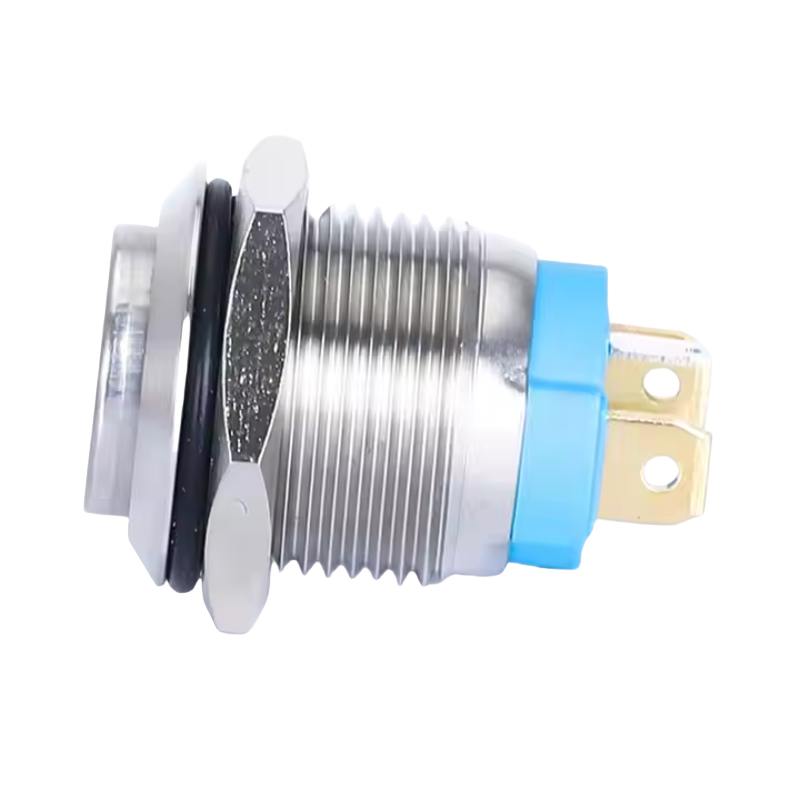

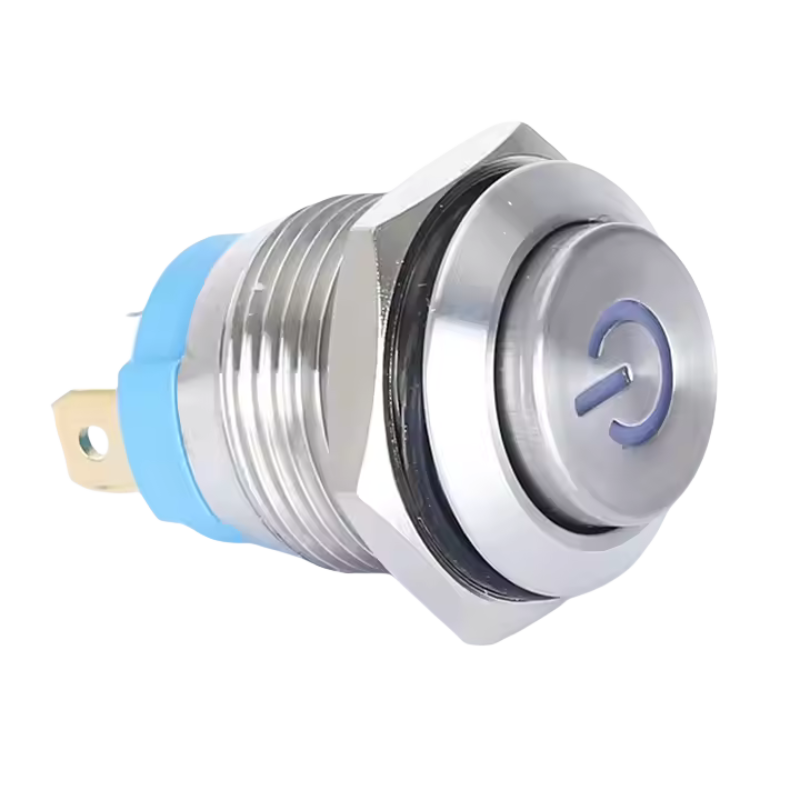

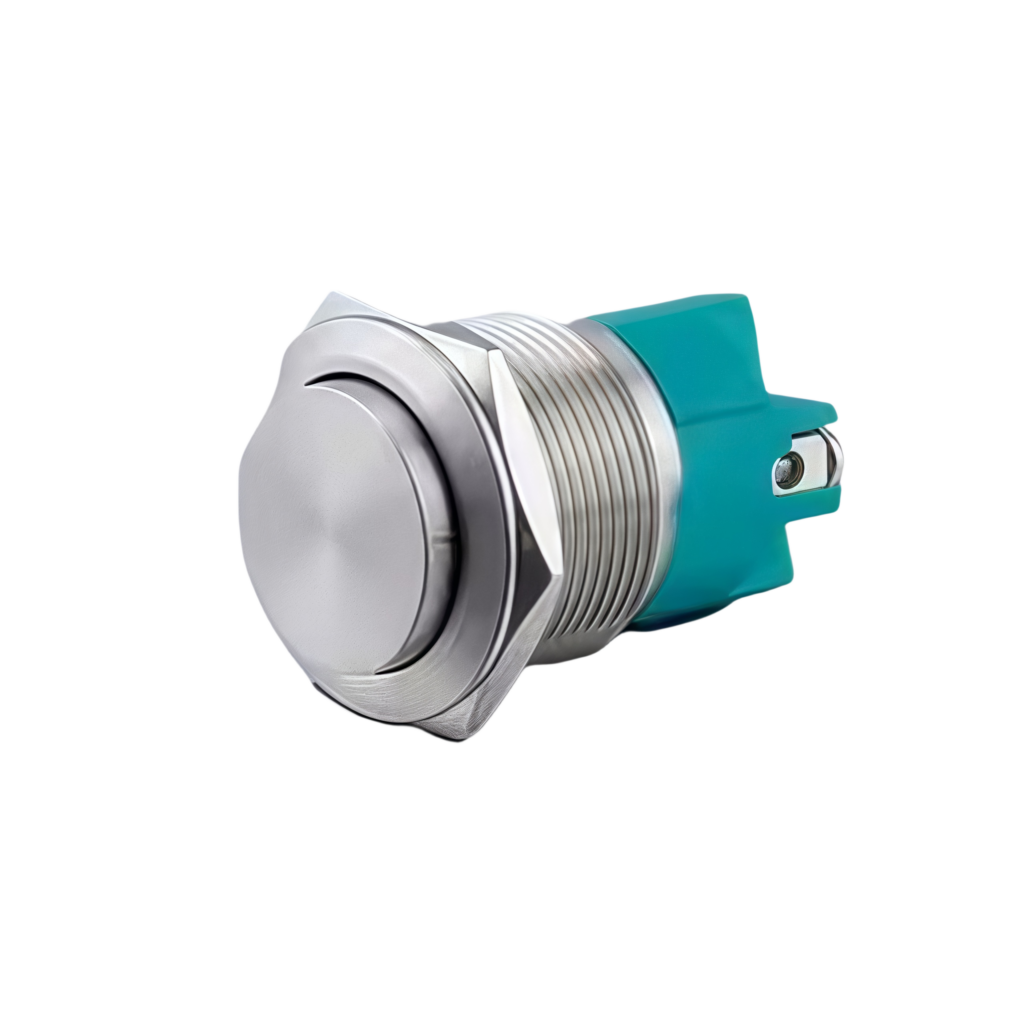

• 16mm standard mounting hole diameter
• 18A high current rating for heavy-duty power control
• Pure self-locking (latching) operation type
• Elegant high round head design
• Premium brass nickel plated shell housing
• 1NO normally open contact configuration
• Low contact resistance ≤50mΩ
• High dielectric strength up to 2000VAC
• Comes with nut and waterproof rubber O-ring
• Silver contact and pin for stable conductivity

Product Advantages

This 16mm 18A high current self-locking metal push button switch is specially designed for heavy-duty power equipment and industrial machinery. With 18A large current capacity, it can safely control high-power loads. Adopting high round head appearance and brass nickel-plated shell, it is wear-resistant, corrosion-resistant and elegant. Stable latching function keeps the circuit on/off steadily without continuous pressing. Ultra-low contact resistance and high withstand voltage ensure safe and long-term stable operation. Equipped with waterproof O-ring, it improves dustproof and moistureproof performance for indoor industrial scenarios.

Applications

• Industrial machinery high power start-stop control
• Automotive, engineering vehicle power switches
• Power distribution equipment and electrical cabinets
• High-current home appliances and mechanical equipment
• DIY high-power modification and control panels
• All scenarios requiring 18A large current latching switch

FAQ

1. What is the mounting size?
Standard 16mm mounting hole diameter.

2. What is the rated current?
Supports up to 18A high current for heavy duty use.

3. Is it self-locking type?
Yes, pure latching / self-lock operation design.

4. What material is the shell?
High-quality brass nickel plated material.

5. Does it come with installation accessories?
Yes, equipped with fixing nut and waterproof rubber O-ring.

The post 16mm High Current Self-lock Type Push Button 18A Power Control Switch Metal Push Button Switch appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• 19mm standard mounting hole, compatible with most industrial control panels and equipment housings for universal installation
• IP67 high waterproof & dustproof grade, fully adapts to wet, dusty and outdoor harsh working environments
• 3-position main design with momentary self-reset function, also supports 2-position maintained & momentary modes
• 6-pin terminal layout, equipped with 2NO2NC (2 Normally Open + 2 Normally Closed) contact structure for dual-circuit control
• Dual connection options: solder terminal and plug-in terminal, flexible for different wiring demands
• Stainless steel enclosure, anti-rust, anti-corrosion and high mechanical strength for long service life
• Silver contacts and silver pins, ultra-low contact resistance ≤50mΩ, stable current transmission
• Excellent electrical performance: min 1000MΩ insulation resistance, withstand 2000VAC dielectric strength
• Wide operating temperature: -20℃ ~ +55℃, works stably in cold and normal temperature environments
• Rotary head design with precise gear positioning, comfortable operation and clear switching feedback
• Pure mechanical structure without smart modules, low failure rate and easy daily maintenance
• Compact integrated structure, saves installation space for dense control cabinets and machinery
• Strict industrial standards, reliable quality for export to global industrial markets

Full Technical Specifications

Product Attributes

• Mounting Size: 19mm Standard Panel Hole
• IP Grade: IP67 Full Waterproof & Dustproof
• Core Mode: 3 Position Momentary (Self Reset)
• Optional Mode: 2 Position Maintained / Momentary
• Pins: 6 Pins
• Contact: 2NO2NC Dual Circuit Structure
• Terminal: Solder & Plug-in Dual Wiring
• Housing: Stainless Steel
• Contact & Pin: Silver Material
• Contact Resistance: ≤50 mΩ
• Insulation Resistance: ≥1000 MΩ
• Withstand Voltage: 2000 VAC
• Temp Range: -20℃ ~ +55℃
• Structure: Pure Mechanical (Non-smart)
• Core Strength: IP67 Protection, Dual Wiring, Multi-mode Selection

Product Advantages

This 19mm IP67 waterproof rotary switch is a high-performance industrial control component designed for harsh environments. With IP67 top-level waterproof and dustproof capability, it can work reliably in rainy, splash and heavy dust scenes. The main 3-position momentary self-reset function meets the demand for temporary signal triggering, and it also supports 2-position maintained and momentary modes for diversified circuit design. The 6-pin and 2NO2NC structure realizes synchronous control of two independent circuits, greatly improving equipment integration. It provides solder and plug-in dual wiring solutions, adapting to manual wiring and PCB assembly in different scenarios. Made of stainless steel shell and silver contacts/pins, the product features anti-corrosion, low resistance and stable conduction. Excellent electrical indicators and wide temperature adaptability ensure stable operation all year round. As a pure mechanical switch, it has simple structure and low failure rate. Fast delivery cycle also supports bulk procurement for industrial projects. It is a cost-effective choice for global industrial automation and mechanical equipment.

Application Scenarios

This IP67 self-reset rotary switch is widely exported to Europe, North America, Southeast Asia and other global regions, specially used for equipment in wet and dusty industrial environments.

• • Industrial automation production lines and temporary trigger control components
  • Outdoor engineering machinery and field operation equipment selector knobs
  • Wet workshop equipment, food machinery and washing industry control switches
  • Dust-prone workshop machinery and metallurgical equipment circuit controllers
  • Low-voltage dual-circuit control cabinets and power distribution auxiliary parts
  • Marine equipment and waterfront electromechanical device mode selectors

FAQ

1. What is the mounting size and IP protection level?
The standard mounting hole is 19mm, and the protection grade reaches IP67 with excellent waterproof and dustproof performance.

2. What are the main operation mode and position?
The main design is 3-position with momentary self-reset function; it also supports 2-position maintained and 2-position momentary modes.

3. How many pins and what contact configuration does it have?
It is equipped with 6 pins and adopts 2NO2NC (2 Normally Open + 2 Normally Closed) dual-circuit contact structure.

4. What wiring types are available?
It supports two connection ways: solder terminal and plug-in terminal for flexible use.

5. What are the materials of shell, contacts and pins?
The enclosure is stainless steel; both contacts and pins are made of silver for good conductivity.

6. What are the key electrical parameters?
Max contact resistance 50mΩ, min insulation resistance 1000MΩ, dielectric strength up to 2000VAC.

7. What is the working temperature range?
It can operate stably within -20℃ to +55℃.

8. Does this switch have smart functions?
No, it is a pure mechanical rotary switch without any smart modules.

9. What kind of equipment and environments is it suitable for?
It is widely used in industrial machinery, automation equipment and other devices working in wet, dusty harsh environments worldwide.

The post 19mm Momentary Waterproof 6 Pin Rotating Select Switch 2NO2NC 3 Position Self Reset Selector Switch Rotary Switches appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.
