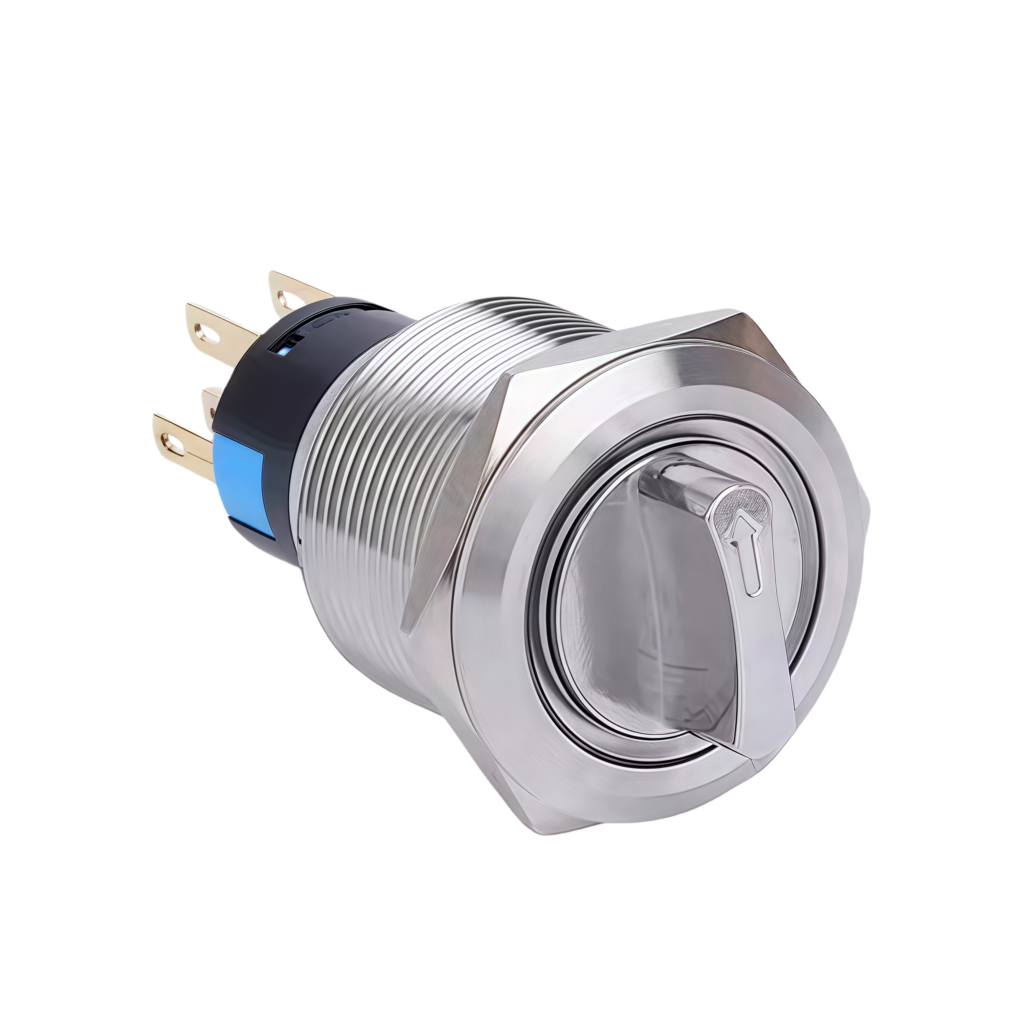

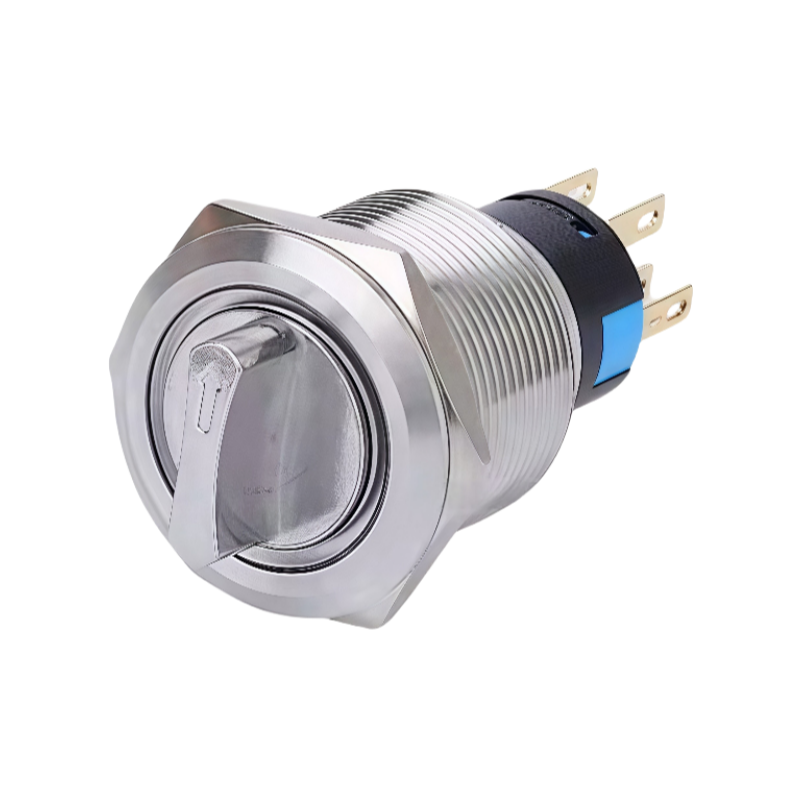

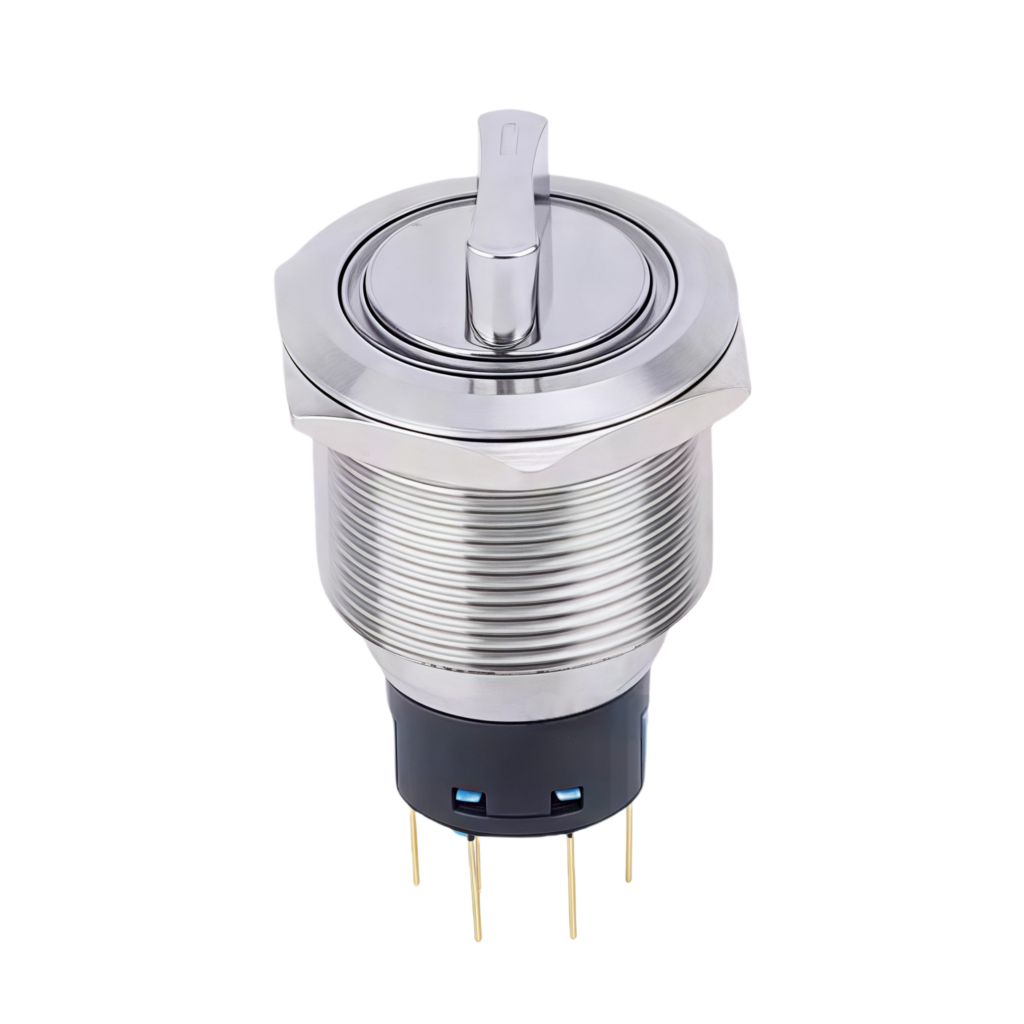

• Multiple position options: 2-position and 3-position for flexible multi-gear circuit selection and mode switching
• Dual operation modes: maintained (locking) and momentary, to meet diverse circuit control logic
• Built-in locking mechanism, effectively prevent accidental gear change, improve equipment operation safety
• Durable metal knob, comfortable operation and excellent mechanical durability for long-term use
• Top-grade protection: IK10 mechanical impact resistance (20J impact energy), withstand strong collision
• Dual waterproof grades optional: IP65 and IP66, adapt to wet, splash and outdoor environments
• Excellent electrical performance: contact resistance ≤50mΩ, insulation resistance ≥1000MΩ
• High dielectric strength, minimum 1000VAC withstand voltage, ensure circuit operation safety
• Wide operating temperature: -30℃ ~ +80℃, stable work in extreme cold and high temperature conditions
• Rich contact combinations: 1NO+1NC, 2NO+2NC, 3NO+3NC for single/multi-circuit control
• Silver contacts with optional silver-plated or gold-plated pins, superior conductivity and anti-oxidation
• Nickel brass nut for assembly, sturdy structure and good anti-rust performance
• Plug-in terminal design, fast wiring, convenient for on-site installation and equipment maintenance
• Pure mechanical structure without smart modules, low failure rate and long service life
• Professional design for industrial automation, power equipment and customized electronic devices

Full Technical Specifications

Product Attributes

• Gear Option: 2 Position / 3 Position
• Operation: Maintained + Momentary Dual Modes
• Core Feature: Locking Structure (Anti-accidental Shift)
• Knob: Metal Material
• Mechanical Protection: IK10 High Impact Resistance
• Waterproof: IP65 / IP66 Selectable
• Contact Resistance: ≤50mΩ
• Insulation Resistance: ≥1000MΩ
• Withstand Voltage: ≥1000VAC
• Temp Range: -30℃ ~ +80℃
• Contact Types: 1NO+1NC, 2NO+2NC, 3NO+3NC
• Contact: Silver; Pin: Silver/Gold Plated Optional
• Accessory: Nickel Brass Nut
• Wiring: Plug-in Terminal
• Structure: Pure Mechanical (Non-smart)

Product Advantages

This multi-functional locking rotary switch is specially developed for industrial automation and power equipment. It supports 2-position and 3-position gears, as well as maintained and momentary working modes, which can adapt to various complex circuit control requirements. The built-in locking structure can effectively avoid misoperation caused by collision or human error, greatly improving equipment safety. It reaches IK10 highest mechanical impact resistance standard, which can withstand 20J impact energy and adapt to industrial scenes with frequent collisions. Optional IP65 and IP66 waterproof grades make the switch work stably in humid and splash environments. Equipped with multiple contact combinations from single circuit to multi-circuit, it covers different equipment design demands. Silver contacts and gold/silver plated pins ensure long-term stable conduction and anti-oxidation. The nickel brass nut is sturdy and anti-rust, matching the metal knob perfectly. The plug-in terminal simplifies wiring work and reduces maintenance difficulty. With a wide temperature range from -30℃ to +80℃, it can operate normally in cold northern regions and high-temperature workshops. As a pure mechanical switch, it has a simple structure, reliable quality and long service life, which is a preferred component for global industrial projects.

Application Scenarios

This high-protection locking rotary switch is exported to Europe, North America, Southeast Asia and other global regions, focusing on industrial automation and power control fields.

• Industrial automation production lines and automated control system selector switches
• High-power electrical equipment and low-voltage power distribution cabinet control knobs
• Mechanical devices with collision risks and workshop general machinery components
• Outdoor electrical facilities and IP65/IP66 required waterproof control equipment
• Custom electronic devices and special industrial circuit switching modules
• Instrumentation and testing equipment with strict anti-misoperation requirements

FAQ

1. What gear positions and operation modes does this switch support?
It has 2-position and 3-position optional gears, and supports both maintained and momentary operation modes.

2. Does this switch have anti-misoperation function?
Yes, it is a locking type rotary switch with built-in locking mechanism to prevent accidental gear changes.

3. What are the protection levels?
It meets IK10 mechanical impact resistance standard; waterproof grade is optional IP65 or IP66.

4. What are the core electrical parameters?
Contact resistance ≤50mΩ, insulation resistance ≥1000MΩ, minimum withstand voltage 1000VAC.

5. What is the working temperature range?
It can work stably in the environment of -30℃ to +80℃.

6. What contact combinations are available?
Three options: 1NO+1NC, 2NO+2NC and 3NO+3NC for different circuit designs.

7. What are the materials of contacts, pins and nut?
Contact: silver; pin: silver/gold plated optional; assembly nut: nickel brass.

8. What kind of terminal does it use for wiring?
It adopts plug-in terminal for fast and convenient wiring and maintenance.

9. What main equipment and environments is it suitable for?
Widely used in industrial automation equipment, power devices and custom electronics, suitable for collision-prone and humid industrial environments worldwide.

The post Rotary Switches 2 or 3 Position Maintained Type Lock Automation Equipment Metal Knob Switch appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

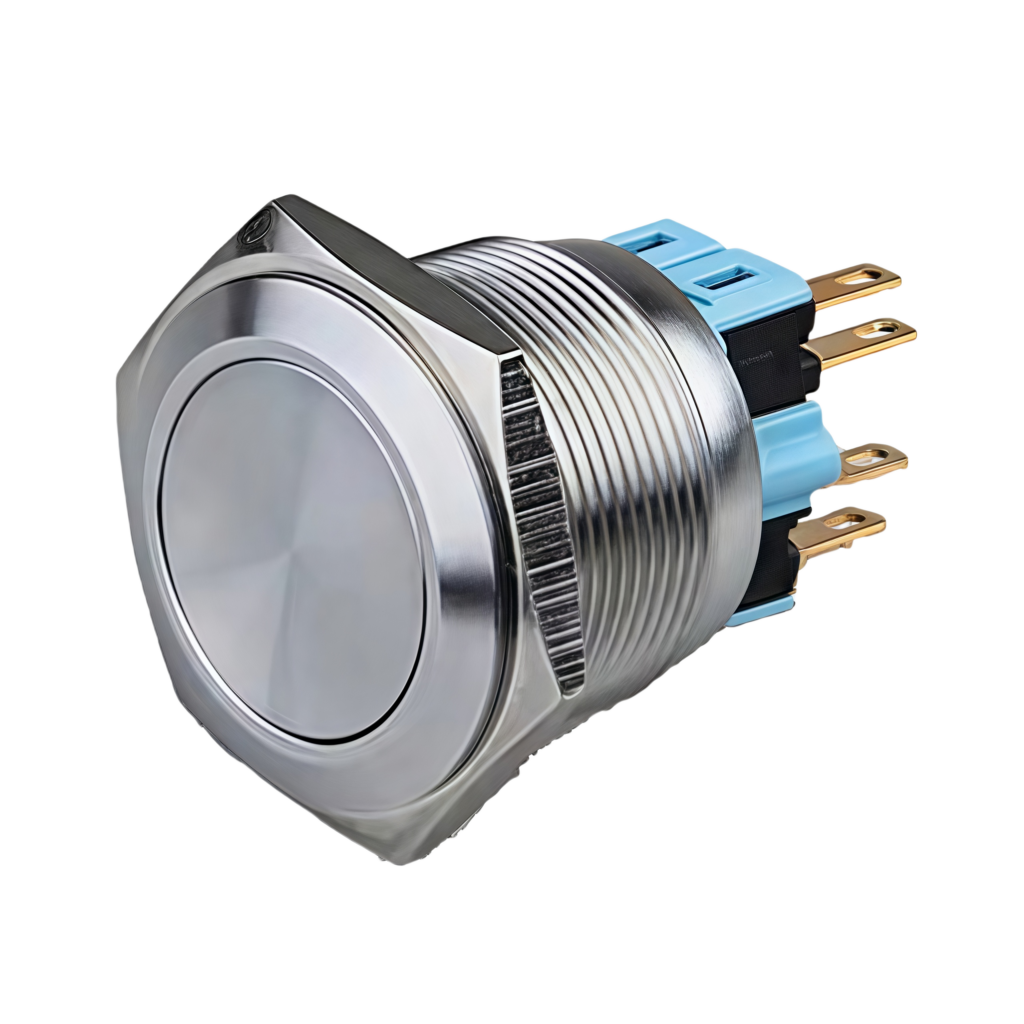

• Multiple mounting diameter: 12mm/16mm/19mm/22mm/25mm/30mm
• Standard 25mm fixed mounting hole for panel installation
• Flat head minimalist industrial design
• Dual operation mode: Momentary / Latching optional
• Switch combination: 1NO1NC / 2NO2NC available
• Rated 2A / 5A 250VAC stable load capacity
• Non-illuminated and Ring LED two illuminating types
• High protection grade: IP67 waterproof + IK08 impact resistance
• Pin terminal welding design, plug-in connection easy installation
• Shell material optional: Nickel Plated Brass / Stainless Steel / Aluminum Alloy
• Silver alloy contact, silver PIN material anti-oxidation
• Max contact resistance 50mΩ, stable electric conduction
• Insulation & Dielectric Intensity up to 2000VAC
• Ambient temperature range: -20°C ~ +55°C
• Mechanical life over 500,000 cycles
• Electrical life over 50,000 cycles
• Panel thickness adaptable: 1~10mm
• Operation pressure: 3~5N, Operation stroke: about 2.5mm
• PA66 base material, anti-aging durable structure
• CE certified for industrial safety standard
• Three Position Maintained / Momentary optional

Technical Specifications

Product Attributes

• Connection: Plug in
• Contact Material: Silver Alloy
• PIN Material: Silver
• Contact Operation: 1NO+1NC / 2NO+2NC Optional
• Position Mode: Three Position Maintained , Three Position Momentary
• Shell Material: Alu Alloy, Brass, Nickel Plated Brass

Product Advantages

This 25mm IP67 IK08 metal push button adopts flat head design with multiple installation apertures optional. It supports momentary and latching dual working modes, matched with 1NO1NC / 2NO2NC contact combination. Made of nickel plated brass, stainless steel and aluminum alloy, it balances conductivity, corrosion resistance and lightweight performance. IP67 waterproof together with IK08 impact resistance adapts to harsh industrial and outdoor environments. 5A 250VAC rated load, long mechanical and electrical lifespan, PA66 base with stable structure, CE certified, easy to install for machinery, automation production lines and power systems.

Applications

• 25mm IP67 IK08 industrial control panel push button
• Automation production line momentary latching metal switch
• Outdoor instrument waterproof impact resistant control button
• Power system 5A high load pin terminal push button
• B2B industrial machinery and equipment replacement switch

FAQ

1. Mounting size?
Multiple sizes optional, standard 25mm mounting hole.

2. Operation mode?
Momentary and Latching two types optional.

3. Protection grade?
IP67 waterproof + IK08 impact resistance.

4. Material option?
Nickel plated brass, stainless steel, aluminum alloy optional.

5. Lifespan & certification?
500k+ mechanical cycles, 50k+ electrical cycles, CE certified.

The post Metal Push Button Switch IP67 IK08 5A Nickel Plated Brass/Stainless Steel/Aluminum 25mm Momentary/Latching Pin Terminal appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

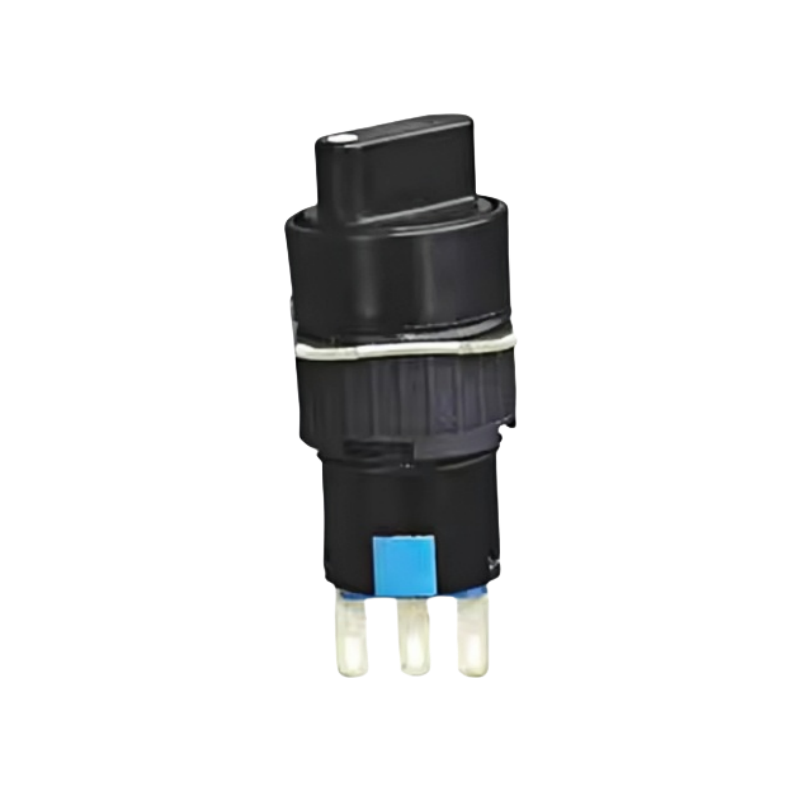

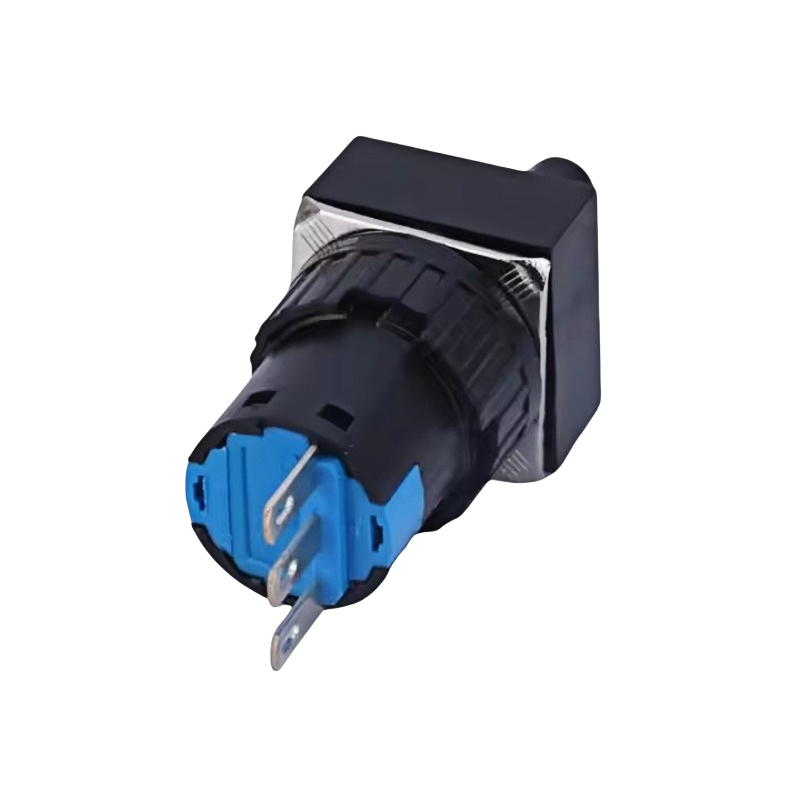

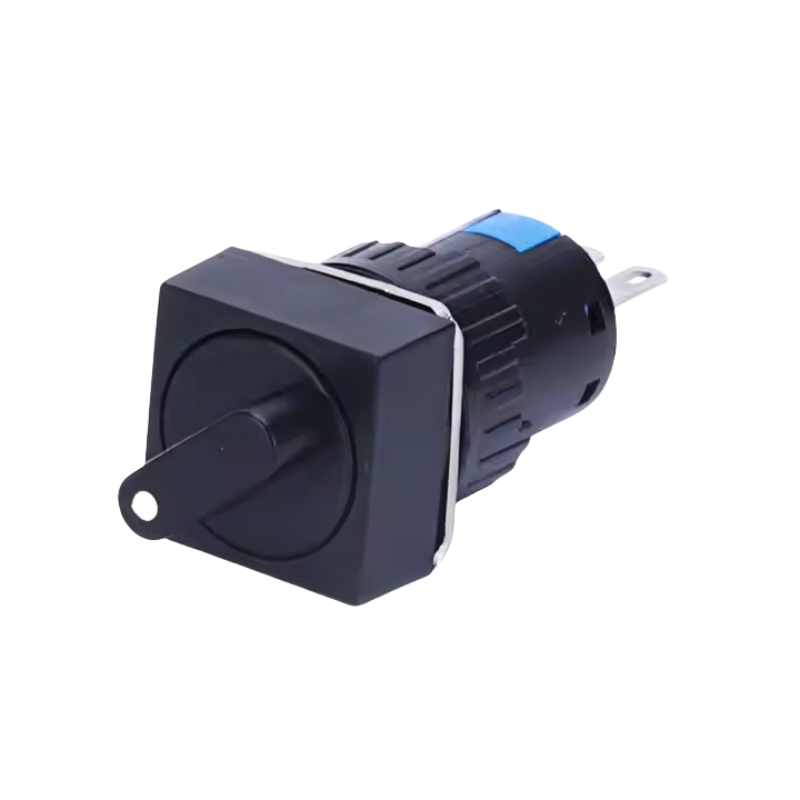

• 16mm standard mounting hole, mini compact size, perfect for equipment with limited installation space
• Dual position options: 2-position and 3-position to meet multi-gear control requirements
• Dual operation modes: latching (self-lock) and momentary (self-reset) for flexible circuit logic
• ON-(ON) switch function, ideal for temporary signal switching and mode selection
• 3-pin plug-in terminal design, fast wiring, easy assembly and later maintenance
• Multiple contact combinations: 1NO1NC and 2NO2NC, compatible with single and dual circuits
• Silver pins, excellent electrical conductivity and long anti-oxidation performance
• Rated 3A 250VAC, stable performance for low-power AC control circuits
• High-insulation engineering plastic body, lightweight, impact-resistant and corrosion-proof
• Dual protection grades: IP40 for dustproof, IP65 for waterproof & splash-proof, multi-scene adaptation
• Rotary knob with optional red, green and black colors for equipment matching
• No LED light and no smart modules, pure mechanical structure, low failure rate
• Wide operating temperature: -20℃ ~ +55℃, works stably in conventional environments
• Precision electronic structure, durable for long-term frequent operation
• Universal design, compliant with global standards for export sales

Full Technical Specifications

Product Attributes

• Installation Size: 16mm Standard Mini Panel Hole
• Gear: 2 Position / 3 Position Optional
• Operation: Latching + Momentary Dual Modes
• Switch Logic: ON-(ON)
• Pins: 3 Pin, Plug-in Connection
• Contact: 1NO1NC / 2NO2NC Dual Options
• Pin Material: Silver
• Electrical Rating: 3A 250VAC
• Body Material: High-insulation Engineering Plastic
• Knob: Rotary, Multi-color Optional
• Protection: IP40 (Dustproof) / IP65 (Waterproof)
• Indicator Light: None
• Structure: Pure Mechanical (Non-smart)
• Temp Range: -20℃ ~ +55℃
• Core Strength: Mini Size, Dual Protection, Multi-mode

Product Advantages

This 16mm miniature rotary switch is specially designed for compact electronic and electrical equipment. The ultra-small 16mm mounting size perfectly adapts to narrow installation spaces that regular switches cannot fit. It supports 2-position and 3-position gears, together with latching and momentary dual working modes, which can satisfy various temporary triggering and fixed control needs. The 3-pin plug-in terminal greatly improves assembly efficiency and facilitates later maintenance. Equipped with two mainstream contact combinations, it can be applied to single and dual circuit designs. Silver pins ensure stable current transmission and resist oxidation during long-term use. Adopting high-insulation engineering plastic, the whole body features light weight, impact resistance and corrosion resistance. This product provides two protection grades: IP40 for ordinary dust-proof workshops and IP65 for humid & splash-prone environments, with strong scene adaptability. Without LED and smart components, the internal structure is simpler and the failure rate is lower. Multiple knob colors support personalized equipment matching. With a wide temperature range, it can operate reliably in most conventional working environments. It is a cost-effective miniature control component widely recognized in global small equipment and electronic fields.

Application Scenarios

This mini waterproof rotary switch is sold to Europe, North America, Southeast Asia and other global regions, mainly used for compact low-voltage equipment.

• Mini industrial control panels and embedded circuit control components
• Automotive interior mini circuits and vehicle auxiliary function switches
• Smart electronic devices and portable handheld equipment knobs
• Humid small workshop machinery and dust-proof mini equipment
• Electronic DIY projects and customized compact circuit modules
• Household small electrical appliances and low-power control switches

FAQ

1. What is the mounting size and available gear positions?
The standard mounting hole is 16mm; it has 2-position and 3-position two gear options.

2. What operation modes and switch function does it have?
It supports latching (self-lock) and momentary (self-reset) modes, and the switch function is ON-(ON).

3. How many pins and what wiring type is adopted?
It is a 3-pin switch with plug-in connection for quick wiring.

4. What contact combinations can I choose?
Two options: 1NO1NC and 2NO2NC for different circuit designs.

5. What are the electrical specifications and pin material?
Rated 3A 250VAC; pins are made of silver for good conductivity.

6. What material is the switch body and knob?
The main body is made of high-insulation engineering plastic; rotary knob has red, green, black colors optional.

7. What protection levels does this switch support?
It has IP40 dustproof grade and IP65 waterproof grade for different working environments.

8. Does it have LED light or smart functions?
No, it has no LED indicator and no smart modules, it is a pure mechanical switch.

9. What is the working temperature and main applications?
Operating temperature: -20℃ ~ +55℃. Widely used for compact panels, automotive, smart devices and DIY electronics worldwide.

The post 16mm 3-Pin Waterproof Small Rotary Switch 2/3 Position Reset Self Lock Knob 1NO1NC Electronic Structure 3A 250V Button appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• 22mm standard mounting hole, universally compatible with mainstream industrial control panels and equipment housings
• DPDT (Double Pole Double Throw) circuit, 3-position ON-OFF-ON latching function for stable multi-mode switching
• Dual contact combinations: 2NO2NC and 3NO3NC to meet diverse multi-circuit control demands
• Dual terminal options: screw terminal and crimping terminal, flexible for different wiring operations
• IP67 high waterproof & dustproof grade, resists moisture, dust and vibration for harsh industrial environments
• Full plastic housing with solid structure, impact-resistant and long-term stable performance
• Compliant with EN 60947-5-1 standard and CE certification, compliant with European industrial regulations
• Supports AC-15, DC-13 and AC-18 load categories for AC/DC electromagnetic loads
• Rated thermal current 10A, dielectric strength up to 2.5kV, excellent electrical safety
• Silver contacts and silver pins, low contact resistance and outstanding anti-oxidation ability
• Flat rotary head, optional red, green and black colors for equipment matching
• Smooth 360° rotation operation, clear gear positioning and comfortable hand feel
• Pure mechanical latching structure, no smart modules, low failure rate and easy maintenance
• Factory direct supply, reliable quality and competitive price for bulk industrial procurement
• Professional industrial design, widely applicable to machinery and automation systems worldwide

Full Technical Specifications

Product Attributes

• Installation Size: 22mm Standard Panel Mount
• Circuit: DPDT Double Pole Double Throw
• Operation: 3 Position ON-OFF-ON Latching
• Contact: 2NO2NC / 3NO3NC Optional, Silver Material
• Pin: Silver Material
• Terminal: Screw / Crimping Dual Options
• Protection: IP67 Waterproof & Dustproof
• Body & Head: Plastic, Flat Rotary Head
• Color: Red / Green / Black Selectable
• Standard: EN 60947-5-1
• Cert: CE
• Load Type: AC-15, DC-13, AC-18
• Rated Current: 10A Thermal Current
• Withstand Voltage: 2.5kV
• Structure: Pure Mechanical Latching (Non-smart)
• Core Strength: IP67 Protection, Multi-terminal, Standard Compliant

Product Advantages

This factory-direct 22mm DPDT rotary switch is a high-performance industrial control component. The classic ON-OFF-ON 3-position latching design provides stable gear retention, which is ideal for long-term mode locking. DPDT dual-circuit structure plus two contact combinations can meet complex multi-channel circuit control requirements. Equipped with screw and crimping dual terminals, it adapts to different wiring habits and production processes. With IP67 top-level protection, it can resist water, dust and vibration, performing well in harsh industrial workshops. The all-plastic body is lightweight, insulated and durable. Manufactured in accordance with EN 60947-5-1 and CE certified, it fully meets European market access standards. It supports AC-15 AC electromagnetic load, DC-13 DC electromagnetic load and AC-18 load, covering most industrial control circuits. Silver contacts and pins ensure low resistance and stable conduction. The flat rotary head with multiple color options is easy to match various devices. Smooth 360° rotation brings comfortable operation. As a pure mechanical switch, it has a simple structure and low failure rate. Factory direct sales guarantee cost advantage, which is the preferred bulk purchase choice for industrial projects.

Application Scenarios

This IP67 DPDT rotary switch is widely exported to Europe, North America, Southeast Asia and other global regions, mainly used in heavy-duty industrial fields.

• Industrial automation production lines and equipment multi-mode selector switches
• Machine tools and mechanical equipment ON-OFF-ON circuit control components
• Indoor & outdoor industrial control panels and low-voltage distribution modules
• Electromagnetic valve and relay control systems for AC-15 & DC-13 loads
• Shockproof and dustproof workshop special electrical control knobs
• Complete industrial equipment and customized electromechanical control devices

FAQ

1. What circuit type and gear function does this switch have?
It is DPDT double pole double throw type, 3-position ON-OFF-ON latching structure.

2. What contact combinations and terminal types are available?
Contacts: 2NO2NC and 3NO3NC optional; Terminals: screw terminal and crimping terminal dual choices.

3. What is the IP protection level and main material?
IP67 waterproof and dustproof grade; the whole switch is made of plastic with flat rotary head.

4. Which standards and certifications does it comply with?
Complies with EN 60947-5-1 standard and has CE certification.

5. What load categories can it support?
It is applicable to AC-15, DC-13 and AC-18 load types for electromagnetic circuits.

6. What are the current and withstand voltage parameters?
Rated thermal current is 10A, dielectric strength reaches 2.5kV.

7. What are the materials of contacts and pins?
Both contacts and pins are made of silver for excellent conductivity.

8. Are there optional colors for the rotary head?
Yes, available in red, green and black colors.

9. What are the main application fields?
Mainly used for industrial machinery, automation equipment and various industrial control panels worldwide.

The post Factory Direct 22mm Waterproof Plastic 2NO2NC ON-OFF-ON DPDT Latching Type Rotory Select Switch for Industry appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• 22mm standard mounting hole, universally compatible with mainstream industrial control panels and equipment cabinets
• 3-position ON-OFF-ON latching design with key lock function, prevent unauthorized operation and misoperation
• Multiple head options: flat head, high head and domed head to meet different installation demands
• Dual current ratings: 5A and 3A at 250VAC, adaptable to different low-power AC circuits
• 2NO+2NC contact configuration, stable dual-circuit switching for complex control systems
• Nickel-plated brass enclosure, high hardness, anti-rust, anti-corrosion and long service life
• IP67 top-level waterproof & dustproof grade, works reliably in humid, dusty harsh environments
• Built-in 12V blue LED indicator, clear status display for easy operation observation
• Plug-in terminal design, fast wiring, convenient for mass assembly and on-site maintenance
• Integrated key lock mechanism, professional safety protection for high-security equipment
• Pure mechanical structure, stable rotation, clear gear positioning and comfortable hand feel
• Durable metal construction, anti-collision and wear resistance for long-term frequent use
• Compact layout, save installation space for dense control panels and embedded devices
• Complete specifications, strong compatibility for global industrial safety control projects

Full Technical Specifications

Product Attributes

• Installation Size: 22mm Standard Panel Mount
• Gear & Logic: 3 Position, ON-OFF-ON Latching
• Core Function: Key Lock for Anti-misoperation & Anti-unauthorized Use
• Head Style: Flat / High / Domed Multiple Options
• Rated Spec: 250VAC, 3A / 5A Optional
• Contact: 2NO + 2NC Dual Circuit Structure
• Housing: Nickel Plated Brass, Anti-corrosion
• Protection: IP67 Full Waterproof & Dustproof
• Indicator: 12V Blue LED Light
• Wiring: Plug-in Terminal, Easy Assembly
• Structure: Pure Mechanical Key Lock Switch
• Core Strength: Safety Lock, Multi-head, High Protection, Illuminated

Product Advantages

This 22mm key lock rotary switch is a professional safety control component for industrial fields. The classic 3-position ON-OFF-ON latching mode meets multi-gear switching demands, and the built-in key lock effectively avoids misoperation and illegal operation, greatly improving equipment safety. Various head styles can match different panel designs. With two current options of 3A and 5A under 250VAC, it adapts to multiple low-power AC control circuits. The 2NO+2NC contact structure realizes stable dual-circuit control. Adopting nickel-plated brass shell, the switch has excellent hardness, rust and corrosion resistance. IP67 high protection level enables it to work normally in humid and dusty workshops and outdoor environments. The 12V blue LED clearly displays the working status for intuitive operation. Plug-in terminals simplify wiring work and reduce maintenance costs. The overall mechanical structure is precise, with smooth rotation and long service life. It is an ideal choice for equipment that requires operation authority management, and is widely recognized in global industrial safety control markets.

Application Scenarios

This IP67 key lock rotary switch is exported to Europe, North America, Southeast Asia and other regions, mainly used for equipment requiring safety access control.

• Industrial control cabinets and power distribution equipment with permission management requirements
• Factory machinery and production line safety lock control switches
• Outdoor electromechanical devices and wet environment lockable control knobs
• Security equipment and access control system auxiliary circuit switches
• Commercial electrical appliances and public equipment anti-misoperation buttons
• Special industrial devices and automated system safety selector components

FAQ

1. What is the mounting size and gear function?
The standard mounting hole is 22mm, it is a 3-position switch with ON-OFF-ON latching function.

2. Does this switch have a key lock function?
Yes, it is equipped with an electric key lock to prevent unauthorized operation and accidental trigger.

3. What head types are available to choose?
Three optional styles: flat head, high head and domed head.

4. What are the voltage and current specifications?
Rated voltage 250VAC, two current options: 3A and 5A.

5. What contact combination does it adopt?
It uses 2NO + 2NC dual-circuit contact configuration.

6. What is the shell material and IP protection level?
The shell is made of nickel-plated brass; protection grade reaches IP67 for waterproof and dustproof.

7. Does it have an indicator light? What are the LED parameters?
Yes, built-in 12V blue LED indicator for working status display.

8. What wiring method is used?
It adopts plug-in terminal for fast wiring and assembly.

9. What main equipment is this switch suitable for?
Widely used in industrial machinery, control cabinets and various safety-related electrical equipment worldwide.

The post 22MM Flat Head ON-OFF-ON Self-Latching Type Metal Knob Rotary Switches 3-Position Electric Key Lock Switch 5A250VAC appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• Standard 22mm mounting size for industrial panel universal installation
• STOP symbol red mushroom head, clear emergency visual warning
• Metal and plastic two bezel materials optional for different needs
• Fast acting flat jump contact structure, short stroke and quick response
• Multiple position modes: maintained & momentary optional
• Protection grade: standard IP40, optional IP65 waterproof version
• Compliant with IEC60947-5-1 and GB/T 14048.5 industrial safety standards
• High rated insulation voltage up to 690V for safe circuit isolation
• 10A conventional freeair thermal current, boxed type 6A
• Complete AC-15 / DC-13 load specifications for multiple voltage systems
• Premium brass / gold / silver optional contact material
• Ultra-long mechanical life up to 1 million times for mushroom head type
• Spiral embedded terminal, support multi-spec wire wiring
• Compact structure, suitable for high-frequency working scenarios
• Non-illuminated design, stable mechanical performance

Product Attributes

• Bezel: Metal , Plastic
• Head Type: Mushroom
• Lamp: Non Illuminated
• Contact Material: Brass , Gold , Silver
• Position Mode: Two / Three Position Maintained & Momentary Optional

Product Advantages

This 22mm STOP symbol mushroom maintained emergency switch adopts fast flat jump contact structure with short action stroke and fast response speed. It supports metal and plastic bezel optional, standard IP40 protection and optional IP65 waterproof version. Comply with IEC60947-5-1 and GB/T 14048.5 safety standards, 690V high insulation voltage and complete AC/DC load parameters. Mushroom head model reaches 1 million times mechanical life, durable for high frequency use. Spiral embedded terminal supports multi-spec wire wiring, easy installation and stable connection, ideal for industrial high-frequency equipment and safety control systems.

Applications

• 22mm STOP symbol mushroom head maintained emergency stop for industrial panel
• High-frequency working machinery and production line safety protection switch
• Automation equipment CNC machine tool emergency cutoff button
• Indoor workshop IP40 conventional environment control panel switch
• IP65 waterproof version for humid workshop and light industrial site

FAQ

1. What is the mounting size?
Standard 22mm mounting hole, suitable for conventional industrial panel installation.

2. What protection levels are available?
Standard IP40, IP65 waterproof version is optional for wet environments.

3. What is the mechanical life?
Mushroom head type up to 1 million times, suitable for high frequency operation.

4. What material options are there?
Bezel available in metal and plastic; contact optional brass, gold, silver.

5. What standards does it comply with?
Meets IEC60947-5-1 and GB/T 14048.5 industrial safety standards.

6. What wiring wire size is supported?
Adaptable 0.5mm² to 2.5mm² wire with spiral embedded terminal.

7. What working scenarios is it for?
Perfect for high-frequency industrial machinery, automation lines, machine tools and indoor workshop safety control.

The post Stop Symbol 22mm Metal Bezel Mushroom Maintained Emergency Push Botton Switch appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• Standard 22mm mounting hole for universal industrial panel installation
• Classic stop symbol red mushroom head for obvious emergency identification
• Metal and plastic dual bezel material optional to match different needs
• Fast acting flat jump contact structure, short stroke and quick response
• Suitable for high-frequency working scenarios with stable performance
• Multiple position modes: 2-position / 3-position maintained & momentary optional
• Standard IP40 protection grade, IP65 waterproof version optional
• High rated insulation voltage up to 690V for electrical safety isolation
• Conventional thermal current 10A, boxed type rated 6A
• Complete AC-15 and DC-13 voltage and current load specifications
• Contact material optional: Brass, Gold, Silver
• Mushroom head mechanical life up to 1 million times
• Long electrical life: AC 500,000 times, DC 200,000 times
• Spiral embedded terminal supports multiple wire gauge wiring
• Working temperature range: -5℃ ~ 40℃
• Complies with IEC60947-5-1 and GB/T 14048.5 industrial safety standards
• Non-illuminated design, simple and compact structure

Product Attributes

• Bezel: Metal , Plastic
• Head Type: Mushroom
• Lamp: Non Illuminated
• Contact Material: Brass , Gold , Silver
• Position Mode: Two / Three Position Maintained & Momentary Optional

Product Advantages

This 22mm stop symbol mushroom maintained emergency switch is designed with fast flat jump contact structure, featuring short action stroke and fast response speed, perfectly suitable for high-frequency industrial use. It provides metal and plastic bezel options, standard IP40 protection and optional IP65 waterproof version for humid environments. With 690V high insulation voltage and complete AC/DC load parameters, it meets various power system requirements. Mushroom head achieves 1 million mechanical service life, durable for long-term frequent operation. Spiral embedded terminal supports multi-spec wiring, complies with international safety standards, compact and reliable for industrial safety control.

Applications

• 22mm stop symbol mushroom head maintained emergency stop for industrial control panel
• High-frequency production line and automation equipment safety emergency switch
• CNC machine tools and mechanical equipment instant power cutoff button
• Indoor workshop IP40 conventional environment safety protection button
• IP65 waterproof version for humid factory and light industrial sites

FAQ

1. What is the mounting size?
Standard 22mm mounting aperture, fits most industrial control panels.

2. What protection levels are available?
Default IP40, IP65 waterproof version is optional for damp and dusty environments.

3. What operation positions does it support?
Supports two-position and three-position, maintained and momentary multiple modes.

4. What is the service life?
Mushroom head mechanical life up to 1 million times, electrical life AC 500,000 / DC 200,000 times.

5. What contact materials can I choose?
Optional brass, gold and silver contact materials for different conductivity needs.

6. What wire size is supported?
Spiral terminal fits wire gauge from 0.5mm² to 2.5mm².

7. What scenarios is it suitable for?
Ideal for high-frequency production lines, machine tools, automation equipment, indoor workshops and optional waterproof industrial occasions.

The post 22mm Stop Symbol Mushroom Maintained Emergency Push Botton Switches appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• Standard 22mm mounting hole for industrial control panel universal installation
• Oversized big mushroom head design, obvious emergency recognition and easy operation
• Metal and plastic two bezel materials optional for different installation environments
• Fast acting flat jump contact group, short stroke and ultra-fast response
• Suitable for high-frequency working cycle with stable mechanical performance
• Multiple position modes: 2-position / 3-position maintained & momentary optional
• Protection grade default IP40, support customized IP65 waterproof version
• Rated insulation voltage up to 690V for high voltage safety isolation
• Conventional freeair thermal current 10A, boxed type 6A
• Complete AC-15 & DC-13 voltage and current load specifications
• Contact optional: Brass, Gold, Silver for different conductivity demands
• Mushroom head mechanical life up to 1 million times
• Electrical life: AC 500,000 times; DC 200,000 times
• Spiral embedded terminal fits 0.5mm² ~ 2.5mm² wire range
• Working temperature: -5℃ ~ 40℃ for indoor industrial environment
• Complies with IEC60947-5-1 and GB/T 14048.5 industrial safety standards
• Non-illuminated compact structure, durable for long-term use

Product Attributes

• Bezel: Metal , Plastic
• Head Type: Mushroom Big Head
• Lamp: Non Illuminated
• Contact Material: Brass , Gold , Silver
• Position Mode: Two / Three Position Maintained & Momentary Optional

Product Advantages

This 22mm big head mushroom maintained emergency button adopts oversized mushroom head design for clearer emergency identification. Built with fast flat jump contact structure, short action stroke and fast response speed, perfectly matching high-frequency working scenarios. Metal and plastic bezel optional, default IP40 protection and optional IP65 waterproof version. 690V high insulation voltage and complete AC/DC load parameters adapt to various industrial power systems. Mushroom head reaches 1 million mechanical life, with long electrical service life. Spiral embedded terminal supports multi-spec wiring, complies with international safety standards, compact and durable for industrial long-term operation.

Applications

• 22mm big head mushroom maintained emergency stop for industrial control panel
• High-frequency production line automation equipment safety cutoff switch
• CNC machine tool and mechanical engineering equipment emergency button
• Indoor workshop IP40 conventional environment safety protection switch
• IP65 waterproof version for humid factory workshop and industrial site

FAQ

1. What is the mounting size?
Standard 22mm mounting aperture, suitable for most industrial panel installation.

2. Does it have waterproof option?
Standard IP40, customized IP65 waterproof version is available for damp environments.

3. What operation modes are available?
Supports two-position and three-position, maintained and momentary multiple options.

4. What is the service life?
Mushroom head mechanical life up to 1 million times, AC 500,000 / DC 200,000 electrical life.

5. What contact materials can be chosen?
Optional brass, gold, silver contact to meet different conduction requirements.

6. What wire size does it support?
Spiral terminal supports 0.5mm² to 2.5mm² wire connection.

7. Where is it mainly used?
Suitable for high-frequency production lines, machine tools, automation equipment, indoor workshops and optional waterproof industrial occasions.

The post 22mm Big Head Mushroom Maintained Emergency Push Botton Switch appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• Standard 22mm mounting hole for industrial panel universal installation
• Metal mushroom head design with obvious STOP identification for emergency operation
• Metal and plastic dual bezel optional for different installation environments
• Fast acting flat jump contact structure, compact body with short action stroke
• Quick response performance, specially designed for high-frequency working scenarios
• Multiple position modes: 2-position / 3-position maintained & momentary optional
• Default IP40 protection grade, IP65 waterproof version can be customized
• High 690V rated insulation voltage for reliable electrical isolation
• Conventional thermal current 10A, boxed type rated 6A
• Complete AC-15 & DC-13 load specifications adapt to multiple voltage systems
• Contact material optional: Brass, Gold, Silver
• Mushroom head mechanical life up to 1 million times
• Electrical life: AC 500,000 times / DC 200,000 times
• Spiral embedded terminal, wiring range 0.5mm² ~ 2.5mm²
• Working temperature range: -5℃ ~ 40℃
• Complies with IEC60947-5-1 and GB/T 14048.5 industrial safety standards
• Non-illuminated type, stable and durable for long-term industrial use

Product Attributes

• Bezel: Metal , Plastic
• Head Type: Mushroom
• Lamp: Non Illuminated
• Contact Material: Brass , Gold , Silver
• Position Mode: Two / Three Position Maintained & Momentary Optional

Product Advantages

This 22mm metal mushroom maintained emergency stop switch adopts fast flat jump contact design, compact structure with short stroke and fast response, perfectly suitable for high-frequency industrial occasions. It supports metal and plastic bezel selection, standard IP40 protection and customizable IP65 waterproof version for humid workshops. 690V high insulation voltage and complete AC/DC load parameters meet various industrial power demands. Multiple contact materials optional, mushroom head reaches 1 million mechanical life, long electrical service life. Spiral embedded terminal is easy for wiring, fully compliant with international industrial safety standards, stable and reliable for long-term safety protection.

Applications

• 22mm metal mushroom head maintained emergency stop for industrial control panel
• High-frequency automation production line safety emergency cutoff switch
• CNC machine tools and mechanical equipment dedicated protection button
• Indoor workshop IP40 conventional environment safety control switch
• IP65 customized version for wet and dusty industrial sites

FAQ

1. What is the mounting diameter?
Standard 22mm mounting hole, compatible with most industrial control panel reserved holes.

2. Is waterproof version available?
Standard IP40, support customized IP65 waterproof model for humid environments.

3. What operation modes are supported?
Two-position and three-position, maintained and momentary multiple optional modes.

4. What is the service life?
Mushroom head mechanical life up to 1 million times, AC 500,000 / DC 200,000 times electrical life.

5. What contact materials can I choose?
Optional brass, gold and silver to meet different conductivity requirements.

6. What wire gauge is suitable?
Spiral embedded terminal fits 0.5mm² to 2.5mm² wires.

7. What are the common application scenarios?
Widely used in high-frequency production lines, machine tools, automation equipment, indoor workshops and customized waterproof industrial sites.

The post 22mm Metal Head Mushroom Maintained Emergency Stop Switches appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• Standard 22mm mounting hole for universal industrial panel installation
• Non-illuminated pure mechanical design, stable without light failure
• Metal head design with multiple head types optional
• Transparent high-strength PBT base, clear internal structure visible
• Momentary self-resetting operation type for emergency control
• Rich shell length options to fit different panel thickness
• Default IP40 protection grade, IP65 waterproof version customizable
• Fast flat jump contact structure, short stroke fast response
• Rated insulation voltage up to 690V for high voltage isolation
• Conventional thermal current 10A, boxed type rated 6A
• Complete AC-15 / DC-13 voltage and current load parameters
• Contact optional: Brass, Gold, Silver for different demands
• Mushroom & flat head mechanical life up to 1 million times
• Long electrical life: AC 500,000 / DC 200,000 times
• Spiral embedded terminal, wiring range 0.5mm² ~ 2.5mm²
• Working temperature: -5℃ ~ 40℃ for indoor industrial use
• Complies with IEC60947-5-1 and GB/T 14048.5 standards

                                                                                                    without LED                                                              with LED

Product Attributes

• Lamp: Non Illuminated
• Head Type: Domed, Flat, High Round, Key, Mushroom, Rotary, Square
• Position Mode: Two / Three Position Maintained & Momentary
• Contact Material: Brass , Gold , Silver
• Shell Length: 8mm,9mm,10mm,12mm,13mm,16mm,17mm,17.5mm,18mm

Product Advantages

This 22mm non-illuminated metal head momentary emergency stop switch adopts high-strength transparent PBT base with clear internal view and sturdy structure. Multiple head styles and shell lengths are optional to meet different panel installation needs. Momentary self-resetting design is suitable for instant emergency control. IP40 default protection and optional IP65 waterproof adapt to various environments. With 690V high insulation voltage and complete AC/DC load specifications, optional brass/gold/silver contacts match different conductivity requirements. Long mechanical and electrical service life, spiral embedded wiring is convenient and reliable, fully compliant with industrial safety standards.

Applications

• 22mm non-illuminated momentary metal head industrial emergency stop button
• High-frequency automation production line self-resetting safety switch
• CNC machine tools and mechanical equipment emergency control button
• Indoor workshop IP40 conventional environment safety protection
• IP65 customized version for humid factory and dust workshop

FAQ

1. What is the mounting size?
Standard 22mm mounting hole, fits most industrial control panels.

2. Is this illuminated type?
No, it is non-illuminated pure mechanical momentary emergency switch.

3. What head styles are available?
Domed, Flat, High Round, Key, Mushroom, Rotary, Square multiple options.

4. Can I choose shell length?
Yes, many shell lengths from 8mm to 18mm are optional.

5. What protection levels are available?
Standard IP40, IP65 waterproof version can be customized.

6. What contact materials can I pick?
Optional Brass, Gold, Silver contact for different usage needs.

7. What working scenarios is it suitable for?
Ideal for machine tools, automation lines, indoor workshops and optional waterproof industrial sites.

The post Non Illuminated 22mm Metal Head Momentary Emergency Stop Switch appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.
